Formex Snap Lock Chicken Coops Assembly Instructions Manual page 21

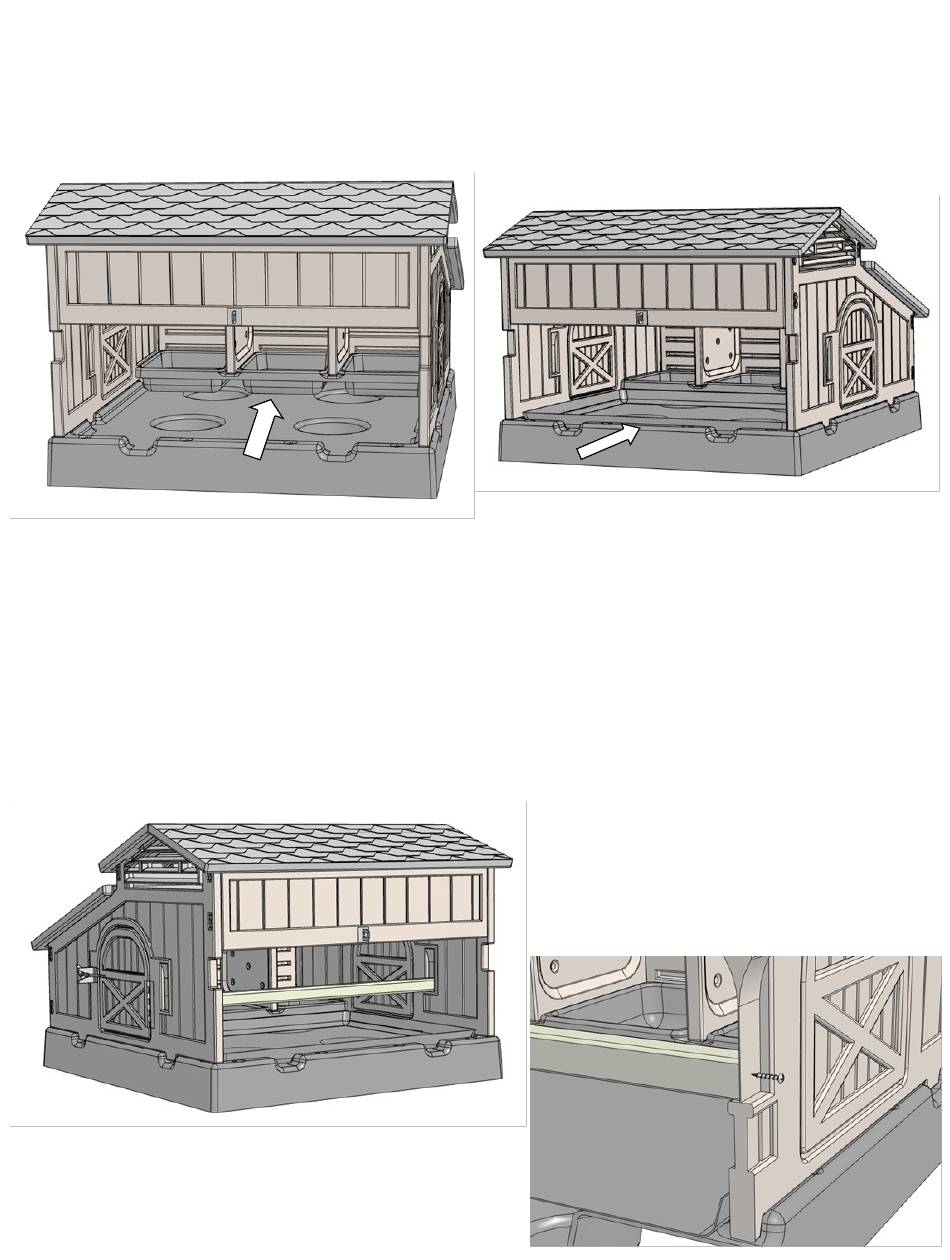

Step 9: Install the Nest Tray by sliding it
underneath the Dividers. (Fig. 9)
Fig. 9
Step 11: Install the Roost by first placing one end into the
recess on a end panel, and then rotate the other end of the
Roost until it is seated into the recess of the opposite panel.
(Fig. 11a)
Fig. 11a
Litter Tray, Nest tray, & Roost
Step 10: Install the Litter Tray by simply
sliding it in. (Fig. 10)
Note: Two extra screws have been included to
provide you with the option of securing each
end of the roost to the end panels. There
should be no need in drilling any holes. Just
drive the screw from the outside of the wall,
through the wall and into the end of the roost
(Fig 11b). Since the walls are made of High
Density Polyethylene, it will seal itself around
the screw preventing any leaks.
Fig. 10
Fig. 11b
