Formex Snap Lock Chicken Coops Assembly Instructions Manual page 18

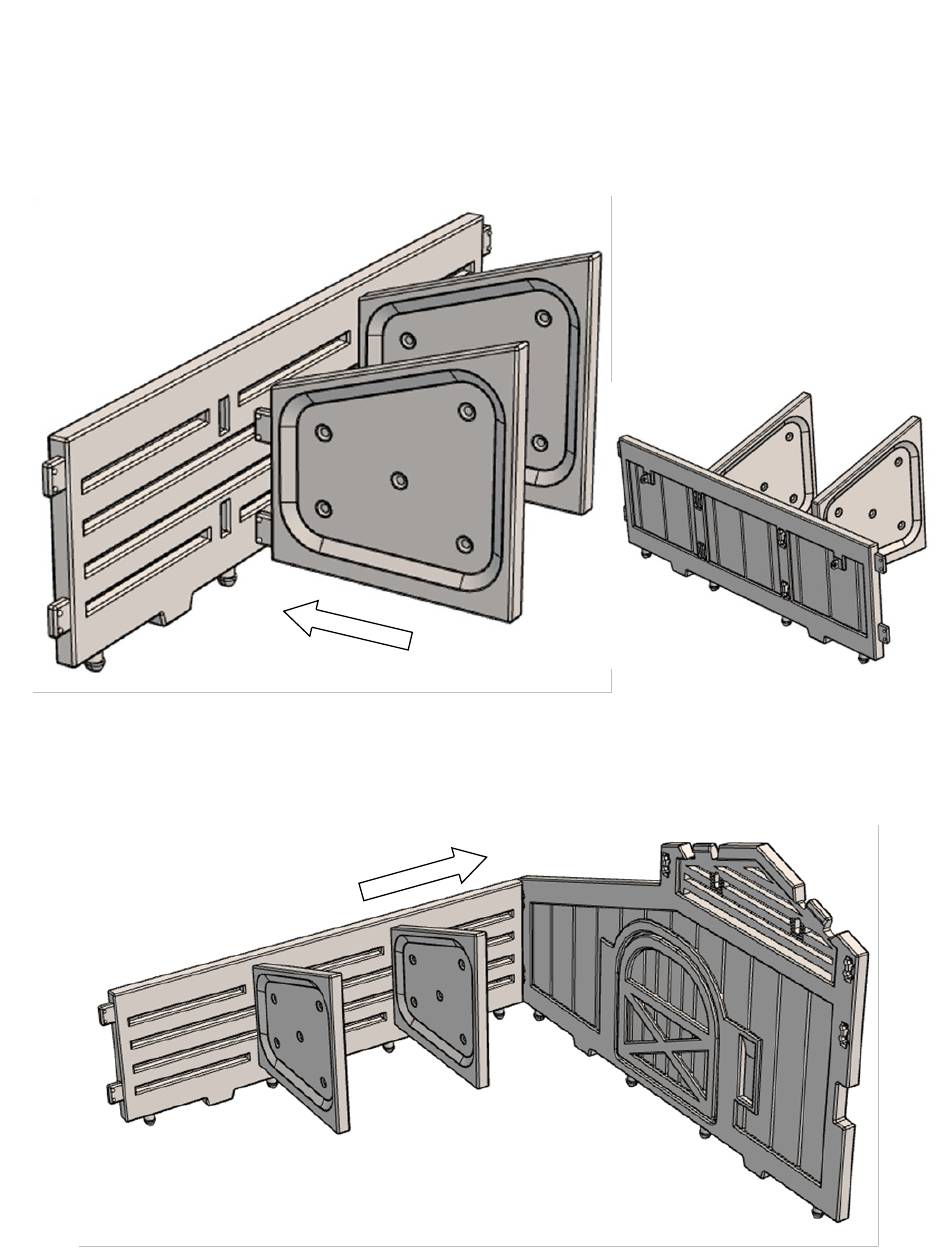

Step 2: There is an "A" marked above the upper tab and a "B" below the lower tab on the Nest Dividers. Align
this with the "A" above the upper slot and the "B" below the lower slot on the back side of Nest Side Wall (Fig.
2a) to insure that the Nest Dividers are not installed upside down. Assemble the two Nest Dividers to the Nest
Side Wall by inserting the tabs on the Nest Dividers into the slots on the back side of the Nest Side Wall.
Fig. 2a
interior side of Nest Side Wall
Step 3: Insert the two tabs on the Nest Side Wall into the two slots on the Back Wall. (Fig. 3)
Note: the Back Wall is the panel with the non-functioning door.
Coop Wall Assembly
A
A
B B
exterior side of Nest Side
Fig. 3
Fig. 2b
