Formex Snap Lock Chicken Coops Assembly Instructions Manual page 11

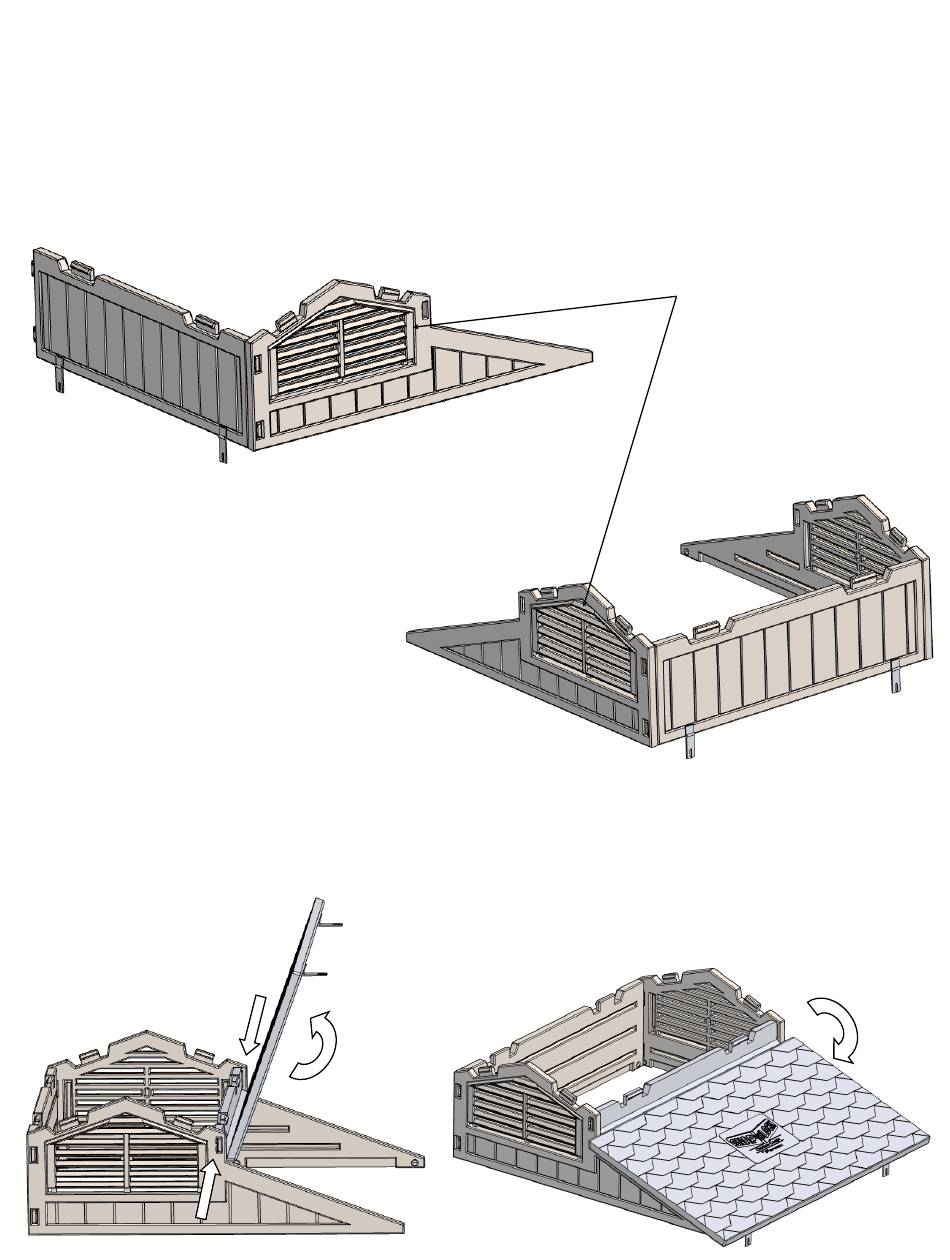

Step 15: Assemble the Front Gable and the Upper Side
Wall by inserting the tabs of the Upper Side Wall into the
slots of the Front Gable. (Fig. 15)
Step 16: Assemble the Back Gable and the
Upper Side Wall by inserting the tabs of the
Upper Side Wall into the slots of the Back Ga-
ble. (Fig. 15)
Step 17: Assemble the Lid Roof by first folding it up at the hinge point, until it has enough clearance to
insert the tab on each end into the slot in the Front Gable and the slot in the Back Gable. (Fig. 17a)
Fig. 17a
Roof Assembly
Fig. 15
Fig. 16
Adjustable vent covers are
pre-mounted to the outside
of the Gables.
Fig. 17b
