Formex Snap Lock Chicken Coops Assembly Instructions Manual page 12

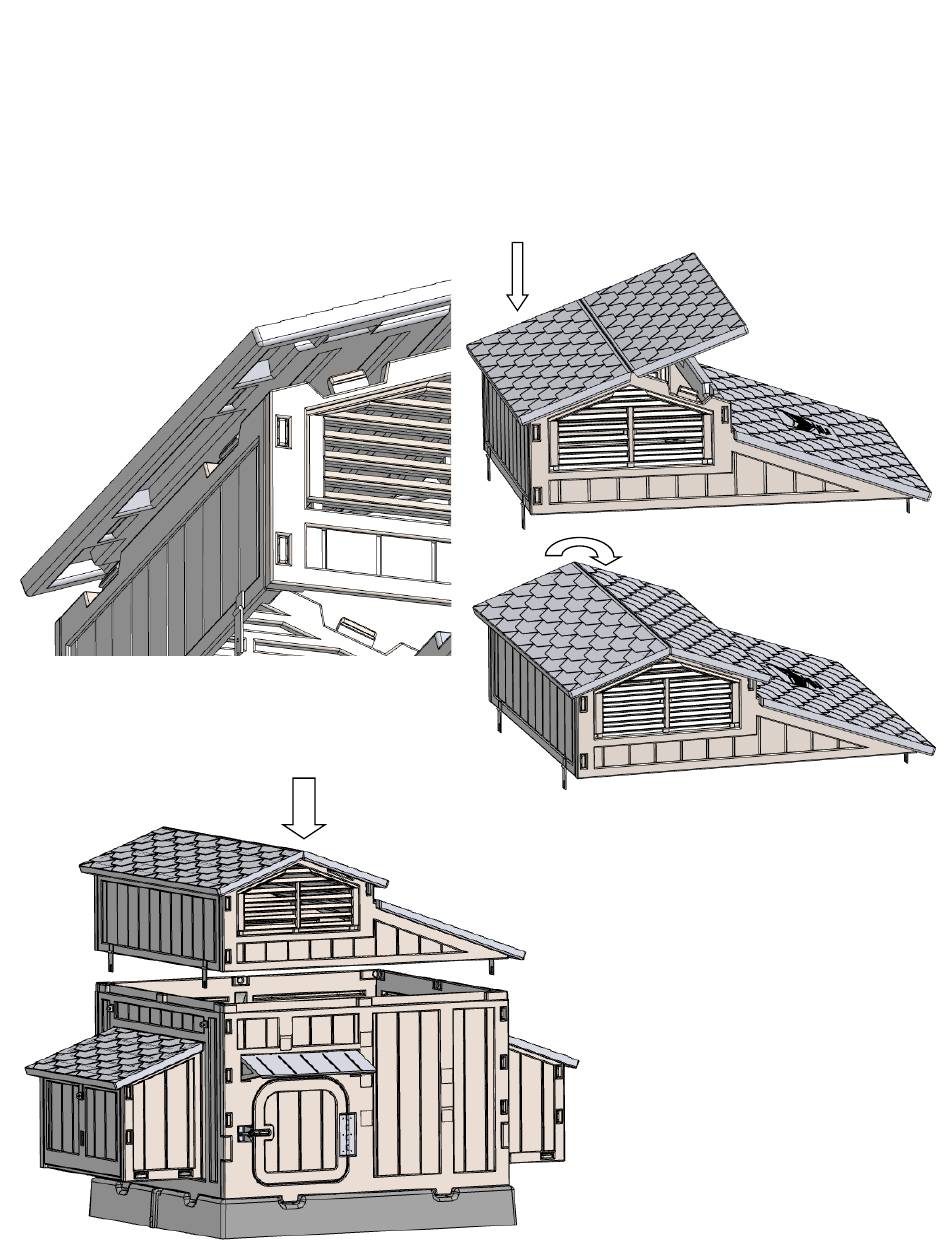

Step 18: Align the tabs located on the top of the Front Gable, Upper Side Wall, and Back Ga-
ble to the slots located underneath the Hip Roof (Fig. 18a). First press down on one side of the Hip
Roof until all the tabs are snapped in (Fig. 18b), and then press down on the other side of the Hip
Roof, folding it down, until the rest of the tabs are snapped in. (Fig. 18c)
Fig. 18a
Roof Assembly
Fig. 19
Step 19: Align the Roof Assembly
with the peek of the Front Gable
over the door of the Front Wall (Fig.
19). Then the entire Roof Assembly
can be snapped down to the rest of
the coop. All though you will have
easy access to the inside of the co-
op by simply lifting the Lid Roof, you
will also be able to remove the en-
tire Roof Assembly for greater ac-
cess.
Fig. 18b
Fig. 18c
