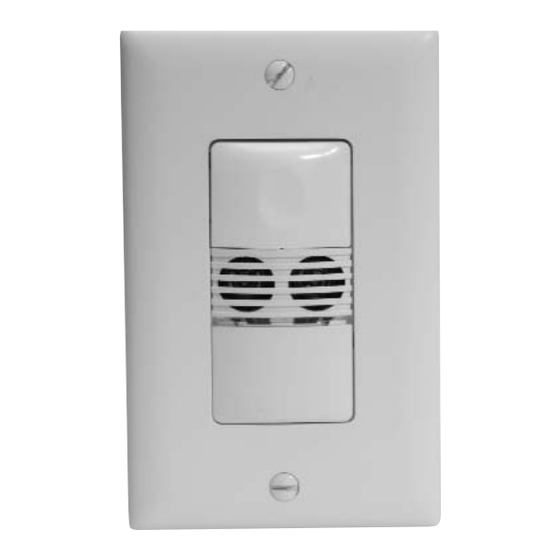

Ultrasonic Low Voltage Wall Switch
Specifications
Voltage . . . . . . . . . . 18-24VDC, 24VAC or Half-wave rectified AC
Current Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35mA
Power Supply . . . . . . . . . . . . . . . . . . Watt Stopper Power Packs
Isolated Relay Rating . . . . . . . . . . . . . . . . . . . . . 1A @30VDC/VAC
Time Delay Adjustment . . . . . . . . . . . . . . . . . . . 5 to 30 minutes
Walk-Through Mode . .3 minutes if no activity after 30 sec.
Test Mode . . . 5 sec. at initial power up or DIP switch reset
Ultrasonic Adjustment . . .Minimum to Maximum (trimpot), Off
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40kHz
Light Level Adjustment . . . . . . . . . . . . . . . . . . . . . . 8fc to 180+fc
Alerts
. . . . . . . . . . . . . . . . . . . . . Selectable Audible & Visible
UW-100-24
Occupancy Sensor
US Patents: 5640113
6617560B2
Santa Clara, CA 95050
800.879.8585
Advertisement
Related Manuals for LEGRAND WattStopper UW-100-24
Summary of Contents for LEGRAND WattStopper UW-100-24
- Page 1 UW-100-24 Ultrasonic Low Voltage Wall Switch Occupancy Sensor Specifications Voltage ..18-24VDC, 24VAC or Half-wave rectified AC Current Consumption ......35mA Power Supply .
- Page 2 UNIT DESCRIPTION AND OPERATION The UW-100-24 Ultrasonic Low Voltage Wall Switch sensor employs 40kHz ultrasonic technology in a single-gang wall switch unit. The UW-100-24 sensor can turn a load ON, and hold it ON as long as the sensor detects occupancy. After no movement is detected for the selected time delay, the lights switch OFF.
- Page 3 SmartSet™ auto The sensor records typical occupancy patterns. Using this history (which is constantly updated), it chooses an adjust time delay optimal time delay from 7 minutes (if the space is and Test Mode usually vacant) up to 30 minutes (if the space gets heavy usage).
- Page 4 COVERAGE PATTERNS Coverage testing has been performed according to the NEMA WD 7 guideline. For best performance, use in spaces not larger than 15’ x 15’. Ultrasonic Sensor The sensor has two ultrasonic transceivers operating at 40kHz. Detection sensitivity can be adjusted using the trimpot under the ON/OFF buttons. Major motion Minor motion Ultrasonic...
- Page 5 INSTALLATION WARNING TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING POWER PACKS OR SENSORS. 1. Install the power pack according to its instructions. 2. Connect the power pack wires to the sensor as follows: RED wire (+24VDC) to the +24V IN terminal on the sensor. BLACK wire (Return) to common (COMM.) terminal on the sensor.
- Page 6 DIP SWITCH SETTINGS Time Audible Delay Not Used Alerts 1 2 3 Time Delay Audible Alert Auto/Test Disabled 5 minutes Enabled Walk-Through ON Mode 10 minutes Visible Alert 15 minutes ON Mode 20 minutes Auto On Walk-Through 25 minutes Manual On Disabled 30 minutes Enabled...
- Page 7 ADJUSTMENTS Sensor Adjustment Remove the wall plate. Remove the button cap by firmly squeezing together the top sides of the button assembly. Gently pull it away from the unit. When the adjustments are completed, replace the button cap by inserting its hinges into the tabs on the main unit and then squeeze the top of the button while pressing it into the unit.
- Page 8 * One ASP-211 Cover Plate for single gang box is included with each switch. Warranty Information Watt Stopper/Legrand warranties its products to be free of defects in materials and workmanship for a period of five years. There are no obligations or...
