Summary of Contents for LEGRAND Radiant Series

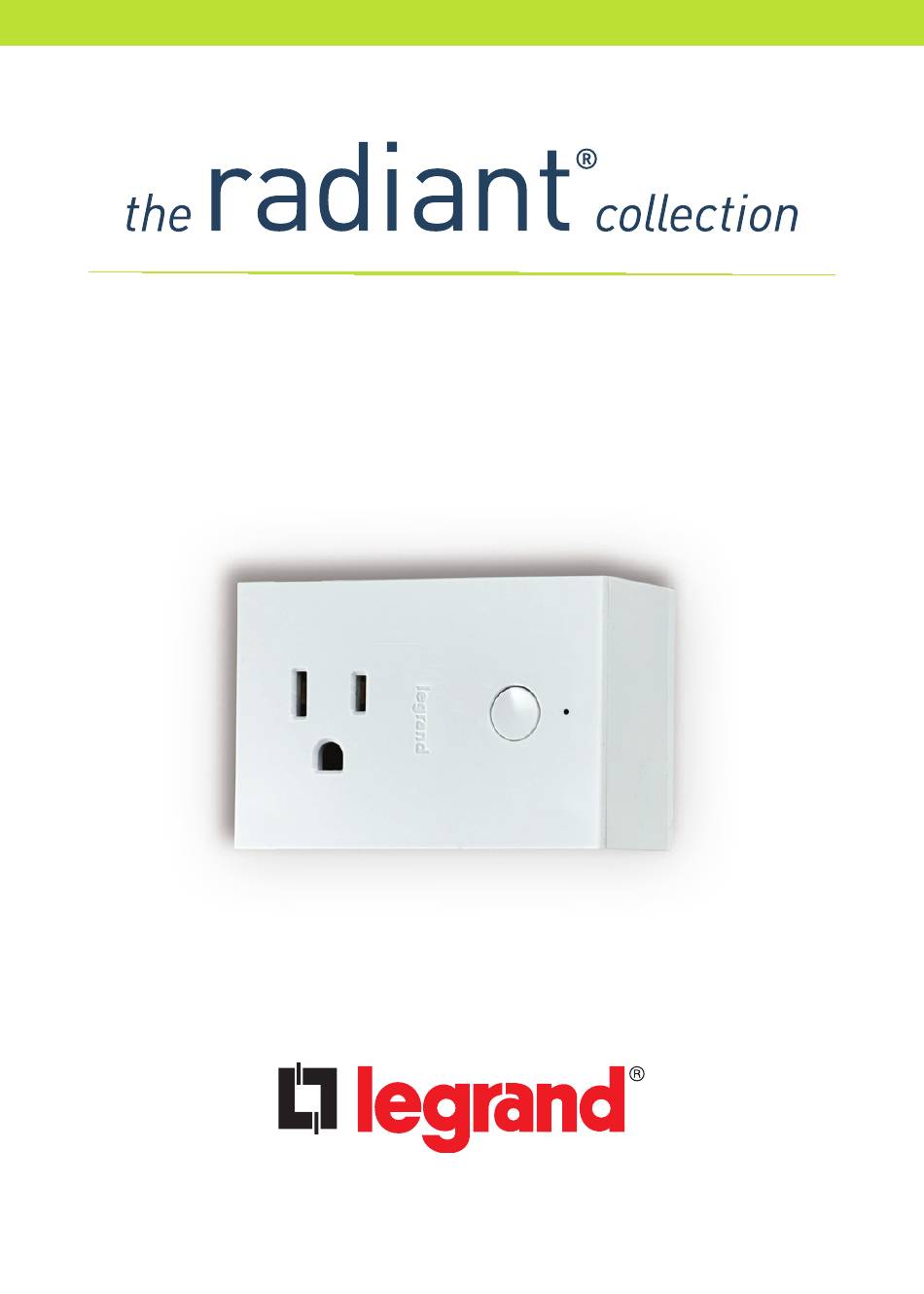

  • Page 1 Smart Plug-In Switch, Wi-Fi...

  • Page 2: Before You Start

    • To reduce the risk of electrical shock, this equipment has a grounding type plug that has a third (grounding) pin. If the plug does not fi t in outlet, contact a qualifi ed electrician to install the proper outlet. Visit www.legrand.us/radiant/smart-lighting/support for support. SCAN TO WATCH THE INSTALLATION VIDEO...

  • Page 3: Installation And Setup

    installation & setup plug in the smart plug-in switch Insert the lamp or device to be controlled into the outlet on the Smart Plug-In Switch.

  • Page 4: Troubleshooting Tip

    With the lamp or device on, press the button on the Legrand Smart Plug-In Switch to turn your device on. Press the button to turn your device off. TROUBLESHOOTING TIP: If the device is not responding to the switch, confirm that the outlet is powered...
  • Page 5 Download and launch the Smart Lights, Wi-Fi app by Legrand. The app is available on the App Store or on Google Play. SCAN TO DOWNLOAD Connect your Smart Plug-In Switch to your home network by following the step by step instructions in the app.

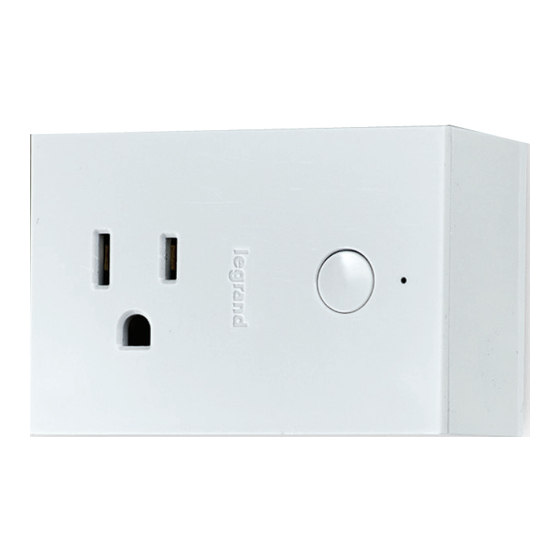

  • Page 6 getting to know your plug-in Item Name Description • Turns the device on or off. Button • To return the switch to factory default, press and hold the button for 30 seconds. • Indicates the current state of the device. LED Locator Light Refer to “LED Locator Light Explanations”...

  • Page 7: Specifications

    Load Rating Resistive 120 VAC, 60 Hz,15 A Incandescent/halogen 1800 W Ballast 15 A standard/electronic Motor 1/2 HP Legrand reserves the right to change specifications without notice.

  • Page 8: Regulatory Information

    regulatory information FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation.
  • Page 9 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the transmitter’s radiating structure(s) and the body of the user or nearby persons. NOTE: Any changes or modifications to this device that are not expressly approved by the manufacturer will void the warranty and the user’s authority to operate...

  • Page 10: Warranty

    1-877-833-3303. A dated sales receipt must be provided for all replacement requests (legible copies are acceptable). http://www.legrand.us Additional warranty details are available at under your device’s product page.
  • Page 11 PHONE: 1-877-833-3303 8:00 a.m. to 8:00 p.m. EST (M-F) EMAIL: smartlighting@legrand.us CHAT: https://www.legrand.us/radiant/smart-lighting.aspx (Click on the icon to open a dialogue box)
  • Page 12 Legrand, North America 50 Boyd Avenue Syracuse, NY 13209 1-877-833-3303 www.legrand.us...
