1. 适用范围与用途/ Application scope
NDM3 系列塑料外壳式断路器(以下简称断路器)，是本公司采用国际先进设计，制造技术研制、开发
的新型断路器之一，按照其额定极限短路分断能力(Icu)的高低，分为 C 型， L 型， M 型，H 型四类。
该产品具有体积小、分断高、飞弧短，抗震动的特点，是陆地及船舶使用的理想产品，其额定工作电
压至 AC 690 额定绝缘电压为 1000V， 适用于交流 50/60Hz 的电路中作不频繁转换和电动机不频繁起动
之用。

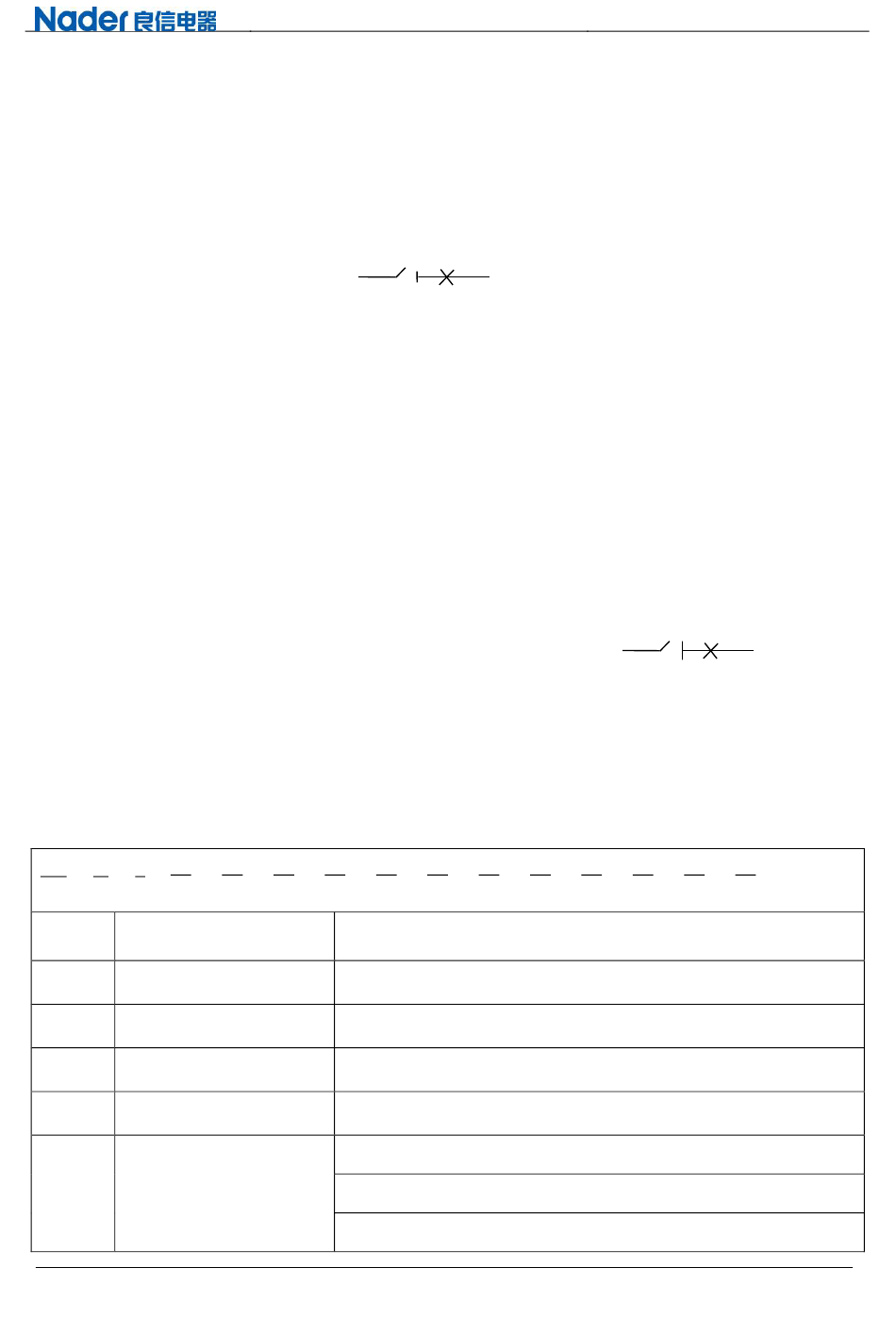

断路器具有隔离功能，相应符号为：
断路器具有过载、短路和欠电压保护功能，能保护线路及电源设备不受损坏。
本断路器可垂直安装(即竖装)，亦可水平安装(即横装)。
本产品符合标准 IEC 60947-2、GB/T14048.2。
NDM3 series of moulded case circuit breakers(Hereinafter referred to as the MCCBs), which is one
of the self-developed new generation MCCB of Nader. According to the level of the rated ultimate short-c
ircuit breaking capacity, the breaker can be classified into four types: Type C (Basic type), Type L (Stand
ard type), Type M (Less high breaking type) and Type H (High breaking type).
The breaker possesses the features such as compactness, high breaking capacity, short arc over a
nd anti-Vibration etc, which is the ideal product for both land and marine use. The rated working voltage i
s AC 690, with the insulation voltage of 1000V, will be suitable for in-frequency switching of circuits and s
tarting of motors in 50/60Hz circuit.
The breaker has disconnecting function.The symbol of isolation is ：
The breaker has functions of overload protection, short circuit protection and undervoltage
protection which can protect circuit and electrical power unit properly.
The breaker can be installed vertically(upright),as well as horizontally(crosswise).
The breaker meets the criterions：IEC 60947-2、GB/T14048.2。
2. 型号说明/ Model and implication
ND M 3
- □
1 2 3 4
序号 SN 序号名称 SN Name
企业代号
1
Enterprise code
产品代号
2
Product code
设计序号
3
Design SN
壳架等级
4
Shell frame level
分断能力级别
5
Breaking level code
地址：上海市浦东新区申江南路 2000 号
文件编号：NDT2920003
□ □ / □ □
5 6 7 8
NDM3
ND:"Nader"牌低压电器 Nader low-voltage apparatus
M:塑料外壳式断路器 Molder case circuit breaker
3
63、100、125、250、400、630、800、1600
C：基本型 type C:Basic type
L：标准型 type L:Standard type
M：较高分断型 M:Less high breaking type
