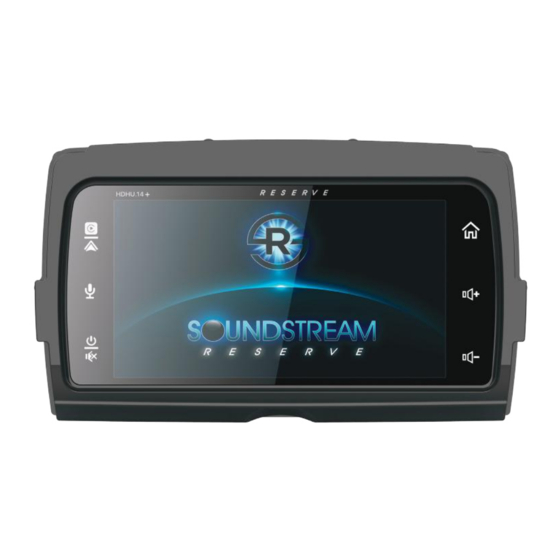

UPGRADE HEADUNIT FOR
2014+ HARLEY DAVIDSON ® MOTORCYCLES
INSTALLATION GUIDE
To print a complete owners manual, visit us
online at motorcycleaudio.com/hdhu.14
- or -
Scan this QR
with your phone's
code
camera to download the complete
owners manual to your phone
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Soundstream RESERVE
Summary of Contents for Soundstream RESERVE
- Page 1 RESERVE UPGRADE HEADUNIT FOR 2014+ HARLEY DAVIDSON ® MOTORCYCLES INSTALLATION GUIDE To print a complete owners manual, visit us online at motorcycleaudio.com/hdhu.14 - or - Scan this QR with your phone’s code camera to download the complete owners manual to your phone...
- Page 2 REMOVAL OF ORIGINAL HEAD UNIT STREET GLIDE To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse/battery cables before proceeding. 1. Remove three outer fairing bolts using a T27 Torx screw driver. The three outer fairing bolts are located below the windshield. Remove the windshield, store it and the screws removed in a safe place for re-installation later.
- Page 3 5. Disconnect electrical connections to the head unit. 5.1) Remove the main wire harness connector (1). To remove the main wire harness, depress the latch lock with a small flathead screwdriver and swivel the latch aside. Pull the wire harness connector to remove from the socket.
- Page 4 REMOVAL OF ORIGINAL HEAD UNIT ROAD GLIDE To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse/battery cables before proceeding. 1. Detach each turn signal / indicator light by 2. Remove four inner fairing bolts using a T25 removing the adjacent allen socket screw, using Torx driver.
- Page 5 8. Disconnect electrical connections to the head unit. 8.1) Remove the main wire harness connector (1). To remove the main wire harness, depress the latch lock with a small flathead screwdriver and swivel the latch aside. Pull the wire harness connector to remove from the socket.
- Page 6 INSTALLATION OF HDHU.14 HEADUNIT To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse/battery cables before proceeding. 1. Install HDHU.14 into the location of the OEM head unit. Secure the chassis to the OEM mounting location with the four bolts removed during the last step of REMOVAL OF ORIGINAL HEAD UNIT section using a 3/16”...
- Page 7 4. If an alternative handlebar integration module other than Scosche is available, skip this step and proceed to step 5. If included, connect the Scosche handlebar integration module to the corresponding 12-pin and 14-pin connectors on the wire harness of HDHU.14. SCOSCHE 5.
- Page 8 Soundstream Technologies. The unit must be returned to Soundstream Technologies, postage pre-paid, with bill of sale or other dated proof of purchase bearing the following information: consumer’s name, telephone number, address, authorized dealer’s name, address, and product description.
