Additional Info - B-K lighting ArtiStar Integral Standard Installation

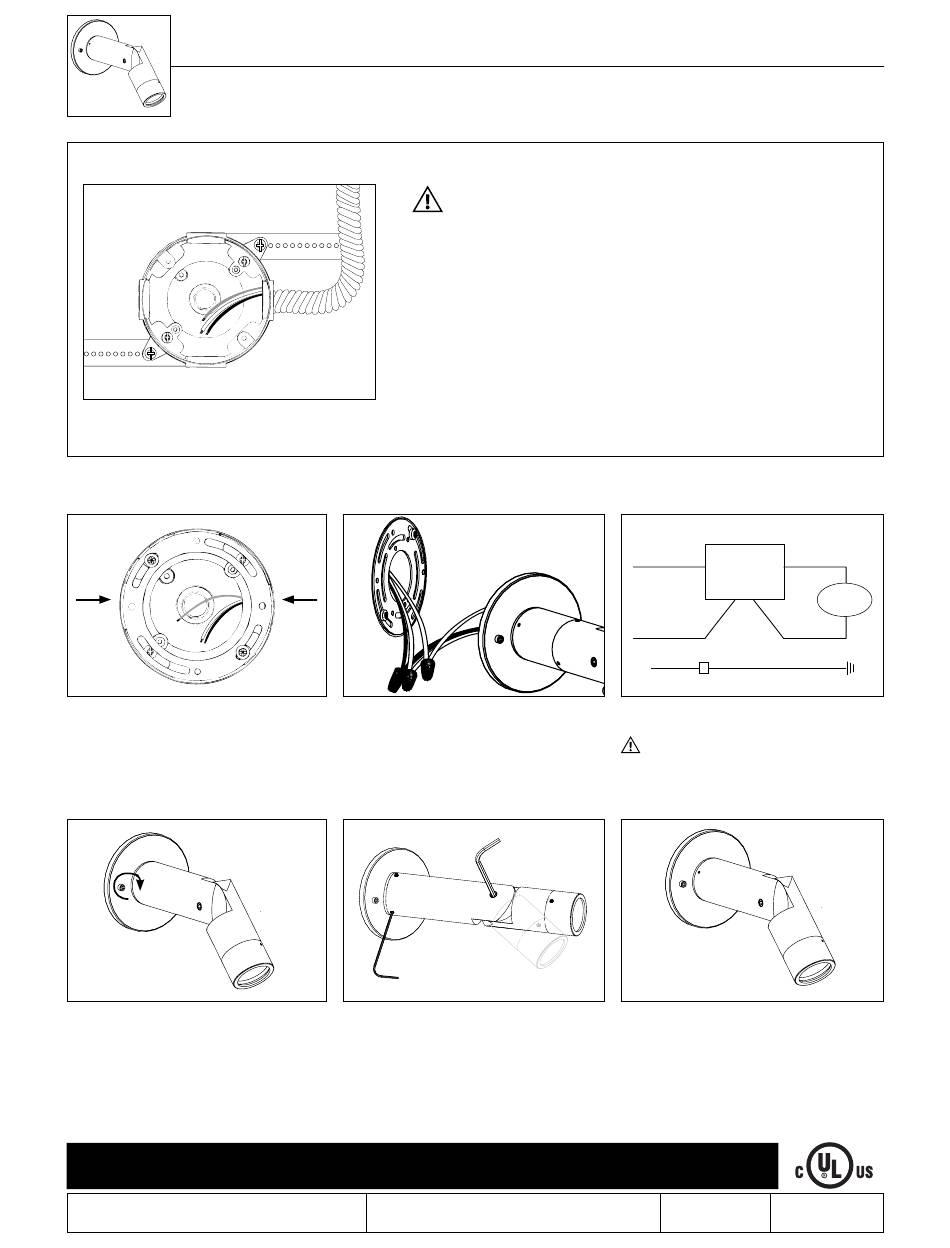

Standard Installation
Phase 1 - Rough In
Installation of Back box
1. Install Conduit (not included) to be used with this
product.
Phase 2 - Finish Installation of Fixture.
1. Install universal mounting ring (supplied with
fixture) using appropriate mounting hardware
(By Others). Align fixture mounting holes to
final mounting position.
3. Use a 1/8" allen wrench to mount fixture with
two (2) #10-24 hex screws to installed back
box. Do not over tighten.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING

Additional Info

• Please follow National and Local electrical codes for your area.
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
• Junction box, universal mounting ring screws, box mounting
hardware and gaskets (not included).
2. Install junction box so that front
face is flush with finished wall or
ceiling.
2. Pull branch circuit wires necessary for
installation (not included). Use waterproof
wire connectors (not included) to connect
driver primary leads to branch circuit wires.
Connect incoming ground to ground wire
provided in fixture body. See wiring diagram.
4. Use a 3/16" allen wrench to slightly loosen
¼"-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Use a 5/64" allen wrench to loosen
the three (3) #8-32 stainless steel set screws.
Rotate to aim fixture to desired horizontal
location.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar Integral
Solid State LED
3. Connect box to conduit and pull wires for
connections (See Wiring Diagram).
HOT
DRIVER
NEUTRAL
GROUND IN HOUSING
GROUND
WIRING DIAGRAM
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
5. Tighten the three (3) #8-32 stainless steel
set screws and 1/4"-28 stainless steel black
oxide socket head cap screw at the knuckle to
secure all aiming positions.
RELEASE DATE
REFERENCE NUMBER
11/03/2021
INS-2121-00
(+)
FIXTURE
(-)
