B-K lighting ArtiStar Remote ES16 Metal Halide Installation Instructions Manual

Installation Instructions
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
#8-32 Stainless
Steel set screw
1/4"-28 Stainless Steel
Black Oxide Socket
Head Cap Screw
#8-32 Stainless
Steel set screw
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN. DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Warning High Voltage
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
NEEDED NEEDED
INSTALLATION: INSTALLATION:
Hot Surface
By Others By Others
AND INSTALLATION INSTRUCTIONS

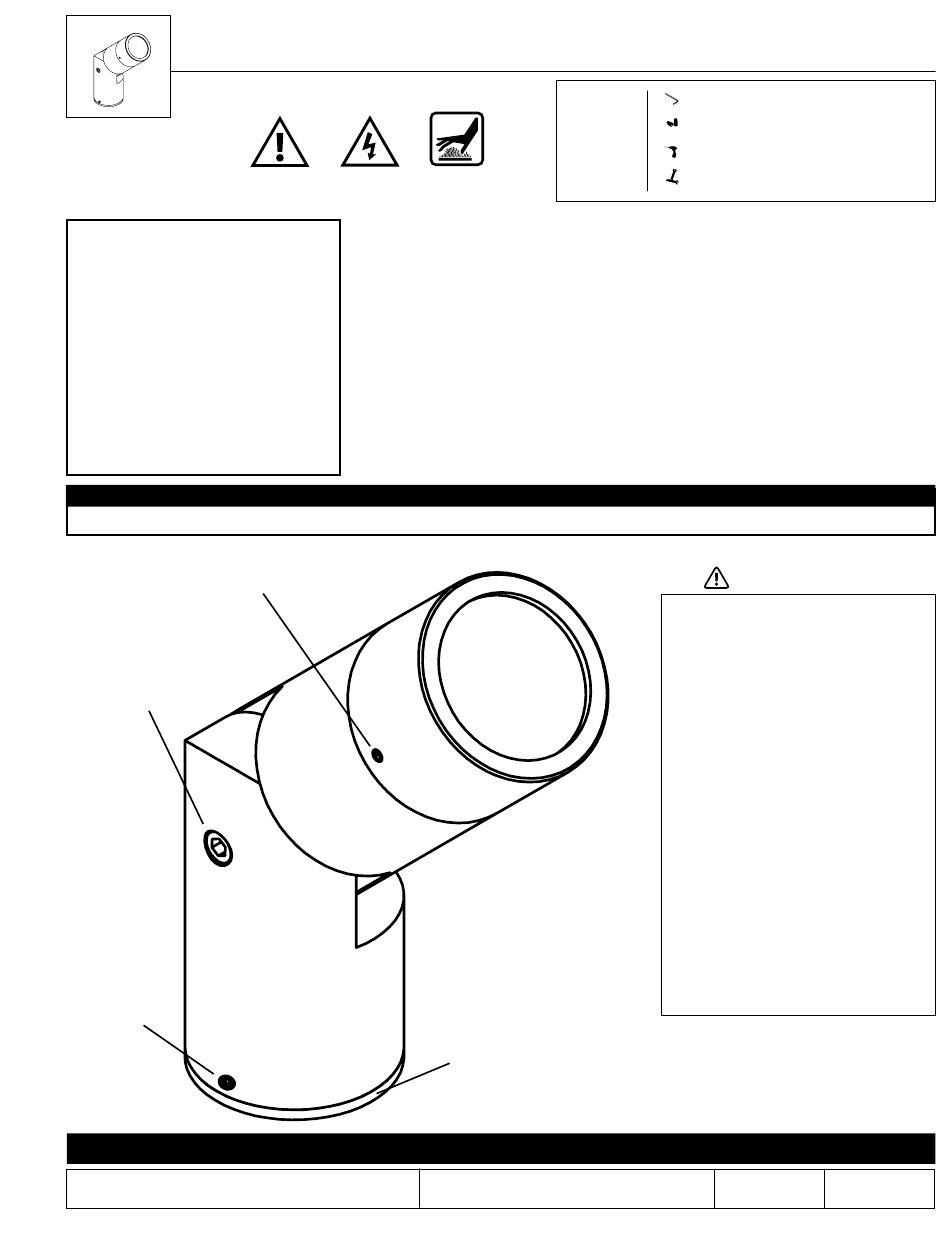

Anchor Base
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com

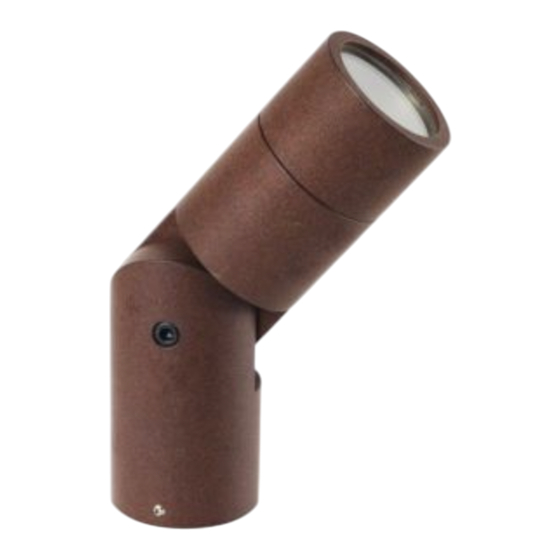

ArtiStar™ Remote
ES16 Metal Halide
3/16" and 5/64" Allen wrench
FOR FOR
Wire connector
Drill bit and Drill
Mounting hardware
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
REMOTE WIRING
Remote ballast installations require inter-connected wiring
between the lamp and ballast (By Others) and have specific
wiring requirements between these components. Ballast
manufacturers regularly recommend the following wiring
details for such installations.
Electronic Ballast
• 1 Foot Minimum and 15 Foot Maximum Remote
Wire Length (Ballast to Lamp Socket).
• Lamp leads must be run in a separate, dedicated
metal conduit.
• Lamp leads must be 18 gauge, wire type SF-2 or
SFF-2.
• Lamp leads must be placed in a minimum 1/2"
internal diameter conduit, pipe, or flexible
conduit.
• The use of metal clad cable assemblies or service
power cords (SJ, SO, etc.) is prohibited.
Magnetic Ballast
• 35 Watt = 15 Foot Minimum and 50 Foot Maximum
Remote Wire Length (Ballast to Lamp Socket).
• >35 Watt = 1 Foot Minimum and 50 Foot
Maximum Remote Wire Length (Ballast to Lamp
Socket).
Please consult the factory through your local B-K Lighting
Sales Representative prior to finalizing any installation detail
utilizing remote ballast wiring.
Failure to comply with specific wiring
requirements will void product warranty.
RELEASED
1-26-16
REFERENCE NUMBER
INS132000
