MIDEA SERVICE MANUAL

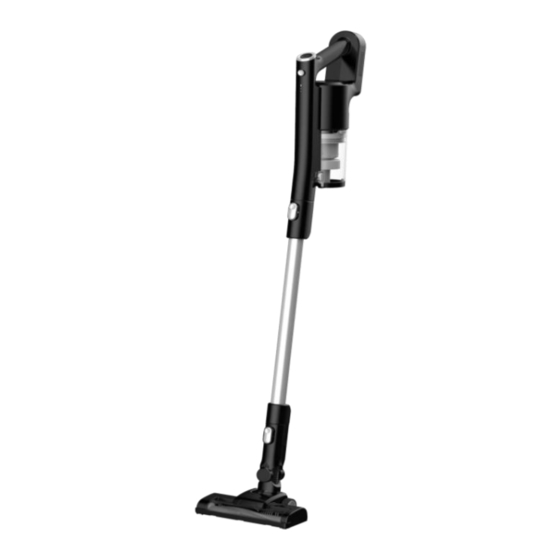

VACUUM CLEANER
MODEL: V19P13A20Q0C
June, 2020
This document is published to be used for after sales service only. The content are subject
to change without prior notice.
In interest of user safety the appliance should be restored to its original condition and only
parts identical to those should be applied.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V19P13A20Q0C and is the answer not in the manual?

Questions and answers

Related Manuals for Midea V19P13A20Q0C

Summary of Contents for Midea V19P13A20Q0C

  • Page 1 MIDEA SERVICE MANUAL VACUUM CLEANER MODEL: V19P13A20Q0C June, 2020 This document is published to be used for after sales service only. The content are subject to change without prior notice. In interest of user safety the appliance should be restored to its original condition and only...

  • Page 2: Table Of Contents

    CONTENTS WARNING ..................................3 PRODUCT ..................................3 1. Model ..................................3 2. Operation Methods ............................4 SERVICE ................................... 5 1. System Diagram..............................5 1.1 Components ............................. 5 2. Maintenance ......................... 错误!未定义书签。 2.1 Tool & Measure Instrument........................6 2.2 Assembly & Disassembly ........................6 2.2.1 Assembly of machine cavity .....................

  • Page 3: Warning

    WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain warning or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

  • Page 4: Operation Methods

    2. Operation Methods 1. Align the extension pole (B) with the top of the floor nozzle (A) and push down until it clicks into place. 2. Align the hand vacuum (E) with the top of the extension pole (G) and push down until it clicks into place.

  • Page 5: Service

    SERVICE 1. System Diagram 1.1 Components * Note: Different models have different components, please refer to the instruction manual for specific models.

  • Page 6: Maintenance

    2. Maintenance 2.1 Tool & Measure Instrument 3. Multi-meter 4. +/- Screw Drivers 2.2 Assembly & Disassembly 2.2.1 Assembly of machine cavity (1) Install the seal ring on the battery pack bracket. (2) Combine the motor assembly and the battery assembly. (3) Install the seal ring on the...
  • Page 8 (5) Insert the all wires to the main PCB and install it inside the main body. (6) Install the back cover of the machine body with four screws.. (7) Install the LED PCB on the guide duct socket, place the wires in right place. (8) Connect the two plastic quick connectors and one metal component to the black wire, then place all wires correctly, install the handle cover to the machine cavity assembly.

  • Page 9: Assembly Of Dust Cup

    2.2.2 Assembly of Dust Cup (1) Install the dust cup to the machine cavity. 2.2.3 Disassembly Disassembly the machine in the contrary way of assemble it. 2.3 Error Issue & Trouble Shooting 2.3.1 Issue 1 : Vacuum Cleaner Cannot Work The power source is abnormal.

  • Page 10: Issue 2: Start Directly After Plugging In

    2.3.2 Issue 2: Start Directly after Plugging in The On/Off button can stop the Stop the vacuum cleaner and vacuum cleaner. restart again. The circuit connection is loosen Tight the connection or change or short circuit. the wire. The PCB cannot work. Replace a new PCB.

  • Page 11: Issue 3: Low Suction Pressure

    2.3.3 Issue 3: Low Suction Pressure The seal ring is installed not Reinstall the seal ring or replace tightly or broken. a new one. There is block in the hose. Clean the hose. There is block in the suction Clean the suction mouth. mouth.

  • Page 12: Issue 4: Smoky Motor

    2.3.4 Issue 4: Smoky Motor The power source is not stable. Change a new power source. The circuit connection is loosen Tight the connection or change or short circuit. the wire. The vacuum cleaner is used to It’s not allowed as instructed in clean liquid or metal materials.

  • Page 13: Issue 5: Dust Leakage

    * Note: All maintenance should be done by professional engineers. ATTACHED FILES LIST 1. Exploded View 2. Spare Parts List 3. Wiring Diagram * Note: The manual may update without prior notice. Please download the latest version on website: https://tsp.midea.com.
