THORLABS PDA10CS User Manual page 10

InGaAs Switchable Gain Detector
Detector
Active Area
Wavelength Range
Peak Wavelength
Peak Response
Amplifier GBP
Output Impedance
Max Ouput Current
Load Impedance
Gain Adjustment Range
Gain Steps
Output Voltage
On/Off Switch
Gain Switch
Output
Package Size
PD Surface Depth
Weight, Detector Only
Accessories
Operating Temp
Storage Temp
AC Power Supply
Input Power
3 If using a CW light source on 0 dB gain setting, maximum output voltage is 2.5 V.
4
If using a CW light source on 0 dB gain setting, maximum output voltage is 5 V.
5
Although the power supply is rated for 31 W the PDA10CS actual usage is <5 W over
the full operating range.
Page 8

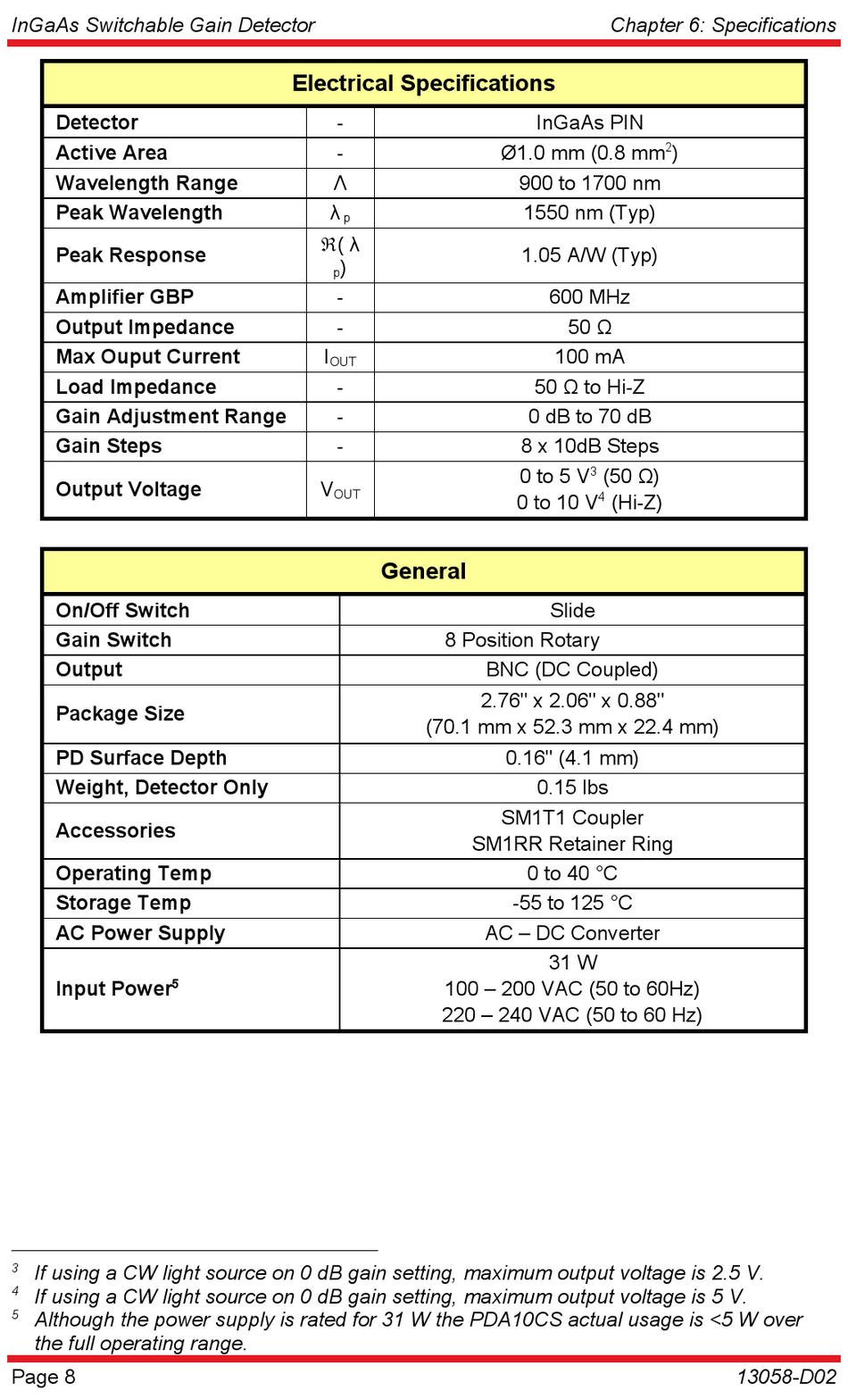

Electrical Specifications
λ
( λ
I
OUT
V
5
-
-
Λ
p
)
p
-
-
-
-
-
OUT
General
8 Position Rotary
BNC (DC Coupled)
2.76" x 2.06" x 0.88"
(70.1 mm x 52.3 mm x 22.4 mm)
SM1RR Retainer Ring
AC – DC Converter
100 – 200 VAC (50 to 60Hz)
220 – 240 VAC (50 to 60 Hz)
Chapter 6: Specifications
InGaAs PIN
Ø1.0 mm (0.8 mm
900 to 1700 nm
1550 nm (Typ)
1.05 A/W (Typ)
600 MHz
50 Ω
100 mA
50 Ω to Hi-Z
0 dB to 70 dB
8 x 10dB Steps
3
0 to 5 V (50 Ω)
4
0 to 10 V (Hi-Z)
Slide
0.16" (4.1 mm)
0.15 lbs
SM1T1 Coupler
0 to 40 °C
-55 to 125 °C
31 W
2
)
13058-D02
