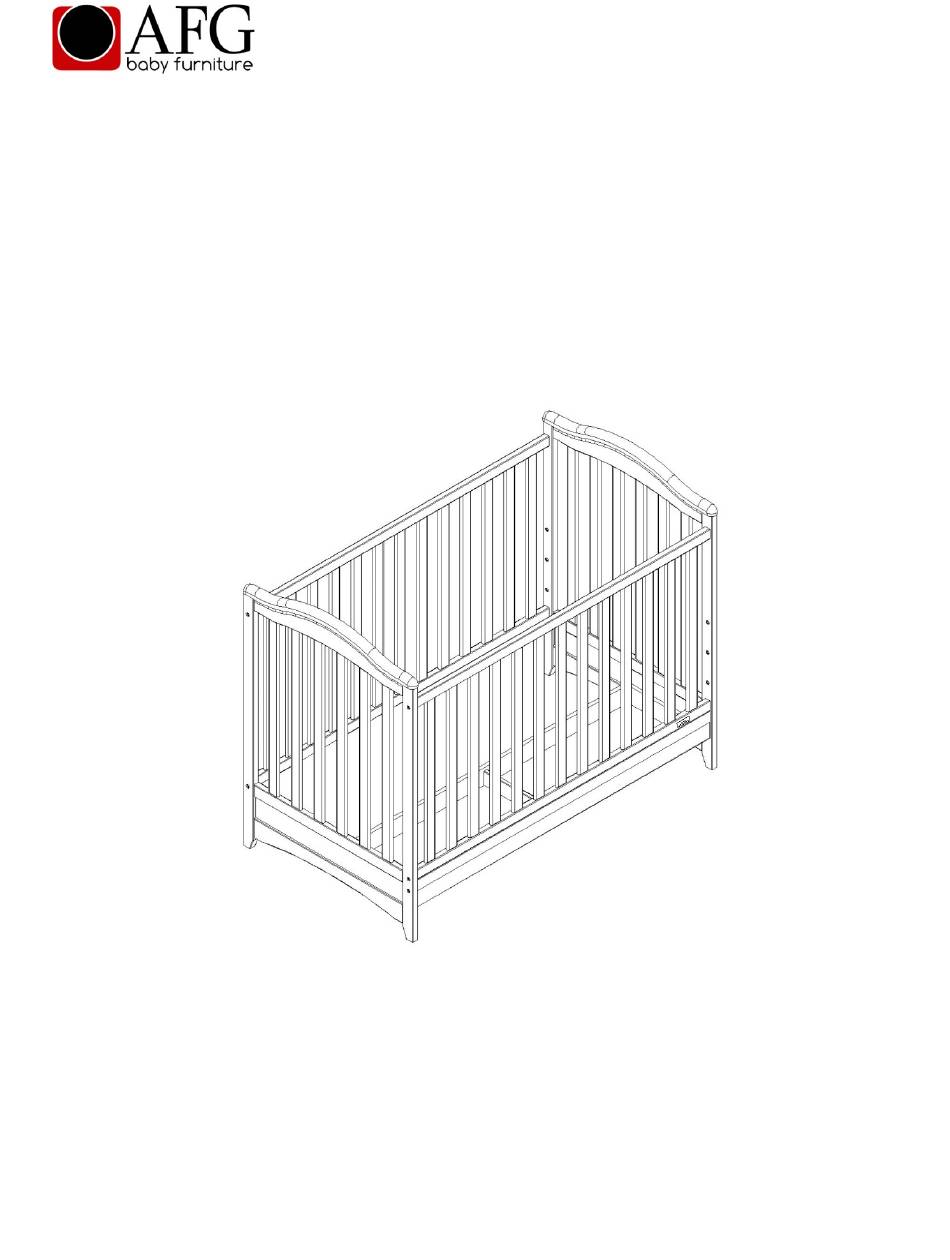

Model No.: G611/612
PO #:
Serial #:

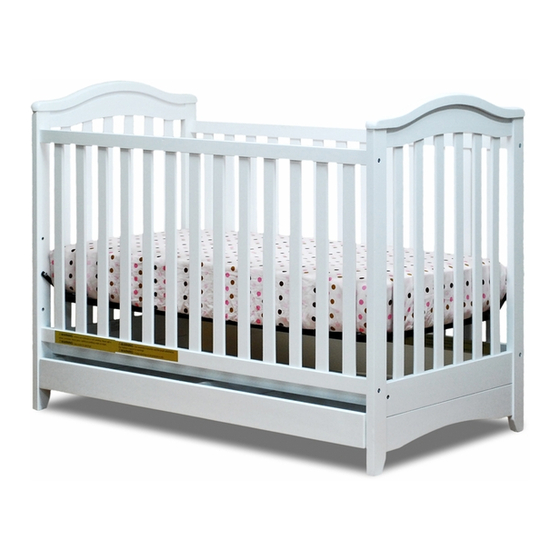

3-in-1 Convertible Classic Baby Crib
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, contact us. DO NOT return product parts
to the store from where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFG G611
Summary of Contents for AFG G611
- Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, contact us. DO NOT return product parts to the store from where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
- Page 2 Do not suspend strings over a crib or attach strings to toys. To help prevent strangulation, tighten all fasteners. A child can trap parts of the body or clothing on loose • fasteners. 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
-
Page 3: Fall Hazard
Securely tighten loose bolts and other fasteners.DO NOT use crib if any parts are missing, damaged or broken. Contact (AFG International Products Inc) for replacement parts and instructional literature if needed. DO NOT substitute parts. - Page 4 G611, 612 Parts Identification Sheet DO NOT assemble crib if parts are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Headboard B. Footboard C. Back Stationary Side Panel...
-
Page 5: Phillips Screwdriver
G611, 612 Hardware Identification Sheet DO NOT assemble crib if parts are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 * 60mm (10 pcs) 2. - Page 6 Drawer Right Side Panel (1 pc) Front Stationary Side Panel (1 pc) Drawer Back Panel (1 pc) Stabilizer Bar (1 pc) Drawer Divider (1 pc) Mattress Support (1 pc) Drawer Bottom Panel (2 pcs) 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 7 Attach Drawer Left Side Panel (H), Drawer Right Side Panel (I) and Drawer Divider (K) to Drawer Back Panel (J) by using 6 Screws (#5). Tighten firmly with Phillips screwdriver. STEP 2: Slide Drawer Bottom Panels (L) into the grooves. 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 8 Attach Drawer Front Panel (G) to Drawer Left Side Panel (H), Drawer Right Side Panel (I) and Drawer Divider (K) by using 6 Screws (#5). Tighten firmly with Phillips screwdriver. Drawer Complete 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 9 Back Stationary Side Panel and inserting 4 Barrel Nuts (#4) from underside of each corner of the Back Stationary Side Panel before securing 4 Bolts (#1). Attach all parts loosely together, but do not tighten yet. 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 10 Attach all parts loosely together, but do not tighten yet. WARNING: Make sure that the warning envelope on the mattress support frame is facing up. Check components periodically, make sure hinges are tightened properly and securely. 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 11 Attach Stabilizer Bar (E) to Headboard (A) and Footboard (B) , inserting 2 dowels(#7) and inserting 2 Barrel Nuts (#4) into Stabilizer Bar before securing 2 Bolts (#1). Tighten all screws firmly with Wrench (#3). 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 12 STEP 5: Evenly slide the drawer along the rails beneath the crib. Complete 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 13 G611, 612 Day Bed Assembly Sheet *Mattress Support Assembly must be in the lowest position before installing guardrail. a. Loosen the Front Stationary Side Panel (D) bolts to detach the Front Stationary Side Panel (D). 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 14 *Mattress Support Assembly must be in the lowest position before installing guardrail. a. Attach Guardrail (M) to Stabilizer Bar by using 2 Bolts (#1), label facing outside, and Headboard (A) by using 1 Bolt (#6) and 1 Bolt (#1). 2015 AFG Baby Furniture G611, 612 Assembly Sheet ©...
- Page 15 DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
