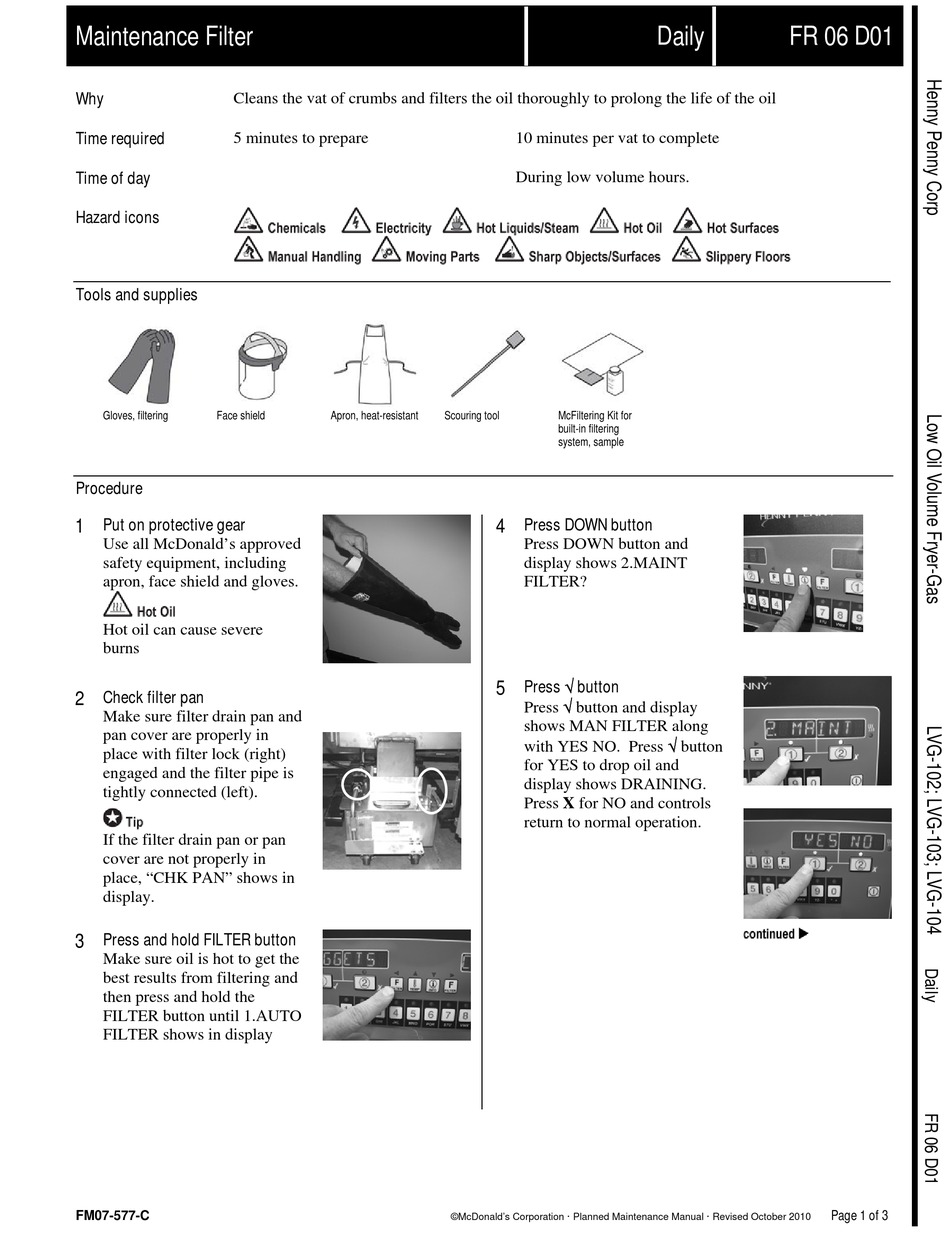

Henny Penny LOV LVG-100 Series Maintenance

Maintenance Filter
Why
Cleans the vat of crumbs and filters the oil thoroughly to prolong the life of the oil
Time required
5 minutes to prepare
Time of day
Hazard icons
Tools and supplies
Gloves, filtering Face shield
Procedure
1
Put on protective gear
Use all McDonald's approved
safety equipment, including
apron, face shield and gloves.
Hot oil can cause severe
burns
2
Check filter pan
Make sure filter drain pan and
pan cover are properly in
place with filter lock (right)
engaged and the filter pipe is
tightly connected (left).
If the filter drain pan or pan
cover are not properly in
place, "CHK PAN" shows in
display.
3
Press and hold FILTER button
Make sure oil is hot to get the
best results from filtering and
then press and hold the
FILTER button until 1.AUTO
FILTER shows in display
FM07-577-C
Apron, heat-resistant Scouring tool
4
5
©McDonald's Corporation · Planned Maintenance Manual · Revised October 2010
Daily
10 minutes per vat to complete
During low volume hours.
McFiltering Kit for
built-in filtering
system, sample
Press DOWN button
Press DOWN button and
display shows 2.MAINT
FILTER?
Press  button
Press  button and display
shows MAN FILTER along
with YES NO. Press  button
for YES to drop oil and
display shows DRAINING.
Press X for NO and controls
return to normal operation.
FR 06 D01
Page 1 of 3
