Summary of Contents for American Eagle 70P

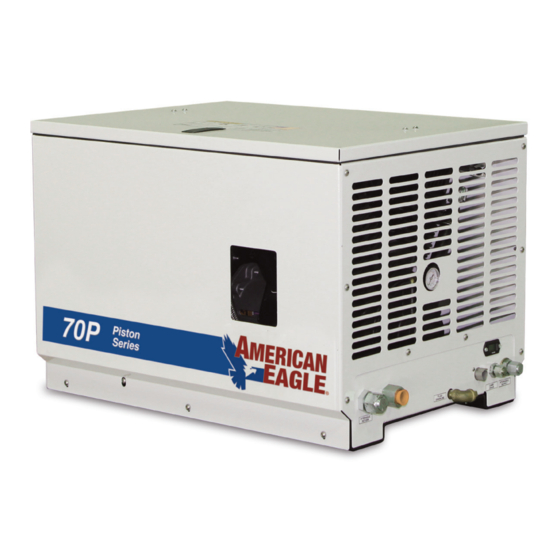

- Page 1 Model 70P Single-Stage Piston ® Compressor Manual Specifications • Installation • Assembly American Eagle 740 North State Street PO Box 169 Garner, IA 50438 800-392-3015 Subject to Change without Notification. Rev 1 www.americaneagleacc.com © 2019 American Eagle PN 92626...
- Page 2 H YDRA U LIC FLO W ( GP M) H Y DRAUL I C P R E SS URE (PS I ) CO MP RESS OR SPE ED ( RPM ) MADE IN THE U.S.A. BY AMERICAN EAGLE. PN 54490 Page ii | American Eagle 70P Compressor Manual ®...
-
Page 3: Table Of Contents
Typical Hydraulic Circuit for Tandem (Two Part) Pump ..............8 Typical Hydraulic Circuit for Compressor with Auxiliary Cooler ............9 Chapter 3 - Assembly Drawings ......................11 70P Case Assembly - PN 70738 ......................11 70P Assembly Drawing - PN 70734...................... 12 SUH-132 Compressor Assembly ......................14 Crankcase Group (Straight Shaft) ...................... -
Page 4: Introduction
This manual is not binding. American Eagle reserves the right to change, at any time, any or all of the items, components, and parts deemed necessary for product improvement or commercial/production purposes. -
Page 5: Chapter 1 - Specifications
21.88" Electrical 12V DC Crankcase Oil Capacity 2 Quarts Cooler Fan 1200 CFM, 12 Volt (Pull) Drive Type Direct Driven NOTICE Duty cycle on Piston Compressors is 50:50 over 10 minutes. American Eagle 70P Compressor Manual | Page 1 ®... - Page 6 This page intentionally left blank. Page 2 | American Eagle 70P Compressor Manual ®...
-
Page 7: Chapter 2 - Installation
CPRSR RELAY (12V CONTROL INPUT) * CUSTOMER ADDED WIRING MUST MATCH OR YEL 14GA SPEED CTRL EXCEED PIGTAIL WIRE SIZE FOR POWER (12V CONTROL OUTPUT) SUPPLY AND GROUND CIRCUIT BLK 12GA GROUND American Eagle 70P Compressor Manual | Page 3 ®... -
Page 8: 70P Electrical Schematic
12V power supply. The yellow wire is required from the compressor when connecting the speed control into the system. W/ 15AMP ATO FUSE Page 4 | American Eagle 70P Compressor Manual ®... -
Page 9: Hydraulic System
The airline is routed using a ¾” 200 psi air/steam hose. This delivery line should be free from all obstructions. Note: There should be no check valve installed between the compressor and the air tank (One is already included in the compressor package). American Eagle recommends the installation of a ten-gallon air tank (minimum) to maintain proper operation of the air compressor. -
Page 10: Compressor Pressure Switch
2. After kick out pressure is set, adjust the kick on screw setting to 115 psi minimum/120 psi maximum. 3. Cycle compressor to verify correct settings. 4. For questions about this procedure, please contact American Eagle Customer Service at 800-321-3741. Page 6 | American Eagle 70P Compressor Manual ®... -
Page 11: Typical Hydraulic Circuit For Single-Section Pump
PN 30533 Typical Hydraulic Circuit for Single-Section Pump American Eagle 70P Compressor Manual | Page 7 ®... -
Page 12: Typical Hydraulic Circuit For Tandem (Two Part) Pump
Typical Hydraulic Circuit for Tandem (Two Part) Pump Page 8 | American Eagle 70P Compressor Manual ®... -
Page 13: Typical Hydraulic Circuit For Compressor With Auxiliary Cooler
Typical Hydraulic Circuit for Compressor with Auxiliary Cooler HYDRAULIC RESERVOIR FILTER FILTER SCREEN AUXILIARY COOLER SUCTION PORT SINGLE HYDRAULIC PUMP COMPRESSOR RETURN PRESSURE American Eagle 70P Compressor Manual | Page 9 ®... - Page 14 This page intentionally left blank. Page 10 | American Eagle 70P Compressor Manual ®...
-
Page 15: Chapter 3 - Assembly Drawings
Chapter 3 - Assembly Drawings 70P Case Assembly - PN 70738 70747 PANEL FRONT CPRSR SHD132 SHROUD PC WHITE 70741 PANEL BACK CPRSR SHD132 SHROUD PC WHITE 73655 WEATHERSTRIP RIBBED 0.38X0.13X105.00 70740 PANEL SIDE RH SHD132 SHROUD PC WHITE 70739... -
Page 16: Assembly Drawing - Pn 70734
Page 12 | American Eagle 70P Compressor Manual ®... - Page 17 American Eagle 70P Compressor Manual | Page 13 ®...
-
Page 18: Suh-132 Compressor Assembly
C2236 FTG .75-.50 BUSH HEX BLK 4555 ELBOW 1.00 90 DEG BRASS C6235 FTG BRASS ELL 90 DEG A/C D1450 NIPPLE 1.00XCLOSE BRASS 40-100 25450 HO D1273 FTG 1.00-0.75 BUSH RED BRASS Page 14 | American Eagle 70P Compressor Manual ®... -
Page 19: Crankcase Group (Straight Shaft)
22686 HANDLE DIPSTICK OIL CHECK V480 C4841 PLUG 0.38 NPT SQ HD BLK 23050 DIPSTICK BODY (200) C5416 TUBE OIL INTAKE .38ODX3.00 23368 CRANKSHAFT HV60 C6273 SNAP RING PISTON PIN N5000-62 C6275 PORT PLATE GASKET American Eagle 70P Compressor Manual | Page 15 ®... -
Page 20: Cylinder Group
Cylinder Group CYLINDER GROUP Page 16 | American Eagle 70P Compressor Manual ®... -
Page 21: Head Group
Head Group HEAD GROUP American Eagle 70P Compressor Manual | Page 17 ®... -
Page 22: Head Options
Imbedded Filter & 1” Threaded NPT Discharge Threaded NPT Discharge #10381 #11896 Aluminum Water Cooled Aluminum Air Cooled 1” Threaded Inlet & 1” 1” Threaded Inlet & 1” Threaded NPT Discharge Threaded NPT Discharge Page 18 | American Eagle 70P Compressor Manual ®... -
Page 23: Flywheel Options
Flywheel Options 28688 14” B-DUAL GROOVE American Eagle 70P Compressor Manual | Page 19 ®... - Page 24 This page intentionally left blank. Page 20 | American Eagle 70P Compressor Manual ®...
-
Page 25: Chapter 4 - Replacement Parts
Embedded Filter Screen 11902 Embedded Filter Foam - Outer 11901 Embedded Filter Foam - Inner 11900 Embedded Filter Retainer C0087 Synthetic Compressor Oil (Quart) 7259 Synthetic Compressor Oil (Case of 12 Quarts) American Eagle 70P Compressor Manual | Page 21 ®... - Page 26 ® Subject to Change without Notification. © 2019 American Eagle...
