Summary of Contents for American Eagle 30R

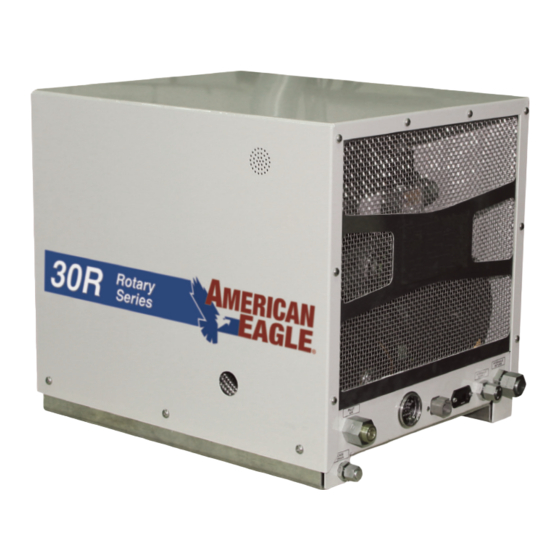

- Page 1 Model 30R Rotary Screw ® Compressor Manual Specifications • Installation • Assembly American Eagle 740 North State Street PO Box 169 Garner, IA 50438 800-392-3015 Subject to Change without Notification. Rev 1 www.americaneagleacc.com © 2019 American Eagle PN 92628...
- Page 2 H YDRA U LIC FLO W ( GP M) H Y DRAUL I C P R E SS URE (PS I ) CO MP RESS OR SPE ED ( RPM ) MADE IN THE U.S.A. BY AMERICAN EAGLE. PN 54490 Page ii | American Eagle 30R Compressor Manual ®...
-
Page 3: Table Of Contents
Typical Hydraulic Circuit for Compressor with Auxiliary Cooler ............9 Chapter 3 - Assembly Drawings ......................11 30R Case Assembly - PN 77492 ......................11 30R Assembly Drawing - PN 77501 ..................... 12 30R Base Assembly - PN 77501 ......................14 Chapter 4 - Replacement Parts ...................... -
Page 4: Introduction
This manual is not binding. American Eagle reserves the right to change, at any time, any or all of the items, components, and parts deemed necessary for product improvement or commercial/production purposes. -
Page 5: Chapter 1 - Specifications
Dimensions (Height) 20.0” Electrical 12 VDC Crankcase Oil Capacity 5 Quarts Plumbing/Fittings Steel W/JIC Fittings Cooler Fan 2024 CFM, 12 Volt Drive Belt Drive Manifold 6061 Aluminum Control Valve 12 VDC Solenoid American Eagle 30R Compressor Manual | Page 1 ®... - Page 6 This page intentionally left blank. Page 2 | American Eagle 30R Compressor Manual ®...
-
Page 7: Chapter 2 - Installation
CPRSR RELAY (12V CONTROL INPUT) * CUSTOMER ADDED WIRING MUST MATCH OR YEL 14GA SPEED CTRL EXCEED PIGTAIL WIRE SIZE FOR POWER (12V CONTROL OUTPUT) SUPPLY AND GROUND CIRCUIT BLK 12GA GROUND American Eagle 30R Compressor Manual | Page 3 ®... -
Page 8: Electrical Schematic
Connect the other switch terminal to a fuse holder and then to a 12- volt power supply. A third wire is required from the air compressor switch when connecting the speed control into the system. PN 76364 Page 4 | American Eagle 30R Compressor Manual ®... -
Page 9: Hydraulic System
A 3/4” minimum low-pressure return line is connected to the oil cooler outlet and is routed to the oil reservoir. American Eagle recommends a sufficient sized reservoir be provided that includes the proper suction and return filters. The cooler on the compressor is designed and sized to cool the air compressor efficiently. -
Page 10: Compressor Pressure Switch
2. After kick out pressure is set, adjust the kick on screw setting to 115 psi minimum/120 psi maximum. 3. Cycle compressor to verify correct settings. 4. For questions about this procedure, please contact American Eagle Customer Service at 800-321-3741. Page 6 | American Eagle 30R Compressor Manual ®... -
Page 11: Typical Hydraulic Circuit For Single-Section Pump
PN 30533 Typical Hydraulic Circuit for Single-Section Pump American Eagle 30R Compressor Manual | Page 7 ®... -
Page 12: Typical Hydraulic Circuit For Tandem (Two Part) Pump
Typical Hydraulic Circuit for Tandem (Two Part) Pump Page 8 | American Eagle 30R Compressor Manual ®... -
Page 13: Typical Hydraulic Circuit For Compressor With Auxiliary Cooler
Typical Hydraulic Circuit for Compressor with Auxiliary Cooler HYDRAULIC RESERVOIR FILTER FILTER SCREEN AUXILIARY COOLER SUCTION PORT SINGLE HYDRAULIC PUMP COMPRESSOR RETURN PRESSURE American Eagle 30R Compressor Manual | Page 9 ®... - Page 14 This page intentionally left blank. Page 10 | American Eagle 30R Compressor Manual ®...
-
Page 15: Chapter 3 - Assembly Drawings
Chapter 3 - Assembly Drawings 30R Case Assembly - PN 77492 PN 77492 ITEM PART DESCRIPTION QTY. 0333 NUT 0.25-20 HHGR5 NYLOC 19592 WASHER 0.25 FLAT NYLON 78183 SHROUD ASM COVER HR-30 PC WHITE 78184 ASM PANEL FRONT 30R SHROUD... -
Page 16: Assembly Drawing - Pn 77501
Page 12 | American Eagle 30R Compressor Manual ®... - Page 17 American Eagle 30R Compressor Manual | Page 13 ®...
-
Page 18: Base Assembly - Pn 77501
30R Base Assembly - PN 77501 PN 77501 ITEM PART DESCRIPTION QTY. 77143 BASE HR-30 CPRSR 78005 Nut Sert AL 0.31-18 grip range 0.150-0.312 94020A364 Nut Sert AL 0.38-16 grip range 0.150-0.312 Page 14 | American Eagle 30R Compressor Manual... -
Page 19: Chapter 4 - Replacement Parts
Pressure Switch 76364 Wire Harness 21650 Oil Temperature Gauge 63902 Air/Oil Filter Components 87148 Air Filter 76369 Oil Filter 76583 Separator Filter 95179 Synthetic Compressor Oil 87985 Service Kit (Includes Items Above) American Eagle 30R Compressor Manual | Page 15 ®... - Page 20 ® Subject to Change without Notification. © 2019 American Eagle...
