American Eagle 30P Manual

American Eagle 30P Manual

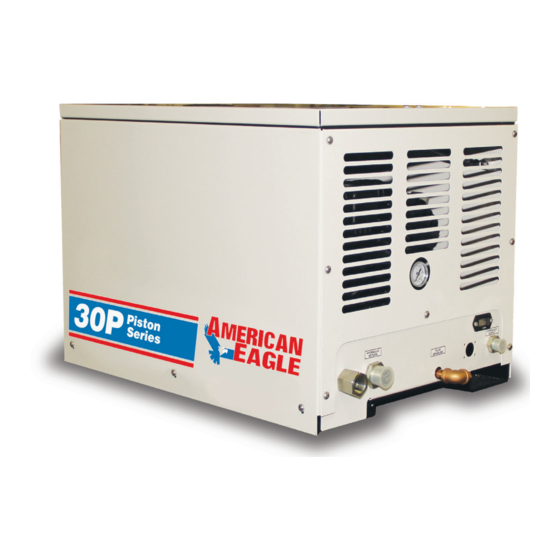

Single-stage piston compressor

Advertisement

Model 30P
Single-Stage Piston
®
Compressor Manual
Specifications • Installation • Assembly
American Eagle
740 North State Street
PO Box 169
Garner, IA 50438
800-392-3015
Subject to Change without Notification.
Rev 1
www.americaneagleacc.com
© 2019 American Eagle
PN 92582

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30P and is the answer not in the manual?

Questions and answers

Harvey Hutton
June 27, 2025

what is the ideal RPM this unit should be running at

Summary of Contents for American Eagle 30P

  • Page 1 Model 30P Single-Stage Piston ® Compressor Manual Specifications • Installation • Assembly American Eagle 740 North State Street PO Box 169 Garner, IA 50438 800-392-3015 Subject to Change without Notification. Rev 1 www.americaneagleacc.com © 2019 American Eagle PN 92582...
  • Page 2 H YDRA U LIC FLO W ( GP M) H Y DRAUL I C P R E SS URE (PS I ) CO MP RESS OR SPE ED ( RPM ) MADE IN THE U.S.A. BY AMERICAN EAGLE. PN 54490 Page ii | American Eagle 30P Compressor Manual ®...
  • Page 3: Table Of Contents

    Typical Hydraulic Circuit for Tandem (Two Part) Pump ..............9 Typical Hydraulic Circuit for Compressor with Auxiliary Cooler ............10 Chapter 3 - Assembly Drawings ......................11 30P Case Assembly - PN 66354 ......................11 30P Assembly Drawing - PN 66338...................... 12 SUH-60 Compressor Assembly ......................14 Crankcase Group (Tapered Shaft) ....................
  • Page 4: Introduction

    This manual is not binding. American Eagle reserves the right to change, at any time, any or all of the items, components, and parts deemed necessary for product improvement or commercial/production purposes.
  • Page 5: Chapter 1 - Specifications

    19.75" Electrical 12V DC Crankcase Oil Capacity 1 Quart Cooler Fan 800 CFM, 12 Volt (Pull) Drive Type Direct Driven NOTICE Duty cycle on Piston Compressors is 50:50 over 10 minutes. American Eagle 30P Compressor Manual | Page 1 ®...
  • Page 6 This page intentionally left blank. Page 2 | American Eagle 30P Compressor Manual ®...
  • Page 7: Chapter 2 - Installation

    Procedure: Assemble rod onto the crankshaft taking care to align the machined surfaces together and tighten cap screws finger tight. Tighten bolts until hand tight and torque to 18 ft-lbs. Check twice the torque reading before final assembly of the cylinders. American Eagle 30P Compressor Manual | Page 3 ®...
  • Page 8: Component Installation, Continued

    CPRSR RELAY (12V CONTROL INPUT) * CUSTOMER ADDED WIRING MUST MATCH OR YEL 14GA SPEED CTRL EXCEED PIGTAIL WIRE SIZE FOR POWER (12V CONTROL OUTPUT) SUPPLY AND GROUND CIRCUIT BLK 12GA GROUND Page 4 | American Eagle 30P Compressor Manual ®...
  • Page 9: 30P Electrical Schematic

    12V power supply. The yellow wire is required from the compressor when connecting the speed control into the system. W/ 15AMP ATO FUSE American Eagle 30P Compressor Manual | Page 5 ®...
  • Page 10: Hydraulic System

    The airline is routed using a ¾” 200 psi air/steam hose. This delivery line should be free from all obstructions. Note: There should be no check valve installed between the compressor and the air tank (One is already included in the compressor package). American Eagle recommends the installation of a ten-gallon air tank (minimum) to maintain proper operation of the air compressor.
  • Page 11: Compressor Pressure Switch

    2. After kick out pressure is set, adjust the kick on screw setting to 115 psi minimum/120 psi maximum. 3. Cycle compressor to verify correct settings. 4. For questions about this procedure, please contact American Eagle Customer Service at 800-321-3741. American Eagle 30P Compressor Manual | Page 7 ®...
  • Page 12: Typical Hydraulic Circuit For Single-Section Pump

    PN 30533 Typical Hydraulic Circuit for Single-Section Pump Page 8 | American Eagle 30P Compressor Manual ®...
  • Page 13: Typical Hydraulic Circuit For Tandem (Two Part) Pump

    Typical Hydraulic Circuit for Tandem (Two Part) Pump American Eagle 30P Compressor Manual | Page 9 ®...
  • Page 14: Typical Hydraulic Circuit For Compressor With Auxiliary Cooler

    Typical Hydraulic Circuit for Compressor with Auxiliary Cooler HYDRAULIC RESERVOIR FILTER FILTER SCREEN AUXILIARY COOLER SUCTION PORT SINGLE HYDRAULIC PUMP COMPRESSOR RETURN PRESSURE Page 10 | American Eagle 30P Compressor Manual ®...
  • Page 15: Chapter 3 - Assembly Drawings

    Chapter 3 - Assembly Drawings 30P Case Assembly - PN 66354 66352 PANEL FRONT CPRSR SHD43/60 SHROUD 66353 PANEL BACK CPRSR SRS40/SHD43/60 SHROUD 67903 PANEL SIDE RH SRS40/SHD43/60 SHROUD 67511 PANEL SIDE LH SRS40/SHD43/60 SHROUD 67904 PANEL LID CPRSR SRS40/SHD43/60 SHROUD...
  • Page 16: Assembly Drawing - Pn 66338

    Page 12 | American Eagle 30P Compressor Manual ®...
  • Page 17 American Eagle 30P Compressor Manual | Page 13 ®...
  • Page 18: Suh-60 Compressor Assembly

    15 C0863 SWITCH PRES COMPRESSOR 16 C5559 FTG ADAPT 1/8ML-1/4FM NPT 1404-2-4 SEE PAGE 22 FOR CLUTCH OPTIONS 19 D0240 FTG ELL 0.13 CPRSN TUBE TO NPT 20 25448 TUBE COPPER 0.25X9.00 SUH-60 Page 14 | American Eagle 30P Compressor Manual ®...
  • Page 19: Crankcase Group (Tapered Shaft)

    SNAP RING PISTON PIN N5000-62 6034 SCREW 0.31-18X1.00 SHC C0059 OIL PUMP TRANSFER BUSHING C6275 PORT PLATE GASKET 22209 ROLL PIN 0.19X.63 C0060 SPRING OIL PUMP C0062 BREATHER BODY 22210 DIPSTICK OIL CHECK V480 American Eagle 30P Compressor Manual | Page 15 ®...
  • Page 20: Crankcase Group (Straight Shaft)

    23047 KEY FLYWHEEL 1/4 C0050 OIL PUMP 5826 BEARING CARRIER CLUTCH PLT V480 50389 WASHER 0.885X1.115X0.064 COPPER C6275 PORT PLATE GASKET C6271 FRONT PL GASKET C0052 PORT PLATE MACHINED 5825 BEARING SEAL V480 Page 16 | American Eagle 30P Compressor Manual ®...
  • Page 21: Cylinder Group

    C6360 CYLINDER V480 FINISHED O/S C0922 CAP SCR 0.31-18X1.00 HHGR5 5827 RING OIL V480/200 FLEX DIVIDER 32931 RING SCRAPER V480/200 H#48638 32930 RING CPRSN V480/200 BARREL H#38347 36368 RING OIL V480/200 RING RAIL American Eagle 30P Compressor Manual | Page 17 ®...
  • Page 22: Head Group

    DRAIN COCK-V480 24103 VALVE PLATE SUB ASM O/S 6000 PLUG 0.75 NPT SQ HD CS BLK C0310 GASKET HEAD 143/230/360/480 C1166 0.44 X 1.00 PULSATION TANK BOLT C0291 O'RING-214 VITON 9009-75 Page 18 | American Eagle 30P Compressor Manual ®...
  • Page 23: Head Options

    Imbedded Filter & 3/4” 3/4” Threaded Inlet & 3/4“ Threaded NPT Discharge Threaded NPT Discharge with Head Unloader Ports with Head Unloader Ports #C1631 Aluminum Water Cooled Imbedded Filter & 3/4” Threaded NPT Discharge American Eagle 30P Compressor Manual | Page 19 ®...
  • Page 24: Optional Head Unloader

    22593 PISTON HEAD UNLOADER CPRSR C0040 WASHER HD BOLT STL 22598 O'RING 2-116 HEAD UNLOADER CPRSR 4 22597 SPRING PLUNGER PIN UNLOADER CPRSR 2 22592 COVER HEAD UNLOADER CPRSR 22594 PIN PLUNGER HEAD UNLOADER CPRSR Page 20 | American Eagle 30P Compressor Manual ®...
  • Page 25: Flywheel Options

    Flywheel Options 22997 12” - B GROOVE 22838 14” - DUAL GROOVE American Eagle 30P Compressor Manual | Page 21 ®...
  • Page 26: Clutch Options

    6” - 8 GROOVE SERPENTINE 8198 5793 6” - 8 GROOVE 6” - 8 GROOVE 24V SERPENTINE 12V SERPENTINE C4775 5774 C4762 7” SINGLE V 6” - 6 GROOVE STRAIGHT BORE 12V SERPENTINE Page 22 | American Eagle 30P Compressor Manual ®...
  • Page 27: Chapter 4 - Replacement Parts

    Embedded Filter Screen C0296 Embedded Filter Foam - Outer C0715 Embedded Filter Foam - Inner C0294 Embedded Filter Retainer C0087 Synthetic Compressor Oil (Quart) 7259 Synthetic Compressor Oil (Case of 12 Quarts) American Eagle 30P Compressor Manual | Page 23 ®...
  • Page 28 ® Subject to Change without Notification. © 2019 American Eagle...
