Summary of Contents for American Eagle SHD-66

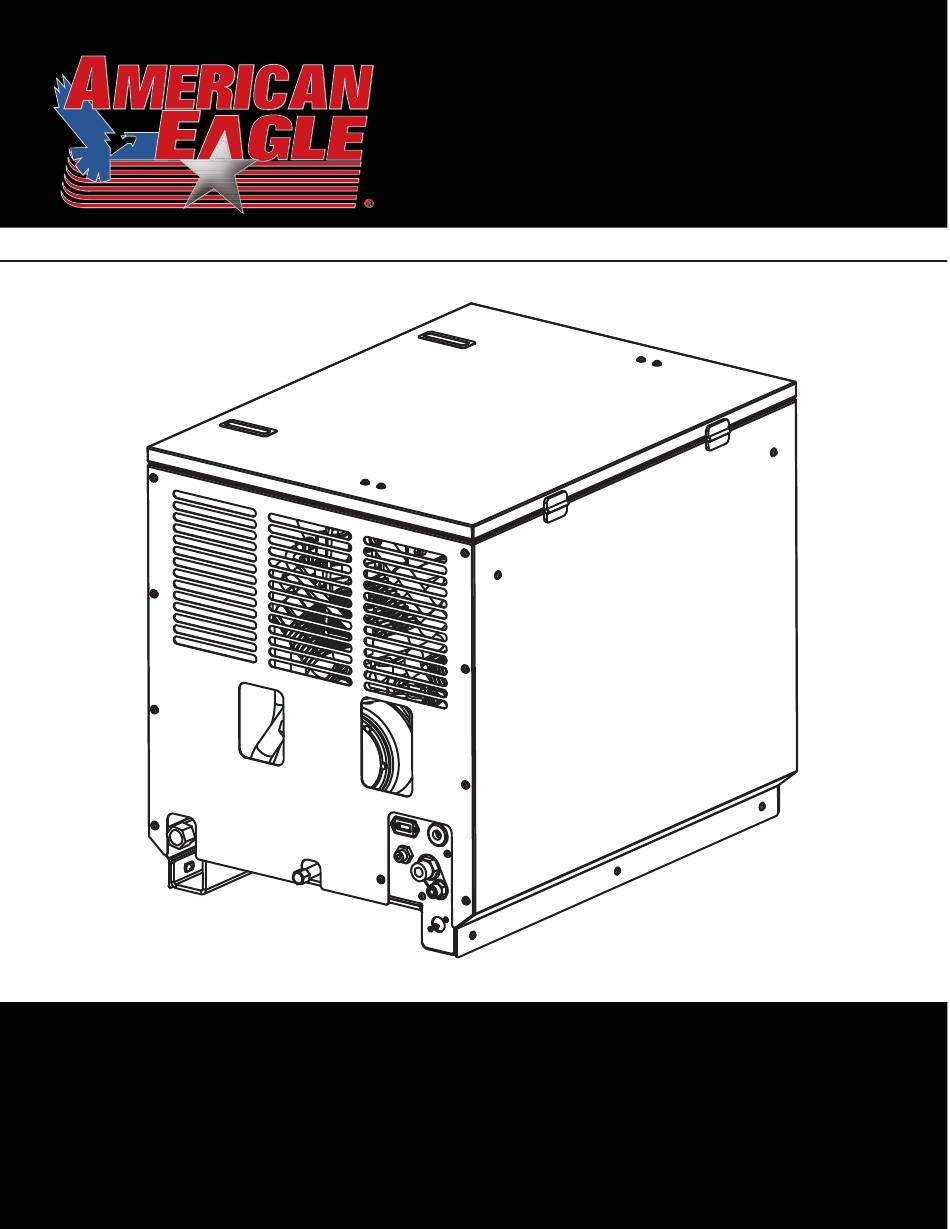

- Page 1 ODEL ’ WNER ANUAL Safety • Operation • Installation • Maintenance American Eagle, Inc. 740 N. State Street PO Box 169 Garner, IA 50438 800-392-3015 Fax: 641-923-9099 www.americaneagleacc.com Subject to Change without Notification. © 2014 American Eagle. Last Revision: 05/28/14...
- Page 2 AE Compressor Manual Revisions AE SHD66/46P Owner’s Manual Date of Revision Section Revised Description of Revision August 2013 All Sections Updated to new style compressor May 2014 Assembly Drawings Updated to new shroud design...
- Page 3 This manual please contact AE Technical Support at 800- is not binding. American Eagle reserves the 321-3741 or email at right to change, at any time, any or all of the service@americaneagleacc.com...
- Page 4 AE SHD66/46P Owner’s Manual...
-
Page 5: Table Of Contents
Table of Contents Table of Contents Chapter 1: Safety ................5 Chapter 2: Specifications ...............7 Chapter 3: Operation...............9 Head Unloading System .............10 Chapter 4: Maintenance ..............11 Chapter 5: Installation..............13 Typical Hydraulic Circuit for Tandum (Two Part) Pump with Multiple Components..........16 Typical Hydraulic Circuit for Single Stage Pump with Multiple Components..........17 Typical Hydraulic Circuit for Compressor ........18 with Auxiliary Cooler ..............18... - Page 6 AE SHD66/46P Owner’s Manual...
-
Page 7: Chapter 1: Safety
Carefully read the operators manual before starting the unit. Failure to adhere to the instructions could result in serious bodily injury or property damage. The SHD-66/46P Hydraulic Air Compressor will all hose connections are tight, both air and provide safe and dependable service if operated hydraulic. - Page 8 AE SHD66/46P Owner’s Manual...
-
Page 9: Chapter 2: Specifications
• Maximum Compressor Speed: 1000 RPM • Dimensions: (w/o reservoir) 33.5”L x 23.5”W x 25.5”H (w/ reservoir) 48.5”L x 23.5”W x 25.5”H • Electrical: 12 VDC • Crankcase Oil Capacity: 4 Quart • Oil Reservoir Capacity: 16 Gallons SHD-66/46P Manual... - Page 10 AE SHD66/46P Owner’s Manual...
-
Page 11: Chapter 3: Operation
Inspect unit for any visible signs of damage. Check the oil level in the compressor with the dipstick on the unit. If oil is needed, use American Eagle synthetic compressor oil (P/N C0087) or an equivalent synthetic oil. Note: There may be oil left in the crankcase from the factory bench test. -
Page 12: Head Unloading System
AE SHD66/46P Owner’s Manual Head Unloading System Intake Valve Hold-Open Mechanism (Route to Air Pilot Valve) Air Pilot Valve Adjustment (See Air Pilot Valve Adjustment Detail) Differential Pressure Adjustment: Proceed with the High Pressure Adjustment: Proceed with the following following while the compressor is running. while the compressor is running. -
Page 13: Chapter 4: Maintenance
The following table is a list of routine maintenance items, including service intervals. Service intervals are listed as hours, days, or weeks, whichever occurs first. American Eagle recommends that these service intervals be followed. Before performing any maintenance function “Lock Out” or “Tag Out”... - Page 14 AE SHD66/46P Owner’s Manual...
-
Page 15: Chapter 5: Installation
Chapter 5: Installation Installation COMPONENT INSTALLATION This section pertains to the installation of the air compressor, PTO, pump and other related items. The instructions are intended as a guide to assist you with particular installation. These instructions will provide only general information. Pump Assembly: Compressor Assembly: The pump assembly may either be installed... - Page 16 Component Installation Continued... AE SHD66/46P Owner’s Manual Pilot Air From Air Tank Hydraulic Return To Tank Case Drain Compressed Air Connect Directly Tank Supply Hydraulic Supply From Pump Electrical Connection Crank Case Drain...
- Page 17 (DO NOT INSTALL A FILTER ON THE CASE DRAIN LINE). American Eagle recommends a sufficient sized reservoir be provided which includes the proper suction and return filters. The cooler on the compressor is designed and sized to cool the air compressor efficiently.
-
Page 18: Typical Hydraulic Circuit For Tandum (Two Part) Pump With Multiple Components
AE SHD66/46P Owner’s Manual Typical Hydraulic Circuit for Single Stage Pump with Multiple Components PN 30533 Typical Hydraulic Circuit for Tandum (Two Part) Pump with Multiple Components PN 30532... -
Page 19: Typical Hydraulic Circuit For Compressor
Installation Typical Hydraulic Circuit for Compressor with Auxiliary Cooler HYDRAULIC RESERVOIR FILTER FILTER SCREEN AUXILIARY COOLER SUCTION PORT SINGLE HYDRAULIC PUMP COMPRESSOR RETURN PRESSURE... - Page 20 AE SHD66/46P Owner’s Manual...
-
Page 21: Chapter 6: Assembly Drawings
Chapter 6: Assembly Drawings Assembly Drawings Shroud Assembly 65875 PANEL SIDE SHD66 SHROUD BH PC WHITE PANEL FRONT SHD66 SHROUD BULKHEAD 69517 PC WHITE 65877 PANEL REAR SHD66 SHROUD PC WHITE 19589 NUT SERT 0.25-20X0.38 OD 19592 WASHER 0.25 FLAT NYLON C6021 CAP SCR 0.25-20X0.75 BTNHD SS PANEL SIDE RH SHD66 SHROUD BH V3 PC... - Page 22 AE SHD66/46P Owner’s Manual...
- Page 23 Assembly Drawings...
-
Page 24: Crankcase, Flywheel, Cylinders, & Centrifugal Unloader
AE SHD66/46P Owner’s Manual Crankcase, Flywheel, Cylinders, & Centrifugal Unloader... -
Page 25: Crankshaft, Rod, & Piston
Assembly Drawings Crankshaft, Rod, & Piston... -
Page 26: Valve, Manifold, & Filter
AE SHD66/46P Owner’s Manual Valve, Manifold, & Filter... -
Page 27: Tubing Assembly
Assembly Drawings Tubing Assembly ITEM PART No. DESCRIPTION 7473 TUBE FITTING 7474 RELEASE VALVE TUBE W/FITTINGS (ITEMS 1&3) 7475 TUBE FITTING 7476 TUBE FITTING 7477 BREATHER TUBE W/FITTINGS (ITEMS 4&6) 7476 TUBE FITTING 7478 TUBE, DISCHARGE D1873 INTERCOOLER TUBE W/FTGS RH D1872 INTERCOOLER TUBE W/FTGS LH 5592... - Page 28 AE SHD66/46P Owner’s Manual...
-
Page 29: Chapter 7: Replacement Parts
Chapter 7: Replacement Parts Replacement Parts Hydraulic Replacement Components Part Number Description 61792 Hydraulic valve 57195 Hydraulic motor C1129 Oil cooler C2029 O-ring #8 face seal D1244 O-ring #12 face seal D1247 O-ring #8 SAE port seal D1249 O-ring #12 SAE port seal C6226 Hydraulic filter head C6227... - Page 30 AE SHD66/46P Owner’s Manual...
-
Page 31: Chapter 8: Troubleshooting
Troubleshooting If symptoms of poor performance develop, the following chart can be used as a guide to investigate and correct the problem. When diagnosing faults in operations of the air compressor, always check that the hydraulic power source is supplying the correct hydraulic flow and pressure that is listed in the compressor specification section of this manual. - Page 32 AE SHD66/46P Owner’s Manual Problem Possible Cause Solution Compressor will not shut Air line or air hose leaks. Tighten air lines or hose connections. down: Misadjustment of pilot valve. Adjust valve per manual specifications. Pilot valve leaking air Clean or replace pilot valve. Centrifugal unloader valve is leaking.
- Page 34 4-91+)5 )/3- >)99)5;: 796,<+;: ,-:1/5-, )5, 4)5<.)+;<9-, *@ ";-33)9 ;6 *- .9-- .964 ,-.-+;: 15 4);-91)3 )5, >6924)5:017 <5,-9 7967-9 <:- )5, 4)15;-5)5+- 96,<+;: 4<:; *- 15:;)33-, )5, 67-9);-, 15 )++69,)5+- >1;0 ";-33)9B: >91;;-5 15:;9<+;165: )5, +)7)+1;1-: #0- >)99)5;@ 7-916, :0)33 +6=-9 ;0- .6336>15/ #>-3=- 465;0 >)99)5;@ 65 7)9;: )5,...
