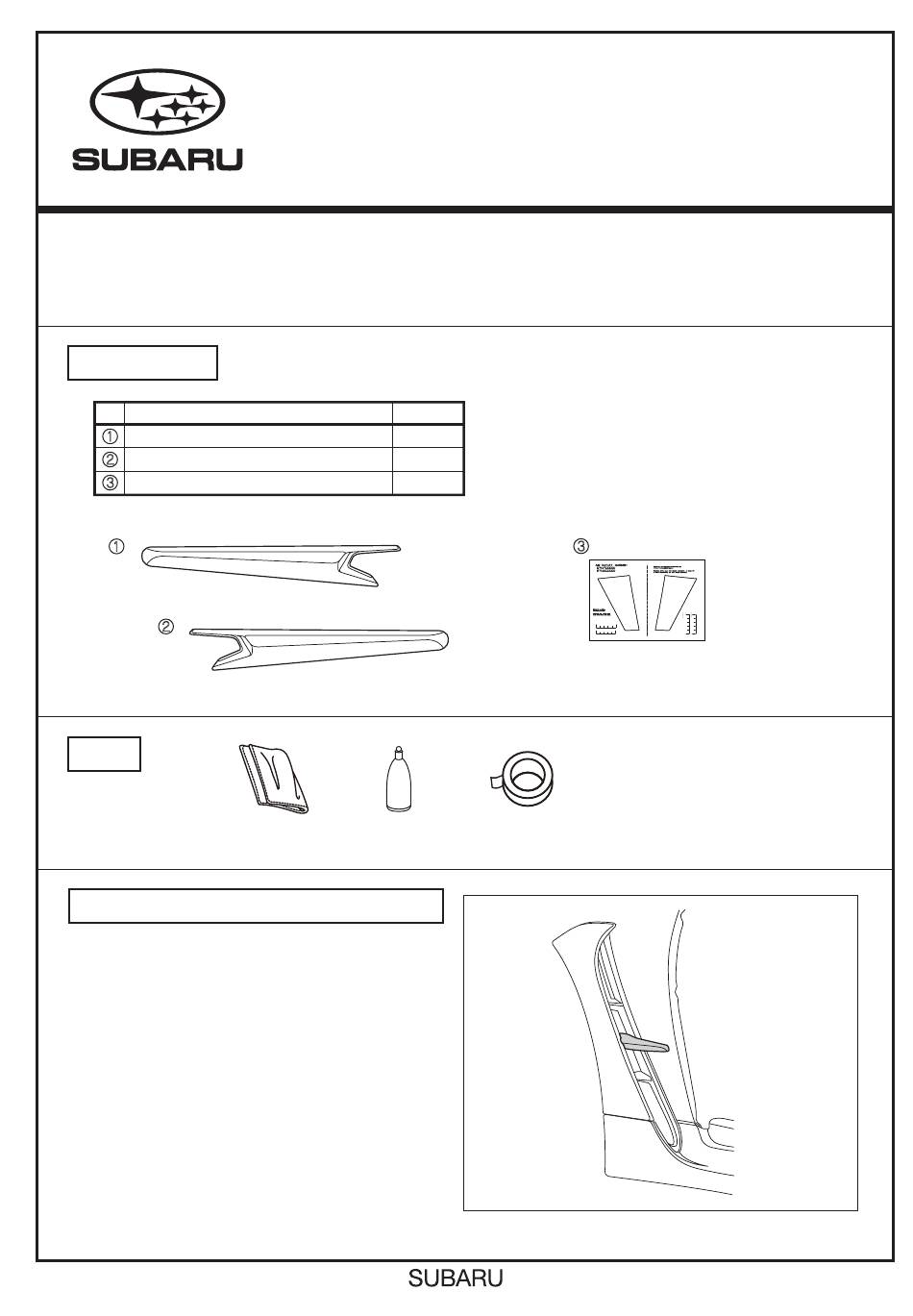

Genuine Part Number ：
Applicable Model ：
Components
（Be sure to check the components before starting work）
Ｎｏ.
Part Description
Air outlet garnish RH
①
Air outlet garnish LH
②
Paper Pattern
③
①
②
Tools
Waste cloth Cleaning agent
Installation Completion Illustration
Thank you for purchasing the air outlet garnish.
Before installing this product, please read this
manual carefully to ensure proper installation.
AIR OUTLET GARNISH
E7110CC000
BRZ （ZD） A〜
Quantity
Repair part model number
1
・E7110CC001 RH
1
・E7110CC002 LH
1
Masking tape
Distributor
1
Installation Manual
③
L H
R H
Scale
0
2in
50mm
0
Use nonane as a
cleaning agent.
Co., Ltd.
△00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Subaru E7110CC000
Summary of Contents for Subaru E7110CC000
- Page 1 △00 AIR OUTLET GARNISH Installation Manual Genuine Part Number ： E7110CC000 Applicable Model ： BRZ （ZD） A〜 Components （Be sure to check the components before starting work） Ｎｏ. Part Description Quantity Repair part model number Air outlet garnish RH ① ・E7110CC001 RH Air outlet garnish LH ② ・E7110CC002 LH Paper Pattern ③ ① ③ ② Scale 50mm Tools Use nonane as a cleaning agent. Waste cloth Cleaning agent Masking tape Installation Completion Illustration Thank you for purchasing the air outlet garnish. Before installing this product, please read this ...
- Page 2 AIR OUTLET GARNISH For installation workers This manual explains how to install and handle the air outlet garnish. Request Before installing this product, please ensure to read this manual and carry out proper installation. Precautions ！ 1. When attaching this product to a car, park the car on a flat surface and securely apply the parking brake before carrying out the work. 2. When attaching this product to a car, handle it with great care and do not drop it or step on it, otherwise it may get damaged. 3. Before starting the installation work, wash the car and use nonane and a waste cloth to wipe off dirt, oil films, etc. adhered to around the fenders. If cleaning is insufficient, it may cause this product to peel. 4. The adhesive strength of the double-sided tape attached to this product decreases when the air temperature is 15 ° C or lower. Before attaching this product, use a hair dryer to warm up the double-sided tape and the surface of the area where this product will be attached. 5. Do not use thinner or other solvents on the coating surfaces of the air outlet garnishes, or the surfaces may become deteriorated. Keep them away from fire; otherwise, they may become deformed. 6. Do not forcibly bend the air outlet garnishes or rub them with something sharp; otherwise, the coating surfaces may become damaged. 7. The air outlet garnish does not provide sufficient adhesive strength when it is reattached to a car. Therefore, carry out the work with care to prevent the need for reattachment work. Moreover, absolutely avoid getting the car wet by washing it, etc. within 24 hours after the installation work is complete. Otherwise, it may cause the adhesive to peel. 8. During the installation work, pay careful attention not to damage the car. 9. In particular, we ask you to strictly observe the " ! Precautions" in order to carry out the installation work safely and securely without physically damaging components, etc. 10. After completing the attachment of this product, ensure that there is no peeling in the attached area or no adhesive joint failure, including separation. 11. When a car has undergone a body coating treatment including glass coating, this product cannot exhibit its original adhesive performance. Please confirm whether or not a body coating treatment is applied to the car.
- Page 3 Installation guidelines This drawing shows how to install the product on the LH side. （1） Cleaning and degreasing the surface on which the product is to be installed Remove any dirt by washing the entire surface, shown in the figure on the left, on which the air outlet garnish is to be installed, and degrease the surface with a cleaning detergent. After degreasing the surface prior to installation, pay attention to prevent the adherence of dirt or dust. Carry out the installation work after the surface is completely dry. [Figure 1] Caution When using a cleaning detergent, be Surface on which careful with fire and carry out the the product is to be installed installation work in a well ventilated area. 【Figure 1】 （2） Preparing paper patterns and attaching them to the car Use a pair of scissors to cut out the paper patterns printed on the supplied paper.
- Page 4 （3） Temporary alignment of the air outlet garnish Insert the V-shaped part of the air outlet Check the position garnish while aligning it with the projection of of the convex part. the liner design. Align the bottom edge of the garnish with the top edge of the paper pattern and confirm that it is correctly positioned. Also, check the position of the convex part. Top of paper pattern 【Figure 3】 （4） Temporary peeling of the liners of double-sided tape Temporally peel the liners of double-sided tape attached to the back of the air outlet garnish as shown in the figure below. Peel off all the release paper from Ⓐ.[Figure 4] Release liner Masking Tape Secure the release paper (further than the convex part). Ⓑ Convex part Ⓑ 35mm Ⓐ 30mm Peel off all the release paper.
- Page 5 （5） Attaching the air outlet garnish Insert the V-shaped part of the air outlet garnish while aligning it with the projection of the liner design. Check also the alignment of the convex part and then attach Ⓐ with the Avoid double-sided tape Ⓐ from double-sided tape. touching the liner. Temporarily attach Ⓑ and Ⓒ with the Ⓑ double-sided tape while aligning the bottom Ⓐ...
