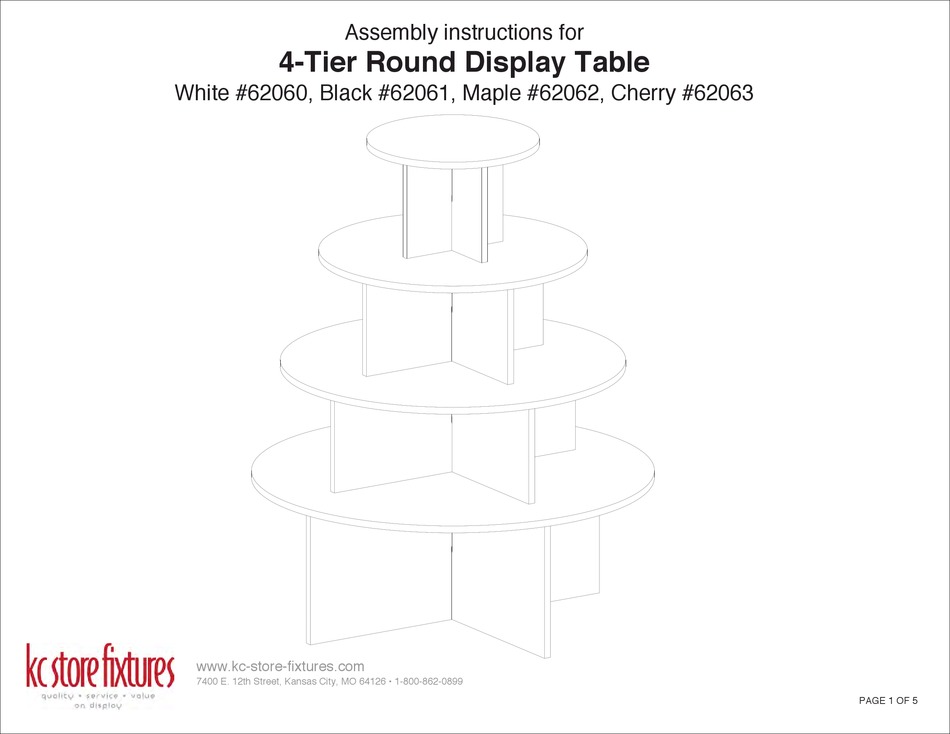

- Page 1 Assembly instructions for 4-Tier Round Display Table White #62060, Black #62061, Maple #62062, Cherry #62063 www.kc-store-fixtures.com 7400 E. 12th Street, Kansas City, MO 64126 • 1-800-862-0899 PAGE 1 OF 5...
- Page 2 Assembly instructions for 4-Tier Round Display Table White #62060, Black #62061, Maple #62062, Cherry #62063 STEP 1 Screw bolts into bolt holes on bottom side of base top. BOLT Fit both base parts together using center cuts Align base top onto receiving holes in base parts...
- Page 3 Assembly instructions for 4-Tier Round Display Table White #62060, Black #62061, Maple #62062, Cherry #62063 STEP 2 Screw bolts into bolt holes on bottom side of tier 2-top BOLT Fit both tier 2-base parts together using center cuts TIER 2-TOP...
- Page 4 Assembly instructions for 4-Tier Round Display Table White #62060, Black #62061, Maple #62062, Cherry #62063 STEP 3 BOLT Screw bolts into bolt holes on bottom side of tier 3-top Fit both tier 3-base parts together using center cuts RECIEVING HOLES...
- Page 5 Assembly instructions for 4-Tier Round Display Table White #62060, Black #62061, Maple #62062, Cherry #62063 RECIEVING HOLES STEP 4 TIER 4-TOP BOLT Screw bolts into bolt holes on bottom side of tier 4-top TOP CAM HOLES Fit both tier 4-base parts together using center cuts...
