RH Teen THALIA FULL DAYBED WITH TRUNDLE Instructions

T H A L I A F U L L D A Y B E D W I T H T R U N D L E I N S T R U C T I O N S
PARTS INCLUDED
A [ 2 ] SIDE PANEL
[ ]
B 1 FRONT PANEL
1 [ ]
C
HEADBOARD
1 [ ]
D
TRUNDLE
4 [ ]
E
SLAT
F 2 [ ]
PLATFORM PANEL
G 1 [ ] CENTER SLAT
TOOLS NEEDED
Phillips Head Screwdriver (not include)
ASSEMBLY INSTRUCTIONS
Bed must be assembled by at least two people.
Please read instruction carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1. Stand the Headboard (C) upright and hook Headboard (C) into Side Panels(A), as shown in Diagram I.
2. Using the Allen Head Bolts (2) to connect the Side Panels (A) and the Front Panel (B), then stand the
Front Panel (B) and tighten all bolts with Allen Key (1),
3. Place the Center Slat (G) into the L-Shaped Bracket (3) using Allen Head Bolt (5) and tighten with Allen Key (1),
then attach the L-Shaped Bracket (3) to the Side Panels (A) using Allen Head Bolt (4) and tighten with Allen Key (1),
as shown in Diagram III.
4. Place the Slats (E) into the U-Shaped Bracket, then screw the slats (E) using Screws (6), as shown in Diagram IV.
5. Lay the Platform Panels (F) on the top, then screw the Platform Panels (F) with Slats (E) using Screws (8),
as shown in Diagram V.
6. Push the Trundle (D) into the daybed frame, making sure the Trundle (D) front panel is flush with the daybed Front
Panel (B).
CARE INSTRUCTIONS
1. Spot clean only with a soft, damp cloth.

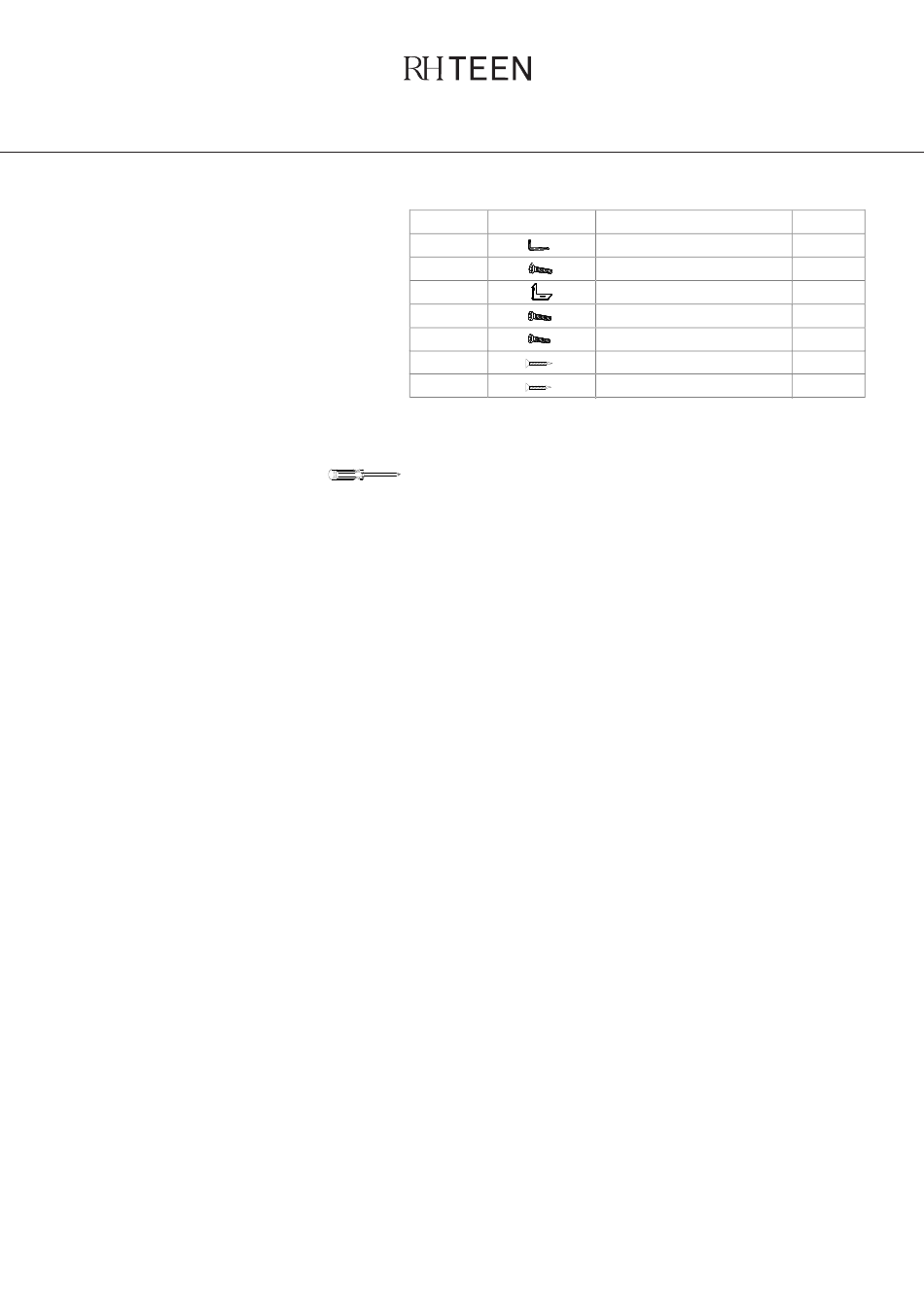

NO. ITEM
1
2 Allen Head Bolt(0.8cm Dia*3.2cm)
3
4 Allen Head Bolt(0.8cm Dia*3cm)
5 Allen Head Bolt(0.6cm Dia*3cm)
6
7
as shown in Diagram II.
1 of 2
DESCRIPTION
Allen Key (0.5cm Dia)
L-Shaped Bracket
Screw (4cm)
Screw (3cm)
QTY
1 pc
4 pcs
2 pcs
2 pcs
2 pcs
8 pcs
16 pcs
