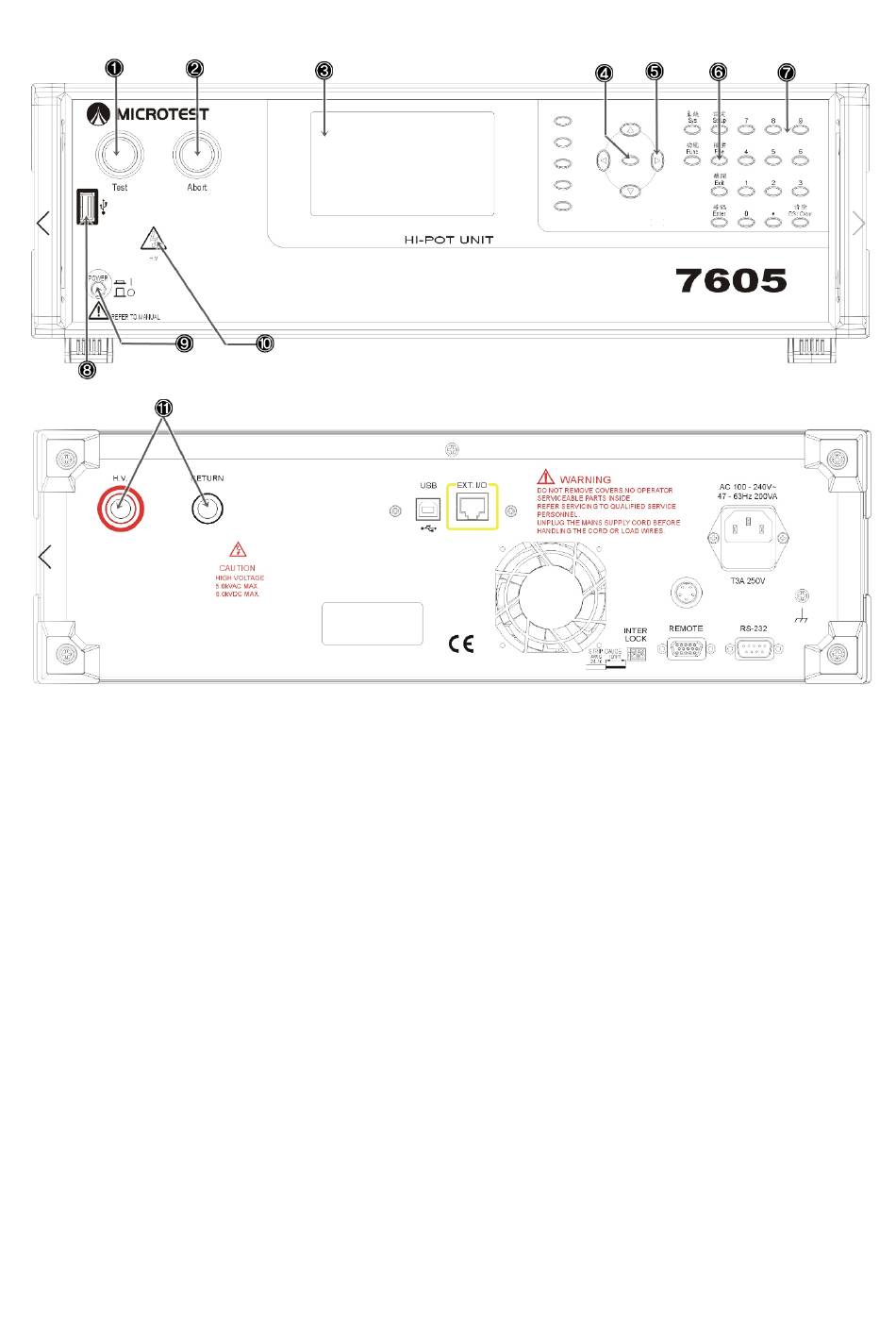

(1) Test button (includes PASS indicator): Pressing this button while the machine is in READY
status will start performing testing; if the test result passed, this indicator will light up.
(2) Abort button (includes FAIL indicator): Pressing this button while the machine is in testing
status will stop the test and switch off the high voltage output; if the test result failed, this indicator
will light up and the alarm will sound. At this time, this button also needs to be pressed to turn off
the alarm.
(3) Color LCD display: Displays the various settings and testing results.
(4) Software buttons: This software button does not have any fixed function; the screen will
prompt its current function. For example: Copy or Delete etc. If there is no prompt on the screen, it
means that this button currently has no effect.
(5) Direction buttons: These can move the cursor to perform editing. If this field includes
selectable items, the left and right buttons can also be pressed to switch the options.
(6) Function buttons: Press the corresponding button to enter that function and perform settings;
they will be explained in the function settings chapter.
(7) Number buttons: Performs number editing.
(8) USB port: Insert portable storage devices to access settings files and perform firmware updates.
Note: Only supports FAT format
(9) Power switch: Switches the power of the host On or Off
(10) High voltage output warning indicator: When there is voltage output at the high voltage output
terminal, this warning indicator will light up. Do not touch the high voltage output terminal when
the high voltage warning indicator is on in order to avoid the danger of electric shocks.
(11) High and low voltage output ports: Ports used to output test voltages
