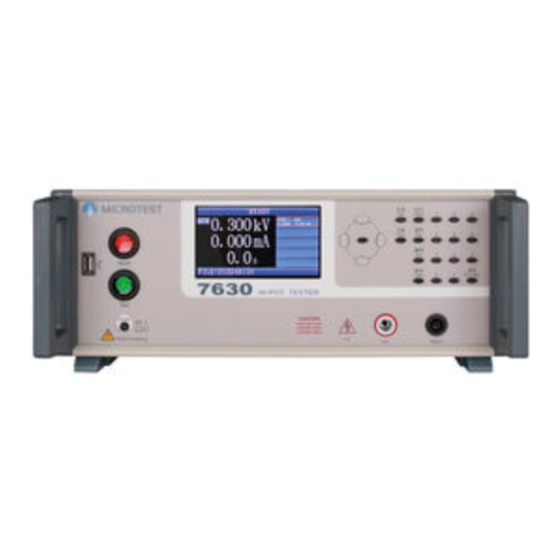

Microtest HT-7630 User Manual

Hi-pot tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

HI-POT Tester
7630
User's Manual
Version: 1.2
Issued Date: March 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-7630 and is the answer not in the manual?

Questions and answers

Related Manuals for Microtest HT-7630

Summary of Contents for Microtest HT-7630

  • Page 1 HI-POT Tester 7630 User’s Manual Version: 1.2 Issued Date: March 2017...
  • Page 2 All brands and trademark are the properties of Microtest Co., Ltd. Microtest Co., Ltd. and its affiliates shall not be liable for the damage, losses or costs incurred due to the accidental use, misuse or abuse by the product buyer or the third party;...

  • Page 3: Table Of Contents

    Table of Contents 1. Safety Instruction ................1 1.1 Electrocution ....................1 1.2 Grounding ....................1 1.3 Power Source ....................1 1.4 Connecting the Tester Table to the High Voltage Output Terminal ..... 2 1.5 Warm-up ...................... 2 1.6 External control unit ..................2 1.7 Machine failure ....................
  • Page 4 6.4 Connection cable and method ..............29 6.5 USB device interface .................. 30 Remote Command ..............31 7.1 Instruction summary .................. 31 7.2 Command description ................33 Appendix 1 Error message .............. 41...

  • Page 5: Safety Instruction

    1. Safety Instruction This instrument is designed according to EN61010-1 Specification. The main purpose of this Specification is to ensure that the instrument will be used in the laboratory or the factory safely; it is not suitable for outdoor applications, especially the moistened or dusty locations.

  • Page 6: Connecting The Tester Table To The High Voltage Output Terminal

    1.4 Connecting the Tester Table to the High Voltage Output Terminal While the tester is off, connect the high voltage tester cables to the high voltage output terminal of the tester and make sure that there are no ruptures outside the cables and that the cables are not loose.

  • Page 7: Installation, Storage

    do not execute consecutive on/off action of the power. 1.9 Installation, storage Normal operating temperature and humidity scope of the instrument is C~40 C and 80% RH respectively, and the instrument may act abnormally if exceeding such range. The storage temperature and humidity scope of the instrument is -20 C~ 70 C and 80% RH respectively.

  • Page 8: General Summary

    2.1 Package and Accessories Standard accessories included in the 7630 hipot tester package should include the following items: HT-7630 • HV cables (red) • Low voltage cables (black) • Power Cord • HT-7630 User ’s Manual CD • Inter lock cable •...

  • Page 9: Front Panel

    2.2 Front Panel (1) (2) (10) (11) (1) Test key (with PASS light indicator): Press to start testing the system in READY mode, it lights up after being tested successfully. (2) Stop key (with FAIL light indicator): Press to stop the test and close the high voltage output in test mode.

  • Page 10: Rear Panel

    2.3Rear Panel (3) (4) (12) (11) (1) High voltage output terminal: Connection to the expansion box (2) Low voltage output terminal: Connection to the expansion box (3) USB port: Connection to the computer for controlling the machine with computer instructions (4) Expansion box port: Connect this port and an expansion box with a connection cable (5) AC power socket: AC power input connector with a 250V/3.15A fuse...

  • Page 11: Basic Operation

    Basic operation 3.1 Function block diagram Ready Setup File Func MODE Save As.. Baud Rate Key Lock VOLT Pass Hold Upload Load File FREQ Config Time Data Trig Wait Del. File Setup Key Sound Time Ramp Alarm New File File PassWord Mode DWEL...

  • Page 12: Standby Screen

    3.2 Standby screen (1) Display the current test mode: Message “ACW” for AC voltage testing, “DCW” for DC voltage testing, “IR” for insulation impedance testing (2) Readings of the voltage, current (resistance in IR mode), and test time of the measurement output port now.
  • Page 13 (4) Display the first five test steps of the current file (5) The orange color framed step is the one under testing (DUT) now along with its specifications displayed. You may select the desired step by moving the cursor to it with arrow key. Press the ENTER key to set up the test items. (6) Display the name of the current file.

  • Page 14: System Settings (System)

    3.3 System settings (SYSTEM) (1) Baud Rate: You may set up a transmission speed of RS-232 to 9600, 19200, 38400, 57600, or 115200. Please note that this needs to be aligned with the speed at the control end. (2) Upload Data: Automatically uploads the test results.Available options include OFF, RS-232, FLASH and BOTH.
  • Page 15 same as the RS-232 contents. The data storage path is \7630\STAT\current test file name.csv. When the function is set as BOTH, both the actions described above will be performed. When the function is set as OFF, this function is disabled. Note: When the RS-232 and FLASH functions are enabled, since it takes some time to transmit the data (differs according to the transmission rate set and mobile access device), therefore there will be some time delay for continuous...

  • Page 16: Function (Func)

    3.4 Function (FUNC) (1) Key Lock: Keyboard lock prevents the test conditions from changes by unexpected user operation. Once it is on, users can start and stop the test without changing any settings. To unlock the keyboard, input the password you set earlier. To change the password, please refer to the system setup steps given earlier.
  • Page 17 given trigger source after the first one has ended. With the option “AUTO”, the test runs the next step automatically; “Trig”, the next step, will run only after the TEST key is pressed. This item is available only when Test Mode is set to the option ALL.

  • Page 18: Specification Setup 1 (Setup)

    3.5 Specification setup 1 (SETUP) (1) STEP: Step ID. Each file can have up to 16 steps. Press the software key COPY to add the next step; press the software key DEL to delete the step where the cursor is positioned. Each file must have at least one step. (2) MODE: There are three test mode options: ACW, DCW, IR which you can select with a software key.
  • Page 19 judgment over the arc during the test. (10) OFFS: This item resets the test end to prevent the impact of the external jig on accuracy. It deducts the leak current by the jig in advance and displays the actual leak current of the DUT with the equation “measurement readings = actual measurement less reset value”.

  • Page 20: Specification Setup2 (Setup)

    3.6 Specification setup2 (SETUP) (1) OPEN: Open circuit detection sensitivity. Poor connection of the high voltage test wire to the DUT may lead to a lower measurement current and invalid qualified product results in the voltage test. Once this function is enabled (with non-zero settings) your machine will measure the DUT's capacitance with low voltage for about 200ms before the high voltage test begins.
  • Page 21 its settings must be lower than the latter. (3) High voltage output time and results determination timing: See the diagrams below for the results determination the timing after the TEST key is pressed by the user. Please note that in the IR delay and ascending time, no upper and lower limit will be determined while only the upper limit will be determined in the ascending time of the ACW and DCW modes.

  • Page 22: File Management (File)

    3.7 File management (FILE) (1) Save As..: This option saves the setup file with a new file name (there can be up to 30 files saved in your machine). The “file save” page displays the existing files in your machine. In case a USB drive is connected, a USB icon shows in the upper right corner of the page.
  • Page 23 Please select the existing file with the arrow key as shown in the diagram below. note that all setting files are auto generated by your machine. DO NOT edit this data as the file may be damaged or the machine may run improperly. (3) Del File: This item deletes the file in a manner similar to saving or retrieving it.
  • Page 24 (6) Copy File from USB: This item copies the existing setup files to your machine from the USB drive and overwrites any one in the former with the same name. Enter this page to display the files existing in USB drive, press the software key OPT to select one or more desired files, press the software key COPY to start copying selected files.

  • Page 25: Start Testing

    4 Start testing 4.1 Before testing (1) Validate specification setup (2) Validate the proper connection between your machine and DUT (3) Validate that the message READY is prompted (4) Press the TEST key to start testing...

  • Page 26: Testing In Progress

    4.2 Testing in progress (1) The message TEST is shown in the message column (2) The high voltage output light indicator is ON in the front panel (3) Measure the output voltage and leak current (4) Test time counting. For tests lasting longer than 100 seconds, their integral portion is displayed while the decimal portion is hidden;...

  • Page 27: Ending A Test

    4.3 Ending a Test (1) Press the ABORT key to stop testing. (2) Current/resistance measurements over the upper limit (HI-LIMIT) (3) Current/resistance measurements below the lower limit (LO-LIMIT) (4) Leak current over the maximum measurement (Break Down) (5) Arc is over the settings (Arcing) (6) Output safety switch is enabled (Inter Lock) (7) Test DUT open circuit (8) Test time expired...

  • Page 28: Release Determination Results

    4.4 Release determination results (1) After the test time has expired, the PASS light(green) indicator turns on and the screen shows“PASS”. After the PASS HOLD time has expired, the page refreshes to READY status and the PASS light indicator turns off. In case PASS HOLD is set to Infinity, then you have to press the ABORT key to release the determination results display.

  • Page 29: Remote Control I/O (Remote)

    5 Remote control I/O (REMOTE) The rear panel of your machine comes with a remote control connector (REMOTE). Please connect the control wire to it to enable controlling your machine with an external signal. In cases like this, the test operator will not touch the high voltage output end to prevent personal injury.
  • Page 30 FAIL Determination FAIL HV-ON High voltage output in progress Chassis Ground TRIG Test trigger ABORT Test abortion RESET Reset your machine DC +5V output +12V DC +12Voutput Circuit common terminal Use description: PIN1-PIN8 is a collector open output without any voltage or signal. Current passing through the connector must be less than 50mA.
  • Page 31 Frequent uses: 1. (Input signal) Control your machine for testing by using a normal open switch relay 2. (Output signal) Control the relay with the output signal. Please connect the relay coil to a regulator diode for safer application...

  • Page 32: Rs-232/Usb Device

    6 RS-232/USB device 6.1 RS- 232 interface Baud Rate: Available options are 9600/19200/38400/57600/115200 and it can be set up in the System mode Transmission bits: 1 initial bit, 8 data bits, 1 ending bit 6.2 Command format The RS-232 interface function of your machine is exercised by a command string in ASCII code for remote control and setup.

  • Page 33: Connection Cable And Method

    6.4 Connection cable and method...

  • Page 34: Usb Device Interface

    6.5 USB device interface Interface I/O USB Specification 2.0 Self-powered Transfer rate: MAX 12Mbps(Full Speed) Instruction string end code For receiving: LF or EOM For transmission: LF+EOM Vendor ID 0x1FC9 Product ID 0x811D...

  • Page 35: Remote Command

    7 Remote Command 7.1 Instruction summary Common command *CLS *IDN? *OPC *OPC? *OPT? *RCL *SAV SCPI command :CONFigure :KLOCk <ON , OFF, 1, 0> :ALARm <ALL,PASS, FAIL,OFF> :PHOLd <50ms,100ms,500ms,1s,2s,5s,INFinity> :TGWAit <NRf> :TMODe <SINGLE,MULTI> :TMODe :MULTi :TSOUrce <AUTO,TRIG> :TMODe :MULTi :BREAk <FAIL,OFF>...
  • Page 36 :OPEN <NRf> :DELAy <NRf> : STEP : COUNt? : STEP : DELete <numeric> : STEP : ADD <numeric> : STEP : CONDition <numeric> :MEASure :VOLTage? :CURREnt? :RESistance? :TIME? :OPERation :STEP <numeric> :FILE? :RESU? :STAR :STOP :SYSTem :AUREply <ON , OFF, 1, 0> :KYSOund <ON , OFF, 1, 0>...

  • Page 37: Command Description

    7.2 Command description Common command Command Function *CLS Clears all the registers *IDN? Read the basic device data including the manufacturer, model, serial number, firmware release and output in comma delimited format *OPC Operation completion command *OPC? Query operation completion command: Return value 1 if operation completed;...
  • Page 38 : CONFigure: TGWAit<NRF> This command sets up the test wait time after a trigger Example: CONF: TGWA 500mS Example description: Set up wait time after trigger to 500mS Example: CONF: TGWA? Return value: +5.00000E-01 <500ms> : CONFigure: TMODe<SINGLE,MULTI> This command sets up the test mode Example: CONF: TMOD MULTI...
  • Page 39 Example: EDIT: STEP 1 Example description: Set to edit step 1 Example: EDIT: STEP? Return value: 1 <step 1> : EDIT: : FUNCtion< ACW,DCW,IR > This command sets up the test items Example: EDIT: FUNC ACW Example description: Set the test item to ACW Example: EDIT: FUNC? Return value: ACW : EDIT: VOLTage<NRf>...
  • Page 40 This command sets up the test time Example: EDIT: DWEL 1s Example description: Set the test time to 1s Example: EDIT: DWEL? Return value: +1.00000E+00 <1s> : EDIT: CHANnel : POSItive< numeric ><Invalid for model 7630> This command sets up the high voltage output channel Example: EDIT: CHAN: POSI 1,2,3,4 Example description: Set the high voltage output channel to 1, 2, 3, 4 Example: EDIT: CHAN: POSI? Return value: 1,2,3,4...
  • Page 41 : EDIT: IR: DELAy<NRf> This command sets up the IR delay determination time Example: EDIT: IR: DELA 0.1s Example description: Set up the IR delay determination time to 0.1S Example: EDIT: IR: DELA? Return value: +1.00000E-01 <0.1s> : EDIT: STEP: COUNt? This command queries the number of test steps Example: EDIT: STEP: COUN? Return value: 2 <this file contains 2 steps>...
  • Page 42 : OPERation: STEP <numeric> This command selects the test step: desired test step for single-step test and the first step for multi-step test Example: OPER: STEP 2 Example description: Select the test step STEP2 : OPERation: STEP? Return value: 2 <2 STEP>...
  • Page 43 : STOP This command stops a test which functions the same as the ABORT key in the front panel Example: STOP. : SYSTem: AUREply<ON , OFF, 1, 0> This command sets up the auto reply function of RS-232 Example: SYST: AURE ON Example description: Enable auto reply function of RS-232 Example: SYST: AURE? Return value: ON : SYSTem: KYSOund<ON , OFF, 1, 0>...
  • Page 44 panel Example: TEST: ABOR...

  • Page 45: Appendix 1Error Message

    Appendix 1Error message -100 Command error Command error -102 Syntax error Syntax error -103 Invalid separator Invalid separator found in the command string -108 Parameter not allowed Received parameter that is not allowed -109 Missing parameter Missing parameter -112 Program mnemonic too The program mnemonic exceeded 12 long characters...
