AmpliVox SW915 Specification Sheet

650 Anthony Trail, Suite D, Northbrook, IL 60062
D I G I T A L A U D I O T R A V E L
PA R T N E R
w i t h R e m o t e

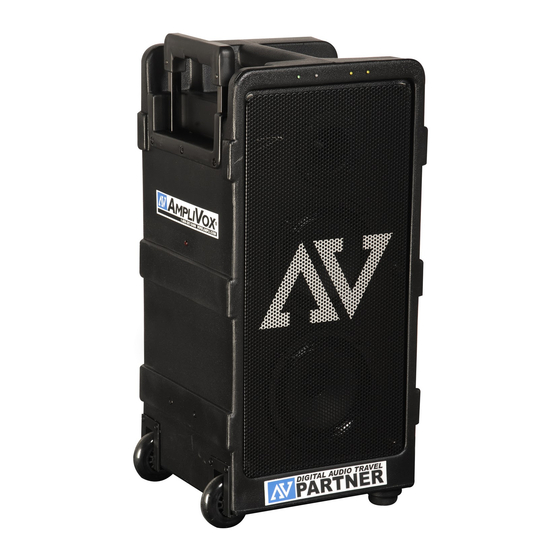

SW915 Digital Audio Travel Partner
Standard Unit Includes: 1 UhF 8-channel internal wireless receiver with
choice of wireless mic & transmitter - cD/cDRw/mP3 disc player with pitch
control - wired xLR mic
Sw915 ................................................................................................................ $2,628
Customized options for 5 available slots
(factory installed)
Built-In additional UhF wireless Receiver with:
S9110 Lapel mic .......................................................................................................$ 630
S9115 headset mic .................................................................................................$ 630
S9120 handheld mic ..............................................................................................$ 630
S9125 Flesh Tone mic ............................................................................................$ 630
S9150 cassette Tape Recorder/Player (variable pitch) ........................................$ 438
S9160 Digital mP3 Player/Recorder with SD slot ...................................................$ 438
PhoNe: (800) 267-5486 - FAx: (800) 267-5489
C o n t r o l
quick set up
guide printed on
control panel
DIGITAL AUDIO TRAVEL PARTNER
Features: 250 watts, Audience Size up to 7,500,
n
Room size up to 25,000 sq.ft.
Built-in Digital UhF 8 channel wireless receiver
n
with choice of lapel, handheld, flesh tone or headset
mic with transmitter
wired xLR mic
n
Built-in Digital cD/cDR/cDRw/mP3 disc player with pitch control
n
Digital pre amp
n
USB input
n
Two 6.5 in. Neo woofers and dynamic compression driver, SPL 136dB
n
3 Neutrik combo xLR mic Inputs
n
mute
n
Reverb / echo
n
Talk-over (Ducking) - Automatic reduction of music when mic is used
n
Voice/music Button
n
Ac Power cord and rechargeable batteries for up to 10 hours of run time
n
A specially tooled and molded plastic enclosure for exceptional durability
n
with tripod mount & retractable handle & wheels
Remote control
n
weight 35 Ibs.
n
REmOTE CONTROL
Unique feature lets you adjust master and individual
volume controls, mixer, reverb/echo, mute and talk-over
functions, from any location in room up to 50 ft. as the unit
has sensors on three sides.
rated power output
Battery
ac power
phantom power input
Wireless range
Frequency response:
sensitivity
equalization (tone)
line output:
sensitivity for rated output:
Balanced Microphone
Balanced line
unbalanced line
unbalanced input:
Balanced input:
Weight:
dimensions (HWd):
Warranty
www.AmPLI.com INFo@AmPLI.com
LED indicators on speaker side of
unit for: POWER ON – bATTERy
STATUS - REmOTE SENSOR - UHF
250W dynamic, 132W rMs
(2) 12 volt rechargeable, 7.2 aH,
user accessible and replaceable
110-220 auto sensing, 50/60 Hz,
powers electret condenser mics
up to 200 Feet
40Hz to 20khz
96dB
separate Bass and treble
Buffered, 600 ohm, 1/4in.-phone (pre fader)
-58 dBV (1.25 mVrms
-15 dBV (175 mVrms)
-20 dBV (100 mVrms)
Hi-Z, neutrik combo 1/4in.
lo-Z, neutrik combo Xlr
35 lbs.
23in.H x 11.5in.W x 11in.d
6 years electronics; 1 year on remote, Mics,
cassette player, cd payer, digital player and
rechargeable Batteries.
Portable PA
Sw915
Updated 5.22.12
