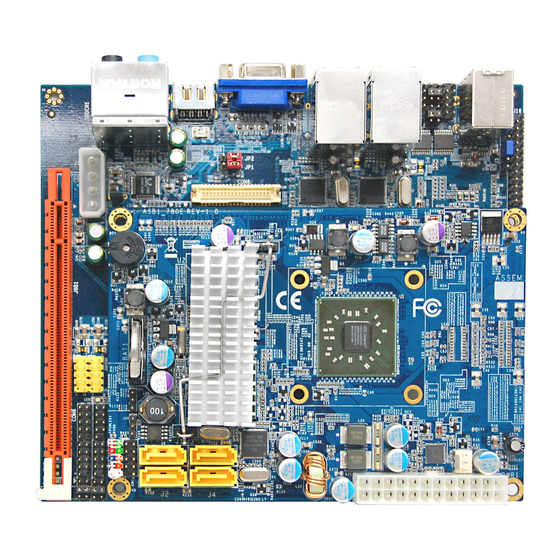

K3780E Mainboard
K3780E
AMD 780E + AMD SB710
K3780E-S / K3780E-D (Type1)
K3780E-S Single Core CPU AMD Sempron 210U (1.5GHz)
K3780E-D Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz)
K3780E-S2 / K3780E-D2 (Type2)
K3780E-S2 Single Core CPU AMD Sempron 210U (1.5GHz)
K3780E-D2 Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz)
User's Manual
Ver. 1.0
MB Dimension
170mm x 148mm
Operating System
®
Windows
XP/ Vista/ Win7
Release Date
091229
I
Advertisement
Table of Contents
Related Manuals for AMD K3780E
Summary of Contents for AMD K3780E
-
Page 1: Operating System
AMD 780E + AMD SB710 K3780E-S / K3780E-D (Type1) K3780E-S Single Core CPU AMD Sempron 210U (1.5GHz) K3780E-D Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz) K3780E-S2 / K3780E-D2 (Type2) K3780E-S2 Single Core CPU AMD Sempron 210U (1.5GHz) K3780E-D2 Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz) User's Manual Ver. - Page 2 Things You Have To Know The images and pictures in this manual are for reference only and may vary from the product you received depending on specific hardware models, third party components and software versions. This mainboard contains very delicate IC chips. Always use a grounded wrist strap when working with the system.
-
Page 3: Table Of Contents
CHAPTER 1 GETTING STARTED... 1 1.1 I ... 1 NTRODUCTION 1.2 S ... 2 PECIFICATION 1.2.1 CPU ... 2 1.2.2 Chipset... 2 1.2.3 Memory ... 2 ® 1.2.4 Audio - Realtek ALC 662 ... 2 ® 1.2.5 LAN - Realtek RTL8111C... - Page 4 1.4.17 COM 1/ 2 & COM4~7: COM Port ... 15 1.4.18 CON6: LVDS... 15 1.4.19 U16: Print Port ... 16 1.4.20 KBMS1: Mini-DIN PS/2 Port... 16 1.4.21 USBLAN1/USBLAN2: LAN +USB Port ... 16 1.4.22 VGA1: VGA Connector ... 17 1.4.23 HDMI... 17 1.4.24 SNDCN1 ...
-
Page 5: Chapter 1 Getting Started
(optional) slot for use is also allowed. The K3780E provides LVDS, HDMI, VGA (D-Sub) or DVI, 8 or 4 USB 2.0/ 1.1 and 6 or 2 RS232 ports for use. There are maximal 8 USB2.0/ 1.1 ports which can be set up on this mainboard. -
Page 6: Specification
1.2.1 CPU K3780E-S / K3780E-D (Type1) K3780E-S Single Core CPU AMD Sempron 210U (1.5GHz) K3780E-D Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz) K3780E-S2 / K3780E-D2 (Type2) K3780E-S2 Single Core CPU AMD Sempron 210U (1.5GHz) K3780E-D2 Dual Core CPU AMD Athlon™ Neo X2 L325 (1.5GHz) 1.2.2 Chipset... -
Page 7: Lan - Realtek ® Rtl8111C
® PCI-E Realtek Giga LAN Ethernet LAN RJ45 Connector with link/act and speed LED integrated K3780E I/O Board Type I: 2 x LAN K3780E I/O Board Type II: 1 x LAN 1.2.6 Slot K3780E I/O Board Type I 1 x PCI-E x16 Slot 1 x Mini-PCI Slot 1.2.7 Mini-IDE Connector... -
Page 8: Universal Serial Bus
SATA RAID 0, 1, 10 1.2.11 BIOS Phoenix-Award™ BIOS 1.2.12 Hardware Monitor Monitor CPU temperature and FAN speed Monitor system voltages 1.2.13 Power Supply ATX 24 pin power 1 x 5V/ 12V 4 pin power connector (K3780E I/O Board Type I) Mainboard... -
Page 9: Configuration
Mainboard 1.3 Configuration 1.3.1 Layout of System board + I/O Board Type 1... -
Page 10: Layout Of System Board + I/O Board Type 2
Mainboard 1.3.2 Layout of System board + I/O Board Type 2... -
Page 11: Hardware Installation
1.4 Hardware Installation This section will assist you in quickly installing your system hardware. Wear a wrist ground strap before handling components. Electrostatic discharge may damage the system's components. Jumpers Jumpers of System Board --- 1.4.1 FPSWLED: Front Panel Headers Assignment HDD LED (+) HDD LED (-) -
Page 12: Jp1: Clear Cmos Jumper
1.4.2 JP1: Clear CMOS Jumper The "Clear CMOS" function is used when you are unable boot your system and need to reset the BIOS settings (CMOS settings) back to the manufacturer's original settings. This is also a way to reset the system password if you have forgotten it. Pin 1-2 Closed Normal (Default) Pin 2-3 Closed... -
Page 13: Jumpers Of I/O Board Type 1
Jumpers of I/O Board Type 1 --- 1.4.4 JP1: CF Card Master/ Slave Jumper This Jumper is to select the CF works on Secondary Channel master device or Slave device. Assignment Pin 1-2 Closed Slave Pin 2-3 Closed Master (Default) 1.4.5 JP2: LVDS VDD POWER It’s for LVDS VDD power setting. -
Page 14: Jumpers Of I/O Board Type 2
Jumpers of I/O Board Type 2 --- 1.4.7 JP1001: CF Card Master/ Slave Jumper This Jumper is to select the CF works on Secondary Channel master device or Slave device. Assignment Pin 1-2 Closed Slave Pin 2-3 Closed Master (Default) 1.4.8 JP2001: LVDS VDD POWER It’s for LVDS VDD power setting. -
Page 15: Connectors
Connectors Connectors of System Board --- 1.4.10 J1 - J4: SATA Assignment SATA_TX+ SATA_TX- SATA_RX+ SATA_RX- 1.4.11 FAN1: FAN Header There is one fan header available for cooling fan. This cooling fan plays an important role in maintaining ambient temperatures in your system. Assignment +12V SENSER... -
Page 16: Pwr1: Atx Power Connector
1.4.12 PWR1: ATX Power Connector This mainboard provides one ATX connector. You must attach it before the system is powered on. This power connector supports several power management functions such as the instant power-on function. The connector pins are described below. Assignment 3.3V -12V... -
Page 17: Ddrii1/ Ddrii2: Memory Installation
1.4.13 DDRII1/ DDRII2: Memory Installation It provides DDR SO-DIMM socket which allows you to install 200-pin SO-DIMM. Memory Installation Steps: Match the notch on the bottom of the DIMM module with the corresponding pattern in the DIMM slot. This will ensure that the module will be inserted with the proper orientation. Now the chips or pins at the bottom of the DIMM module are still visible. -
Page 18: Connectors Of I/O Board Type 1
Connectors of I/O Board Type 1 --- 1.4.14 J3/ J4: PGIO 1.4.15 J5: 4 Pin Power Conn. 1.4.16 USB1/ USB2: USB These USB ports are used to attach with USB devices, such as keyboard, mouse and other USB supported devices. Assignment FPGA_TDI FPGA_TMS... -
Page 19: Com 1/ 2 & Com4~7: Com Port
1.4.17 COM 1/ 2 & COM4~7: COM Port This mainboard provides four COM pin headers for you to connect additional serial connectors on your case back panel. Attach cables of serial connectors onto these headers, then you can use the serial connectors connecting with a mic, modem or other peripheral device. 1.4.18 CON6: LVDS Assignment 3.3V/5V... -
Page 20: U16: Print Port
1.4.19 U16: Print Port Assignment RSTB- RPDR0 RPDR1 RPDR2 RPDR3 RPDR4 RPDR5 RPDR6 RPDR7 ACK- BUSY SLCT 1.4.20 KBMS1: Mini-DIN PS/2 Port This mainboard provides a standard Mini-DIN PS/2 port to connect PS/2 keyboard and mouse. Assignment Keyboard/ Mouse data Keyboard/ Mouse clock 1.4.21 USBLAN1/USBLAN2: LAN +USB Port... -
Page 21: Vga1: Vga Connector
1.4.22 VGA1: VGA Connector The mainboard provides one VGA connector (= D-Sub connector) on back panel. VGA connector (= D-Sub connector) delivers the analogy signals, and is able to connect with traditional CRT display, flat display, or other display device which with the D-Sub interface compatible. -
Page 22: Mini_Pci1: Mini Pci Slot
1.4.25 MINI_PCI1: Mini PCI Slot Mini PCI (Peripheral Component Interconnect) is a 32-bit, 33MHz bus standard for integrated peripherals of smaller products. The mainboard provides one Mini PCI slot available to install expansion cards such as network card, SCSI card, etc. 1.4.26 CON5: CF Card Connector The mainboard provides one CF card connector (CompactFlash I/II Card). -
Page 23: Connectors Of I/O Board Type 2
Connectors of I/O Board Type 2 --- 1.4.27 J2: 4 Pin Power Conn. 1.4.28 J4/ J5: PGIO 1.4.29 USB1: USB These USB ports are used to attach with USB devices, such as keyboard, mouse and other USB supported devices. 1.4.30 USB2001/ USB2002: USB These USB ports are used to attach with USB devices, such as keyboard, mouse and other USB supported devices. -
Page 24: Com 1/ 2: Com Port
1.4.31 COM 1/ 2: COM Port This mainboard provides four COM pin headers for you to connect additional serial connectors on your case back panel. Attach cables of serial connectors onto these headers, then you can use the serial connectors connecting with a mic, modem or other peripheral device. 1.4.32 CON1001: LVDS Assignment 3.3V/5V... -
Page 25: C1001: D-Sub
1.4.33 C1001: D-SUB 1.4.34 CON2: AUDIO1 - Line In/ Line Out/ Mic In 1.4.35 CON3: AUDIO2 - SURR/ LFE/ CNE/ SPDIF OUT Assignment Assignment HSYNC DDC_CLK VHYNC DDC_DATA VGA_R VGA_G VGA_B Assignment Assignment LINE1_L LINE1_JD LINE1_R FRONT_L FRONT_JD FRONT_R MIC_L MIC_JD MIC_R Assignment... -
Page 26: Bioscn1: Lpc Interface
1.4.36 BIOSCN1: LPC Interface 1.4.37 KBMS1: Mini-DIN PS/2 Port This mainboard provides a standard Mini-DIN PS/2 port to connect PS/2 keyboard and mouse. Assignment Keyboard/ Mouse data Keyboard/ Mouse clock 1.4.38 USBLAN1: LAN +USB Port ® There is one PCI-E Realtek Giga Ethernet LAN port available for you to attach Internet cables. -
Page 27: Hdmi1001
Mainboard 1.4.39 HDMI1001 A HDMI connector is the serial port. 1.4.40 DVI1001 A DVI connector is the serial port. 1.4.41 CON2005: CF Card Connector The mainboard provides one CF card connector (CompactFlash I/II Card). -
Page 28: Main Menu
Press <DEL> to Enter Setup In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. When you enter the Setup utility, K3780E Mainboard... -
Page 29: Standard Cmos Features
Mainboard the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. 2.1.1 Standard CMOS Features Include all the adjustable items in standard compatible BIOS. -
Page 30: Advanced Bios Features
Mainboard 2.1.2 Advanced BIOS Features Include all the adjustable items of Award special enhanced features. -
Page 31: Advanced Chipset Features
Mainboard 2.1.3 Advanced Chipset Features Include all the adjustable items of chipset special features. -
Page 32: Integrated Peripherals
Mainboard 2.1.4 Integrated Peripherals Include all onboard peripherals. -
Page 33: Power Management Setup
Mainboard 2.1.5 Power Management Setup Include all the adjustable items of Green function features. -
Page 34: Pnp/Pci Configurations
Mainboard 2.1.6 PnP/PCI Configurations Include all configurations of PCI and PnP resources. -
Page 35: Pc Health Status
Mainboard 2.1.7 PC Health Status It is for monitoring the system status such as temperature, voltage, and fan speeds. -
Page 36: Load Fail-Safe Defaults
Mainboard 2.1.8 Load Fail-Safe Defaults It can load Fail-Safe defaults except standard CMOS setup. -
Page 37: Load Optimized Defaults
Mainboard 2.1.9 Load Optimized Defaults It can load the preset system parameter values to set the system in its best performance configurations. -
Page 38: Set Supervisor Password
Mainboard 2.1.10 Set Supervisor Password Set change or disable password. It allows you to limit access to the system and/or BIOS setup. -
Page 39: Set User Password
Mainboard 2.1.11 Set User Password Set change or disable password. It allows you to limit access to the system and/or BIOS setup. -
Page 40: Save & Exit Setup
Mainboard 2.1.12 Save & Exit Setup Save CMOS value settings to CMOS and exit setup. Typing “Y”, you will quit the setup utility and save all the changes into the CMOS memory. Typing “N”, you will return to Setup utility. -
Page 41: Exit Without Saving
Mainboard 2.1.13 Exit Without Saving Abandon all CMOS value changes and exit setup. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility. -
Page 42: S Oftware I Nstallation
Chapter 3 Software Setup 3.1 Software Installation Place the Driver CD into the CD-ROM drive and the Installation Utility will auto-run. You can also launch the Driver CD Installation Utility manually by executing the program located on the Driver CD. (For more details, please refer to the Readme.txt files that in each folder of the Driver.) Driver for XP/ Vista/ Vista 64/ Win7/ Win7 64 Driver for XP 64 ◎The screen and images are only for general reference. - Page 43 When you insert the driver CD into the CD-ROM, you'll see the screen as the picture below. There are several driver buttons displayed in the "Driver Menu" screen, and you can click on the drivers to install. Chipset Driver - It provides the driver of VGA. LAN Driver - It provides the driver of Network.
