- Page 1 LE-363 3.5 inch Embedded Motherboard User’s Manual Edition 1.0 2005/9/16...
- Page 2 LE-363 User’s Manual Copyright Copyright 2004 - 2005. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-363 User’s Manual Packing List Please check the package before you starting setup the system Hardware: LE-363 little board x 1 Cable Kit: 44-pin COM port & Printer Port Cable x 1 Audio Cable x 1 Other Accessories: Divers CD (including User’s Manual) x 1 Printed User’s Manual x 1... - Page 4 LE-363 User’s Manual Chapter 1 <Introduction>...6 1.1 <Product Overview> ...6 1.2 <Product Specification> ...7 1.3 <Mechanical Drawing>...9 1.4 <Block Diagram> ...10 Chapter 2 <Hardware Setup> ... 11 2.1 <Connector Location>... 11 2.2 <Jumper Location & Reference> ...12 2.3 <Connector Reference>...13 2.3.1 <Internal Connector>...
- Page 5 LE-363 User’s Manual A.2 <Floppy Port>...34 A.3 <IrDA Port>...34 A.4 < VGA Port >...34 A.5 <Serial Port>...35 A.6 <LAN Port>...35 A.7 <PS/2 Keyboard & Mouse Port>...35 A.8 < USB Interface >...35 A.9 < LPT Prot Appendix B <Flash BIOS> ...37 BIOS Auto Flash Tool ...37...
-
Page 6: Chapter 1

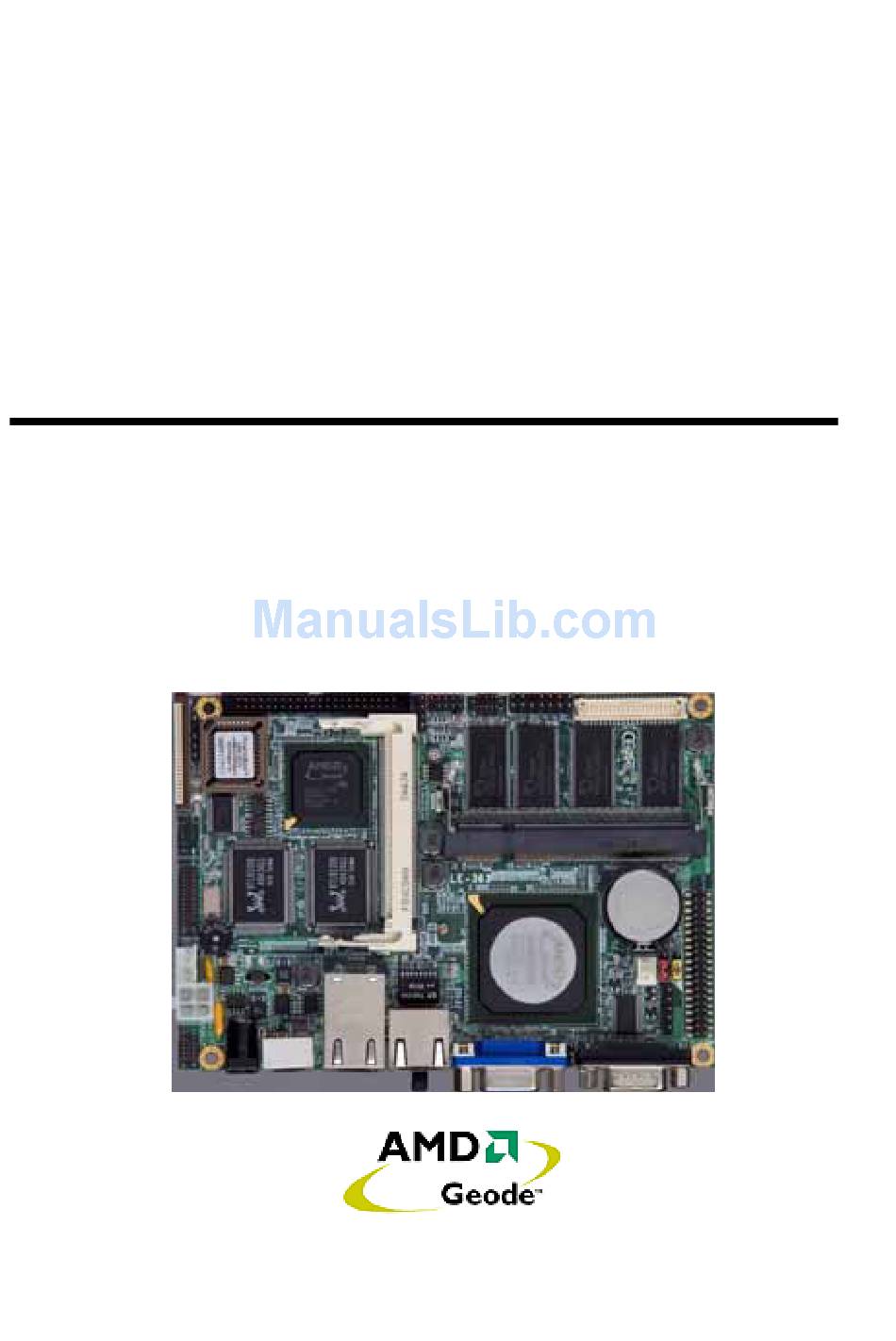

LE-363 is the 3.5 inches embedded motherboard with AMD Geode GX533 platform, with onboard VGA, AC97 audio, dual LAN and DC 12V input interface. Based on the AMD Geode GX533 processor, the board provides many advanced features for reduced power consumption, fanless design and high cost/price rate of production. -
Page 7: Product Specification
Fan speed, CPU temperature and voltage monitoring Monitor VGA Display Interface Chipset AMD Geode GX533 built-in VGA controller with 2D engine Memory BIOS selectable up to 4/8/12/16 MB shard with system memory Display Type CRT, LCD monitor with analog display... - Page 8 Linux Kernel version 2.4 or later Ordering Code LE-363P 3.5 inches embedded motherboard with onboard AMD GX533 400MHz processor, VGA, audio, dual LAN, USB, CF, TTL/LVDS PCMAIC ,Mini PCI , GPIO LE-363-128 Same as LE-363P and with onboard DDR 128M...
-
Page 9: Mechanical Drawing
LE-363 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing... -
Page 10: Block Diagram
LE-363 User’s Manual 1.4 <Block Diagram> VGA monitor TTL/LVDS LCD Ultra DMA33 IDE USB1.1 X 2 AC97 Audio Floppy Serial Port Parallel Port IrDA AMD Geode GX533 Processor PCI/33Mhz CS5535 GPIO BIOS Introduction DDR SO-DIMM up to 512MB Arbitor IT8209... -
Page 11: Chapter 2
LE-363 User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_IR Mini PCI CD IN CN_USB JFRNT CN_LVDS CN_AUDIO CN_COM2 CN_LPT CN_LCD JRTC CN_SPWR CN_JVLCD CN_12V CN_INV CN_DIO DC_IN JCRT/TFTSEL SYSFAN PCMCIA Connector Location... -
Page 12: Jumper Location & Reference
LE-363 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC RTC/CMOS Setting JVLCD LCD Driving Voltage Setting JCRT/TFTSEL Select CRT/TFT Setting Hardware Setup JRTC JVLCD JCRT/TFTSEL Jumper Location & Reference... -
Page 13: Connector Reference
LE-363 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector DIMM Onboard 200-pin DDR SO-DIMM socket 44-pin primary IDE connector 26-pin slim type floppy connector CN_12V 4-pin power supply connector CN_AUDIO 5 x 2-pin audio connector CDIN 4-pin CD-ROM audio input connector... -
Page 14: Cpu & Memory Setup
Hardware Setup 2.4 <CPU & Memory Setup> 2.4.1 <CPU> The board integrates AMD Geode GX533 400MHz processor with special design for power appliance. It requires only 8.4W power consumption at most, and is totally designed for fanless system. 2.4.2 <Memory>... -
Page 15: Cmos Setup
LE-363 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 16: Enhanced Ide & Cf Interface
LE-363 User’s Manual 2.6 <Enhanced IDE & CF Interface> The board supports one Ultra DMA33 IDE interface, dual channel for 2 ATAPI devices. The board also provides a Compact Flash Type I socket on secondary IDE channel and one onboard type I/II PCMICA Card Bus on the solder side. -
Page 17: Floppy Port
LE-363 User’s Manual 2.7 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin ribbon cable in the package to connect the floppy device. Floppy rear side Floppy Port Lift up this plastic bar Slot the cable in (Blue paste for outside) -
Page 18: Ethernet Interface
LE-363 User’s Manual Hardware Setup 2.8 <Ethernet Interface> The board integrates two PCI based Ethernet controller with REALTEK 8100B, full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. RJ45_2 RJ45_1 Ethernet Interface... -
Page 19: Onboard Display Interface
LE-363 User’s Manual 2.9 <Onboard Display Interface> The board integrates AMD Geode GX533 processor with built-in 2D video engine, to provide onboard DB15 VGA connector, 24-bit TTL and 18-bit/24-bit LVDS interface. The built-in 2D video engine supports following specified functions: ●High-performance 2D graphics controller... - Page 20 LE-363 User’s Manual In order to setup the LCD display well, please check the jumper setting before you use. Jumper: JVLCD Type: onboard 3-pin header JVOLT Mode +3.3V Default setting Connector: CN_INV Type: onboard 5-pin header Jumper: JCRT/TFTSEL Type: onboard 3-pin header...
- Page 21 LE-363 User’s Manual Connector: CN_LVDS ( for 24bit Signal channel LVDS panel ) Type: 40-pin header (40 x 2 pitch 2.0 mm) Connector model: Hirose DF13- 40DP-1.25V Signal (18-bit) LCDVCC Onboard Display Interface Signal (24-bit) LCDVCC BTX0- BTX0+ BTX1- BTX1+...
- Page 22 LE-363 User’s Manual Connector: CN_LVDS ( for 18bit Signal channel LVDS panel ) Type: 40-pin header (40 x 2 pitch 2.0 mm) Connector model: Hirose DF13-40DP-1.25V Signal (18-bit) LCDVCC ATX0- ATX0+ ATX1- ATX1+ ATX2- ATX2+ ATXCK0- ATXCK1+ 18-bit Signal Signal (24-bit)
- Page 23 LE-363 User’s Manual Connector: CN_LCD Type: onboard 2 x 20-pin header with housing, pitch=2.0mm To setup the LCD, you need the component below: A panel (support up to 18-bit/24-bit color) with TTL or LVDS interfaces. An inverter for panel’s backlight power.
- Page 24 LE-363 User’s Manual LCD Installation Guide: Preparing the LE-363, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V. If your panel is for TTL interface, you would need a TTL type cable.
- Page 25 LE-363 User’s Manual After hardware setup well, you need to select the panel type in the BIOS. Panel Type Support List: Onboard Display Interface Panel Number Resolution 640 x 480 800 x 600 1024x 768 Hardware Setup...
-
Page 26: Onboard Audio Interface
LE-363 User’s Manual 2.10 <Onboard Audio Interface> The board provides onboard AC97 audio interface with REALTEK ALC201A codec. Please use attached audio cable in the package to have Line-out, Line-in and MIC-in interfaces. Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Line –... -
Page 27: Serial Port
LE-363 User’s Manual Hardware Setup 2.11 <Serial Port> The board provides one RS232 COM port on real I/O panel with DB9 as COM1, onboard CN_COM2 RS232 serial port and one onboard parallel connector. CN_COM2 COM1 CN_LPT Serial Port... -
Page 28: Gpio Interface
LE-363 User’s Manual 2.12 <GPIO Interface> The board offers 8-bit digital I/O to customize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS. The following is a detailed description of how the digital I/O is controlled via software programming. -
Page 29: Power Supply
LE-363 User’s Manual 2.13 <Power Supply> 2.13.1 <Power Input> The board requires DC 12V input with onboard DC jack or 4-pin 12V DC connector. Connector: CN_12V Type: 4-pin standard ATX2.0 +12V power connector Description Ground +12V 2.13.2 <Power Output> The board also provides one 4-pin connector with +5V/+12V output. -
Page 30: Switch And Indicator
LE-363 User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 31: Chapter 3
LE-363 User’s Manual Chapter 3 <BIOS Setup> The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 32 LE-363 User’s Manual (This Page is Left For Blank)
-
Page 33: Appendix A
LE-363 User’s Manual Appendix A <I/O Pin Assignment> A.1 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Reset Ground IOW-/STOP IOR-/HDMARDY IORDY/DDMARDY DACK- LED2 Ground IDE Port I/O Pin Assignment Description Ground Ground Ground Ground Ground... -
Page 34: A.2
LE-363 User’s Manual A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description Ground Ground Ground Ground Ground A.3 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX A.4 < VGA Port > Connector: CRT Type: 15-pin D-sub female connector on bracket... -
Page 35: A.5
LE-363 User’s Manual A.5 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on bracket Description Ground A.6 <LAN Port> Connector: RJ45_1/2 Type: RJ45 connector with LED on bracket Description A.7 <PS/2 Keyboard & Mouse Port> Connector: PS2 Type: 6-pin Mini-DIN connector on bracket... - Page 36 LE-363 User’s Manual A.9 < LPT Port > Connector: CN_LPT Type: 26-pin (13 x 2) header for LPT Ports Description PSTB- PRO1 PRO3 PRO5 PRO7 BUSY SLCT ERR- SLIN- Ground Ground Ground Ground Description PRO0 PRO2 PRO4 PRO6 ACK- AFD-...
-
Page 37: Appendix B
LE-363 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com... - Page 38 LE-363 User’s Manual (This Page is Left For Blank)
-
Page 39: Appendix C
LE-363 User’s Manual System Resources Appendix C <System Resources> C.1 <I/O Port Address Map> I/O Port Address Map... - Page 40 LE-363 User’s Manual...
-
Page 41: C.2
LE-363 User’s Manual System Resources C.2 <Memory Address Map> I/O Port Address Map... -
Page 42: C.3
LE-363 User’s Manual Contact Information C.3 <System IRQ & DMA Resources> C.3.1 <IRQ> C.3.2 <DMA> Contact Information... -
Page 43: Appendix D
LE-363 User’s Manual Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0...GPIO7 bit0……bit7 -o 4E 87 -o 4E 87 -o 4E 2A... -
Page 44: Appendix E
LE-363 User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 45: Contact Information
LE-363 User’s Manual Contact Information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your projects and business.
