Video CRC Error graph

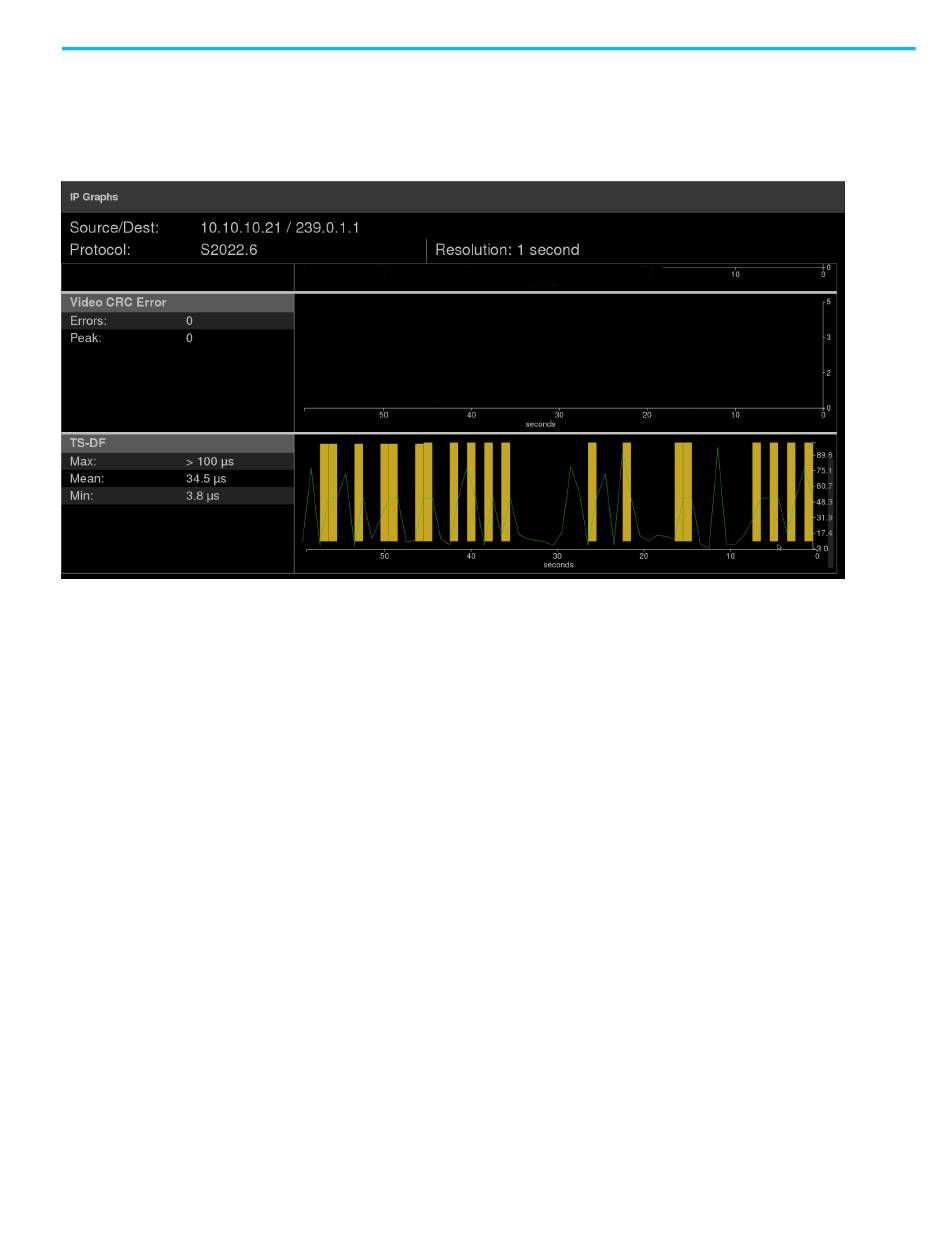

Figure 53: IP Graphs application – Video CRC Error and TS-DF graphs
TS-DF graph
PRISM Media Analysis Platform User Manual
The Video CRC Error graph shows any present CRC errors within the currently
decoded signal and can be compared to other time graphs such as RTP Sequence
Errors.
The TS-DF graph shows the Time Stamped Delay Factor, as defined in
EBU Tech 3337, which is a method for measuring network jitter in RTP streams.
(See Figure 53.)
The graph uses yellow highlighting to indicate an error condition. The example
image above is from a stream with timestamp errors.
Application display information
