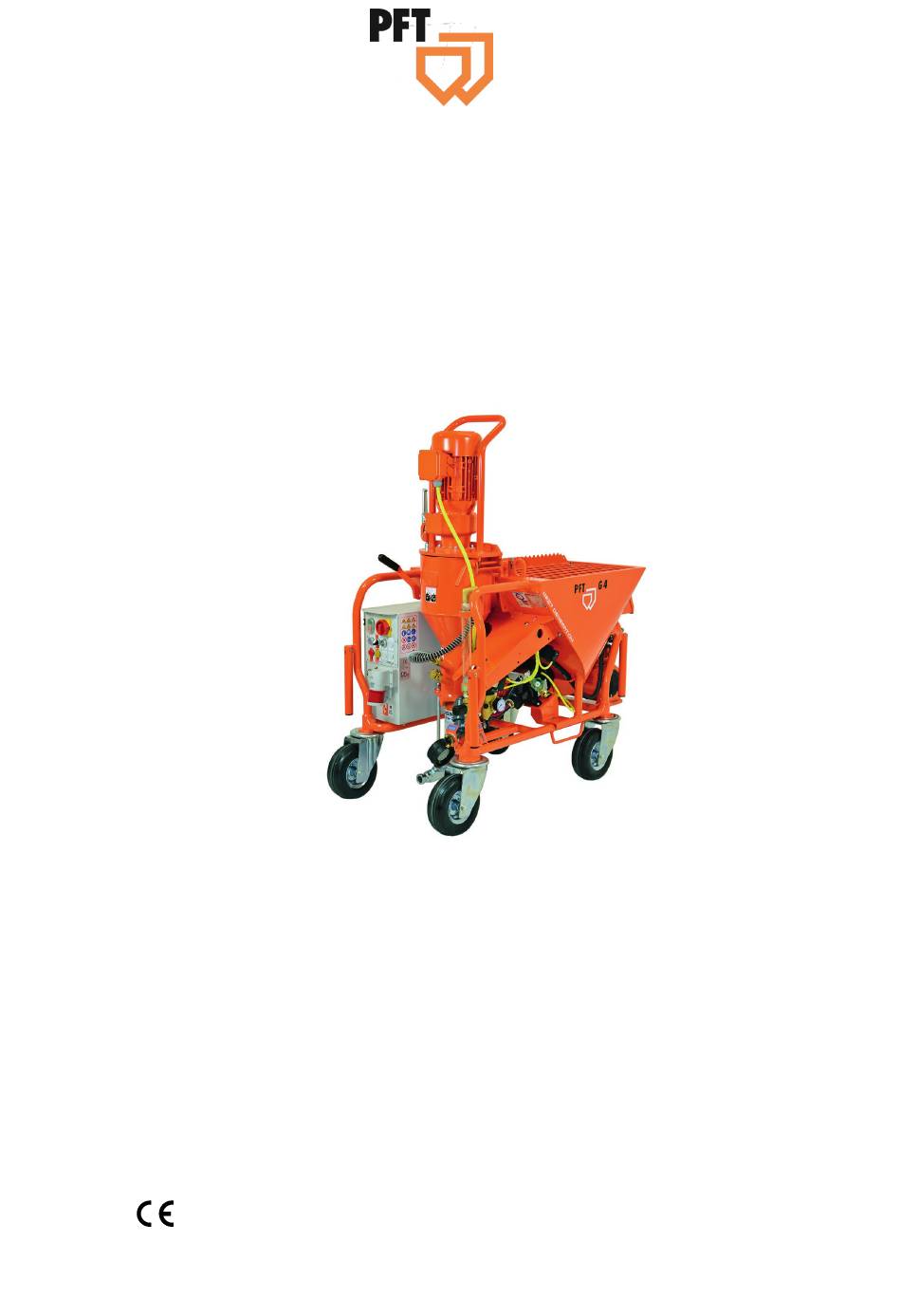

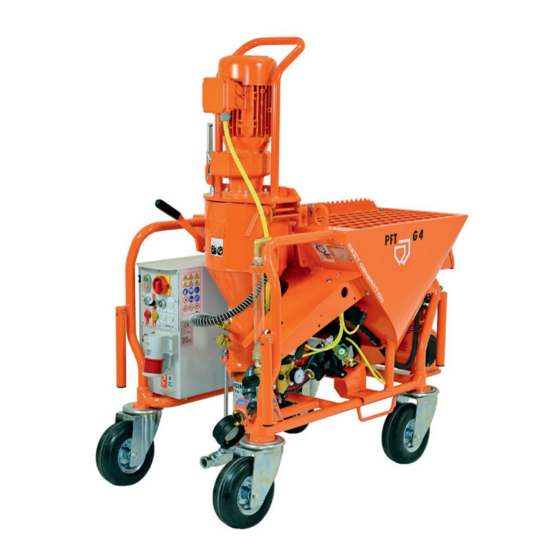

Operating Manual
Mixing pump G 4 X smart
Part 2 EC - Declaration of Conformity
Overview - Operation and service
Article number of the operating manual: 00426926
Article number of the machine: 00257359
Article number of the machine: 00402116
Article number of the machine: 00414170
Article number of the machine: 00414238
Article number of the machine: 00424067
Article number of the machine: 00425824
Article number of the machine: 00430434
Article number of the machine: 00508766
Article number of the machine: 00517997
Article number of the machine: 00541804
Article number of the machine: 00591126
Article number of the machine: 00655335
Article number of the machine: 00260622
Article number of the machine: 00403628
Article number of the machine: 00419620
Article number of the machine: 00423938
Article number of the machine: 00425128
Article number of the machine: 00427200
Article number of the machine: 00434293
Article number of the machine: 00510836
Article number of the machine: 00534352
Article number of the machine: 00583696
Article number of the machine: 00593436
Article number of the machine: 00671959
Read the operating manual prior to starting any work!
