Front Panel; Rear Panel - Mat-Tuner mAT-Y200 Instructions

mAT-Y200 has a working frequency range of 1.8-54MHz and a maximum allowable RF
power of 200 watts.
through a control cable mAT-CY. The transmitter supplies power to the tuner through this
cable, communicates with it and controls the operation of the tuner. The tuner does not
require additional power supply. The tuner can track and synchronize the frequency data
with the transmitter, just like the classic mAT-30 tuner, which makes the operation of the
tuner very convenient.
It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an
amazing range of antennas and impedances, far greater than some other tuners you may
have considered, including the built-in tuners on many radios.

FRONT PANEL

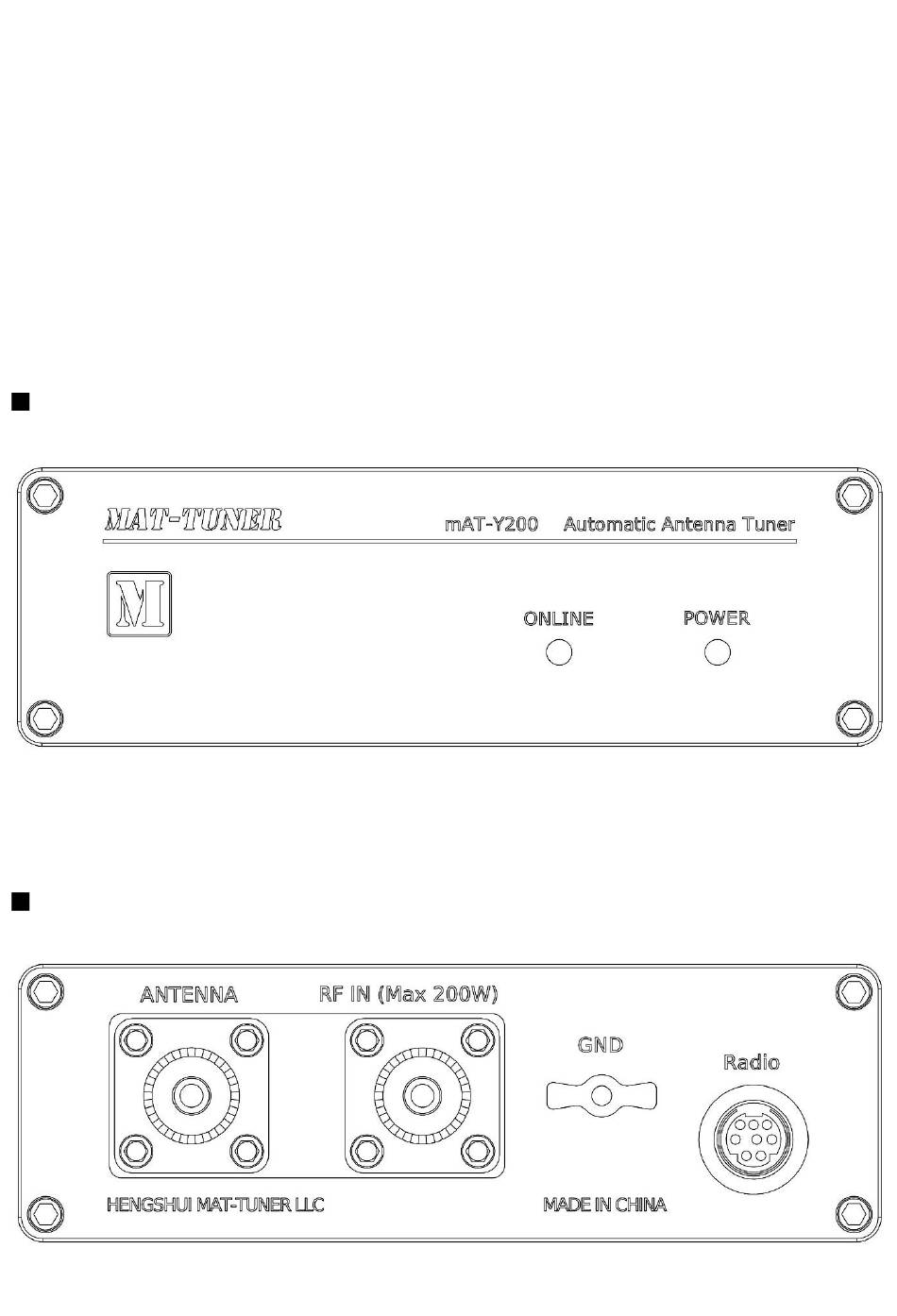

The front panel of the tuner has 2 indicator lights, as shown in the figure.
ONLINE: Status indication. Lights up to
indicate that the tuner is online, off-
indicates that the tuner is bypass.

REAR PANEL

The figure below is the rear panel of the tuner.
As an external antenna tuner, it is connected to the transmitter
POWER: Power light
When the tuner is working, lit green.
