Summary of Contents for ARAG Orion

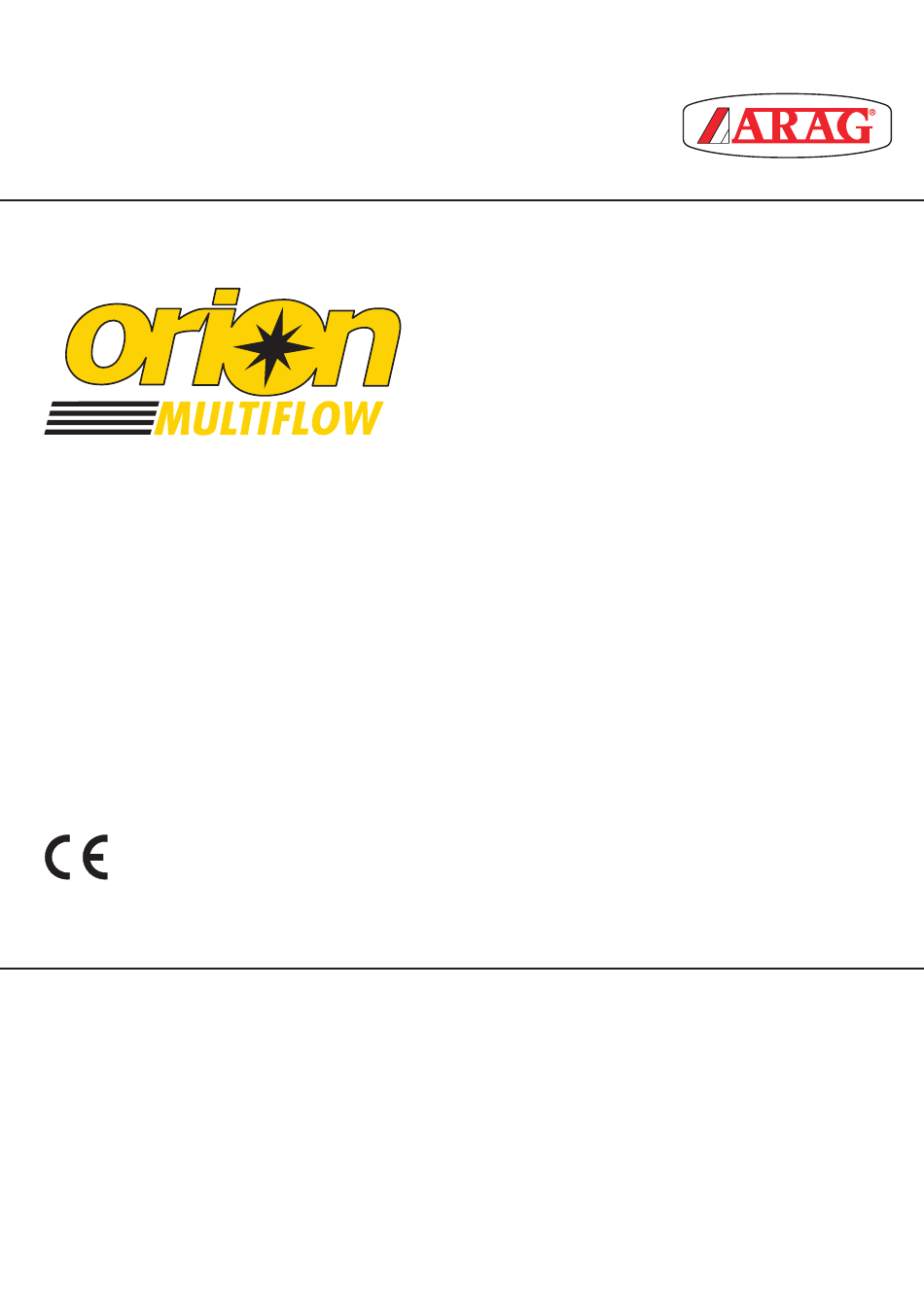

- Page 1 MULTICHANNEL ELECTROMAGNETIC FLOWMETER WITH CAN BUS CONNECTION 4625AAGB1B1 Software rel. 1.0.x INSTALLATION, USE AND MAINTENANCE...
-
Page 2: Table Of Contents
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for future reference; ARAG reserves the right to modify the specifications and instructions regarding the product at any time and without prior notice. -
Page 3: Risks And Protections Before Assembly
INTENDED USE Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems. The flowmeter is provided with a CanBus port that allows its connection to the network with other flowmeters to monitor up to 48 lines through a single wiring. -
Page 4: Position On Farming Machine
(Ref. ARAG General catalogue). ARAG is not liable for damage to the system, persons, animals or things caused by the use of material other than specified. - Install the flowmeter using the suitable fasteners (Fig. 2): insert the hexagon-head screws (M8 or 5/16 UN) into their seats and slide them into the latched position to keep them from coming off. - Page 5 INSTALLATION - To ensure trouble-free operation, comply with the indicated installation layout (Fig. 4 and Fig. 5); HORIZONTAL ASSEMBLY Fig. 4 VERTICAL ASSEMBLY Fig. 5 DO NOT FIT THE FLOWMETER WITH THE ELECTRIC CONNECTIONS FACING UP (Fig. 6). Fig. 6 - Comply with the correct fluid inlet-outlet direction, as indicated by the arrow printed on the flowmeter cover (Fig.
-
Page 6: Electric Connections
Connect the wiring to the relevant connector; make sure it is correctly fitted and push it until locking it. The Orion Multiflow flowmeter has been designed to be connected to ARAG devices (computers, screens, displays) but can also be connected to equipment made by other manufacturers as long as they are designed for flowmeters of this typology. -
Page 7: Hydraulic Connections
Regarding connections, use tubes and fittings properly sized for the operating pressure of the system. Use Arag T1 fittings (see general catalog) with male fork coupling. Do not use elbow fittings. WARNING: For the implementation on already operating systems it is necessary to follow all safety rules described herein. -
Page 8: Use
- Use the flowmeter only within the flow limits given in the “Technical data” table. Outside these limits, the flowmeter could give incorrect data and therefore lead the operator or the automatic system to make errors. ARAG cannot be held responsible for damage caused to persons, animals or things by incorrect or unsuitable use of the flowmeter or its parts. -
Page 9: Maintenance
The value read by the flowmeter is not linear or stable Presence of turbulence or air in the circuit • Check the circuit. Tab. 6 TECHNICAL DATA Description Orion Multiflow Power supply 9 ÷ 15 Vdc Max. absorption 600 mA Min. -
Page 10: End-Of-Life Disposal
This device contains a lithium polymer battery that, at end of life, must be disposed of according to the prevailing rules. GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). - Page 12 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to ARAG spare parts catalog. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...
