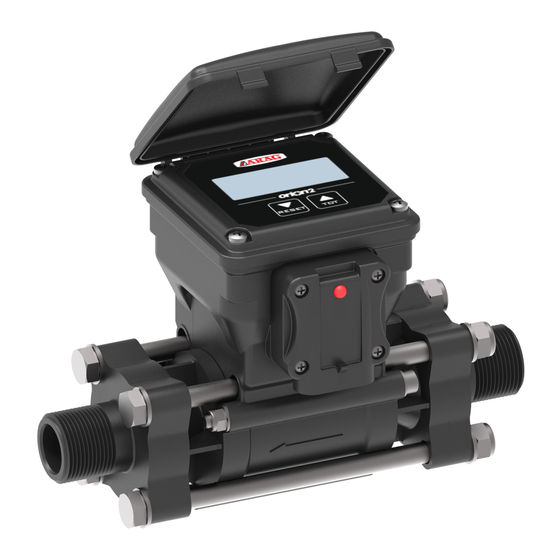

ELECTROMAGNETIC FLOWMETER
46212AXXXXX
46222AXXXXX
INSTALLATION, USE AND MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion 2 VisualFlow 46212A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ARAG Orion 2 VisualFlow 46212A Series

  • Page 1 ELECTROMAGNETIC FLOWMETER 46212AXXXXX 46222AXXXXX INSTALLATION, USE AND MAINTENANCE...
  • Page 2: Table Of Contents

    This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for future reference; ARAG reserves the right to modify the specifications and instructions...
  • Page 3: Product Description

    For proper sealing of the flowmeter, use ARAG assembly kit ONLY (Ref. ARAG General catalogue - Accessories for series 863/873/463/473 modular valves). ARAG is not liable for damage to the system, persons, animals or things caused by the use of material other than specified. Fig. 1...
  • Page 4: Assembly

    Assembly To ensure trouble-free operation, comply with the indicated installation layout (Fig. 3a and Fig. 3b). The connector must NEVER be positioned upwards. HORIZONTAL ASSEMBLY Fig. 3a VERTICAL ASSEMBLY Fig. 3b - Comply with the correct fluid inlet-outlet direction, as indicated by the arrow printed on the flowmeter body (Fig. 4). Fig.
  • Page 5: Electric Connections

    Electric connections The Orion 2 Visual Flow flowmeter has been designed to be connected to ARAG devices (computers, screens, displays) but can also be connected to equipment made by other manufacturers as long as they are designed for flowmeters of this typology.
  • Page 6: Preliminary Setup For Use

    PRELIMINARY SETUP FOR USE Access to "COST" setup menu The right "constant" needs to be programmed in order to visualize the data on the display correctly. WARNING: this data has already been entered in the production phase. If the value measured by the flowmeter is different from the actual sprayed value, the precise constant that needs to be entered can be calculated by using the following formula: [quantity measured by the device] x [constant indicated on the flowmeter body]...
  • Page 7: Opt" Advanced Menu

    "OPT" Advanced menu Upon installation of the flowmeter in the filling system some settings are needed to properly display the filling data: • Operation mode • Unit of measure • Valve operation time To access the Advanced menu, keep the key pressed while switching ON the device until the "OPT" screen appears.
  • Page 8: Use

    ARAG cannot be held responsible for damage caused to persons, animals or things by incorrect or unsuitable use of the flowmeter or its parts. Mode 0 - Mode 2 Use 4.1.1...
  • Page 9: Mode 1 Operation

    4) The count will end and the display will show the programmed amount of liquid. (*) The loading can be automatically started/stopped only if flowmeter is connected to ARAG Pump Stop Module (code 4622BA50000.200). If not, the flowmeter will not be able to start or stop the pump on its own and will work as a display only.
  • Page 10: Maintenance

    4.2.3 Reaching the full scale 1) The counter displays this screen when the full-scale value (9999 liters - Gal) is reached, and it therefore becomes necessary to reset the counter. 2) To reset the count of the total amount of liquid introduced into the tank, keep RESET key pressed until "RST" screen appears. MAINTENANCE - After every spraying operation, flush the pipe with clean water.
  • Page 11: Technical Data

    Technical data Power supply 10 ÷ 16 Vdc Max. absorption 300 mA Min. liquid conductivity 50 μS/cm 0 °C ÷ 60 °C Working temperature 32 °F ÷ 140 °F -30 °C ÷ 80 °C Storage temperature -22 °F ÷ 176 °F Nylon / Brass / Polypropylene / Material Stainless Steel Inox...
  • Page 12: Guarantee Terms

    GUARANTEE TERMS ARAG s.r.l. guarantees this apparatus for a period of 360 day (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Centre operating at the moment the request for intervention is made.
  • Page 13 Note...
  • Page 14 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the internet address www.aragnet.com Via Palladio, 5/A 42048 RUBIERA (Reggio Emilia) - ITALY Tel. +39 0522 622011 Fax +39 0522 628944 www.aragnet.com...
