- Page 1 ELECTROMAGNETIC FLOWMETER 46211AXXXXX 46221AXXXXX INSTALLATION, USE AND MAINTENANCE...
-
Page 2: Table Of Contents
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for future reference; ARAG reserves the right to modify the specifications and instructions... -
Page 3: Product Description
For proper sealing of the flowmeter, use ARAG assembly kit ONLY (Ref. ARAG General catalogue - Accessories for series 463/473 modular valves). ARAG is not liable for damage to the system, persons, animals or things caused by the use of material other than specified. Fig. 1... - Page 4 Dimensions (mm) Fig. 2 CODE flange 46211AG0000 46211A00000 46211A10000 46211A20000 46211A30000 46211A40000 18,5 46221A40000 18,5 46221A50000 46221A60000 46221A70000 Tab. 1...
-
Page 5: Dimensions (Mm)
Dimensions (mm) Fig. 3 CODE 46211AG1313 G 3/4 46211AG3333 G 3/4 46211A01313 G 3/4 46211A03333 G 3/4 46211A11313 G 3/4 46211A13333 G 3/4 46211A21313 G 3/4 46211A23333 G 3/4 46211A31414 46211A33434 46211A41414 18,5 46211A43434 18,5 46211A41515 18,5 G 1 1/4 46221A51515 G 1 1/4 46221A51616... - Page 6 Dimensions (mm) Fig. 4 CODE 46211A3A5B5 46211A4A5B5 18,5 Tab. 3...
-
Page 7: Assembly

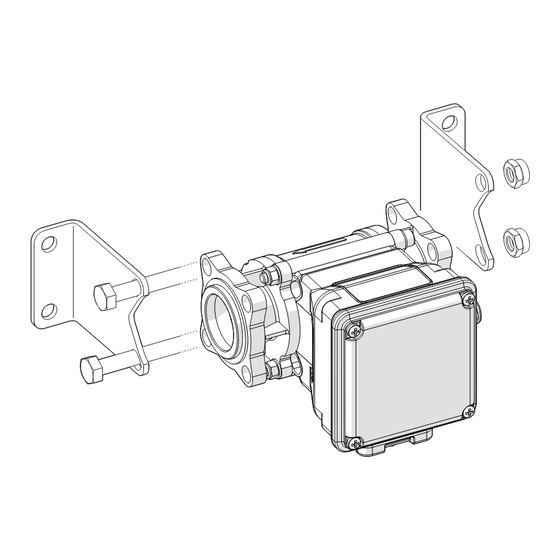

Assembly To ensure trouble-free operation, comply with the indicated installation layout (Fig. 5a and Fig. 5b). The connector must NEVER be positioned upwards. HORIZONTAL ASSEMBLY Fig. 5a VERTICAL ASSEMBLY Fig. 5b - Comply with the correct fluid inlet-outlet direction, as indicated by the arrow printed on the flowmeter body (Fig. 6). Fig. -
Page 8: Electric Connections
Electric connections The Orion 2 flowmeter has been designed to be connected to ARAG devices (computers, screens, displays) but can also be connected to equipment made by other manufacturers as long as they are designed for flowmeters of this typology. -
Page 9: Hydraulic Connections For Control Units
If you need to integrate the flowmeter in an existing tie rod control unit previously configured without a flowmeter, remember to order new tie-rods in order to reconstruct the unit correctly after the flowmeter has been incorporated (Ref. ARAG general catalog, control unit section, assembly kit). -
Page 10: Preliminary Setup For Use
- Use the flowmeter only within the flow limits given in the “Technical data” table. Outside these limits, the flowmeter could give incorrect data and therefore lead the operator or the automatic system to make errors. ARAG cannot be held responsible for damage caused to persons, animals or things by incorrect or unsuitable use of the flowmeter or its parts. -
Page 11: Maintenance
MAINTENANCE - After every spraying operation, flush the pipe with clean water. - In case of malfunction, and at any rate at the end of every season, clean the flowmeter pipe with a special detergent. - Do not use metal or abrasive objects for cleaning the duct. - Do not use solvents or petrol for cleaning the external parts of the device. -
Page 12: Technical Data
Technical data Pulses Internal Operating Pressure drop at passages For valves Flowrate pressure maximum flowrate (Ø mm) P max P max P max P max pls/ CODE l/min. US GPM pls/l (BAR) (PSI) (BAR) (PSI) US GAL 46211AG0000 0,3 ÷ 6 0,08 ÷... -
Page 13: Guarantee Terms
GUARANTEE TERMS ARAG s.r.l. guarantees this apparatus for a period of 360 day (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production pro- cess, will be repaired or replaced free of charge at the nearest Assistance Centre operating at the moment the request for intervention is made. - Page 15 C o n f o r m i t y D e c l a r a t i o n ARAG s.r.l. Via Palladio, 5/A 42048 Rubiera (RE) - Italy P.IVA 01801480359 Dichiara che il prodotto descrizione: Flussometro elettromagnetico...
- Page 16 Only use original ARAG accessories and spare parts, to maintain safety conditions foreseen by the constructor. Always refer to the ARAG spare parts catalogue. Via Palladio, 5/A 42048 RUBIERA (Reggio Emilia) - ITALY Tel. +39 0522 622011 Fax +39 0522 628944 www.aragnet.com...
