- Page 1 MONITOR FOR SEEDER 46707001 Software rel. 1.0X INSTallaTION...
-
Page 2: Legend Symbols
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for future reference; ARAG reserves the right to modify the specifications and instructions regarding the product at any time and without prior notice. -
Page 3: Table Of Contents
CONTENTS Legend symbols.......................2 1 Product description ......................4 Intended use ......................4 2 Precautions ........................4 3 Contents of the package ....................4 4 Installation ........................5 System layout......................5 Monitor overall dimensions ..................6 Monitor installation ....................6 Sensors and wiring installation ................7 4.4.1 Seed and fertilizer sensors installation in the outlet pipe ........7 4.4.2 Alfa-Bus interface positioning ................8 4.4.3... -
Page 4: Product Description

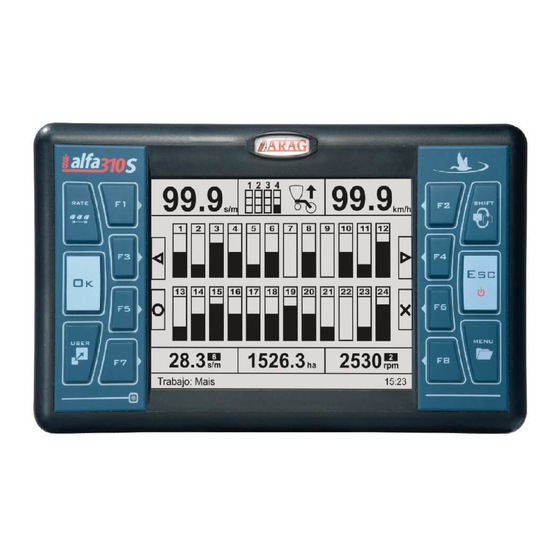

Product descriPtion Alfa 310S is a monitor that accurately displays seeding data and warns about any malfunction. Intended use This device is designed for installation on farming machines for precision seeding. The machine is designed and built in compliance with EN ISO 14982 standard (Electromagnetic compatibility - Forestry and farming machines), harmonized with 2004/108/CE Directive. -
Page 5: Installation
installation System layout Fig. 2... -
Page 6: Monitor Overall Dimensions
58.80 Fig. 3 Monitor installation Alfa 310S monitor shall be positioned in the farming machine cabin. Consider the following warnings: - Do NOT install the monitor in areas where it would be subjected to excessive vibra- tions or shocks, to prevent any damage or accidental use of the control keys;... -
Page 7: Sensors And Wiring Installation
Fig. 5c Fig. 5a ARAG will not be liable for damages to equipment or property, injury to persons, animals or things due to wrong or unsuitable use or connection of the sensor. Warranty becomes null and void in case of damages to sensor due to the above. -
Page 8: Alfa-Bus Interface Positioning
4.4.2 Alfa-Bus interface positioning Position the Alfa-Bus interface in a sheltered place, next to the sensors it is to be connected to, and make sure that all cables can reach the device. Fig. 6a Fig. 6b Fig. 6c CAUTION: route wiring in a bend, as shown in Fig. 6a. - Fasten Alfa-Bus interface using the supplied screw. -
Page 9: Monitor And Sensors Electrical Connections
- Fasten the wiring so that it will not interfere with moving organs; lay down wiring making sure that cables will not fail or get damaged by twisting or machine movements. ARAG will not be liable for damages to equipment or property, injury to persons, animals or things due to failure to comply with the above. -
Page 10: Connection To Power Supply
Before powering the monitor and system on, make sure that battery voltage is correct (12 Vdc). Alfa 310S is directly powered by the farming machine battery (12 Vdc): ALWAYS switch monitor on through the relevant procedure; after use, remember to manually switch monitor off through the relevant push-button on control panel. -
Page 11: Sd Memory Card
SD memory card The SD memory card is used for exchanging data across Alfa 310S and a Personal Computer. Before use, make sure the card is unlocked - writing allowed (Fig. 12b). Fig. 12a Fig. 12b ALWAYS switch device off before inserting or removing the SD memory card. -
Page 12: Machine Settings Menu
Machine settings Menu Please find a detailed description of the procedure in the manual (CD-ROM). Using the keys Machine Settings selection and access to Menu iteMs Seed sensors number: Fertilization: None a Press repeatedly to toggle from one item to ano- Shaft Sensors No.: Seed State Sensor: Disabled... -
Page 13: Fertilization
Fertilization Set the number and layout of fertilizer sensors that will be connected to the monitor. It is possible to install up to 2 fertilizer sensors per seed row (Fig. 17): - None (Default), Single, Double. In both cases fertilization could be either total or partial (Default: partial): - Total = sensors are on all seed rows (see example in Figures 18 and 19) - Partial = sensors are on a few seed rows only (see example in Fig. -
Page 14: Rpm Counter
RPM counter Set RPM counters, if any; by default this field is disabled (Fig. 21): enter constant value to enable them (Fig. 22); Set minimum and maximum speed alarms: out of set range the monitor will trigger an alarm (Fig. 23). Fig. -
Page 15: Sensors Management
Connect sensors (Fig. 25) one at a time: the monitor will acknowledge connection and allocate a name in this sequence. Alfa 310S beeps once after connection of a sensor and twice to indicate that function was stored. Unlike seed and fertilizer sensors, when connecting an Alfa-Bus interface, the monitor prompts user to specify the type of sensor installed. -
Page 16: Programming Overview
It is possible to quit programming mode at any time: If you choose to quit programming mode any unprogrammed sensors will not be recognized by the system. Fig. 27 5.7.2 Programming overview It is possible to display a programming overview at any time during the procedure: Assign functions Assign functions Seed... -
Page 17: Programming The Alfa-Bus Interfaces (For Speed, Rpm Counter, Etc.) Upon Connection
- Connect all sensors and interfaces but make sure you remember the connection sequence of the latter; Alfa 310S displays the page shown in Fig. 29; - Select the sensor and program every connected sensor, as described under Par. 5.7.3. -
Page 18: Delete All
5.7.5 Delete all This operation is necessary any time the Assign functions procedure shall be repeated: for a correct programming, it is compulsory to delete previously allocated functions. Fig. 31 Fig. 32 5.7.6 Sensors programming errors Function can not be allocated to sensor, due to various communication errors: - Change the sensor;... -
Page 19: Sensors Programming After Replacement
- Switch monitor on: Alfa 310S will automatically program the function if just one sensor is replaced. If many sensors are replaced, Alfa 310S will display the page shown Fig. 36: in this instance, select the function to allocate to replaced sensor and press - Switch monitor off and repeat the procedure for every sensor. -
Page 20: Maintenance / Diagnostics / Repair
Check the led on the sensor: Seed sensor XX ! No signal • Led off: check sensor connections. Alfa 310S is not receiving the signal from seed • Led on: replace the sensor and carry out the procedure sensor on line XX described under Par. - Page 21 Impeller X speed is below minimum set value (ref. Par. 7.3 and 7.5 - Use and actual speed, check RPM sensor constant setting and sensor maintenance manual ARAG D20197) installation. SD card not available • Insert the SD card and press...
-
Page 22: Technical Data
Description alfa 310s Monitor Display Graphic LCD 320 x 240 white backlighting Power supply 10 ÷ 15 Vdc Maximum current input 250 mA Internal fuse 5 A self-resetting Type of sensors that can be connected Alfa-Bus Max. no. of sensors that can be connected operating conditions 0 °C ÷... -
Page 23: Use Of The Enclosed Cd-Rom
use of the enclosed cd-roM (aPPendiX) The product you purchased comes with a CD-ROM containing the manuals for installation, use and maintenance in all available languages at the time of purchase. The CD-ROM is compatible with all Microsoft Windows systems and, if autorun function is enabled, ®... - Page 24 Notes...
- Page 25 Notes...
-
Page 26: Guarantee Terms
1. ARAG s.r.l. guarantees this apparatus for a period of 360 day (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Centre operating at the moment the request for intervention is made. - Page 27 C o n f o r m i t y D e c l a r a t i o n ARAG s.r.l. Via Palladio, 5/A 42048 Rubiera (RE) - Italy P.IVA 01801480359 Dichiara che il prodotto descrizione: monitor per semina...
- Page 28 Only use original ARAG accessories and spare parts, to maintain safety conditions foreseen by the constructor. Always refer to the ARAG spare parts catalogue. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...
