Summary of Contents for ARAG orionX
- Page 1 ELECTROMAGNETIC FLOWMETER VISUALFLOW 4629XXXX INSTALLATION, USE AND MAINTENANCE...
-
Page 2: Table Of Contents
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specifications and... -

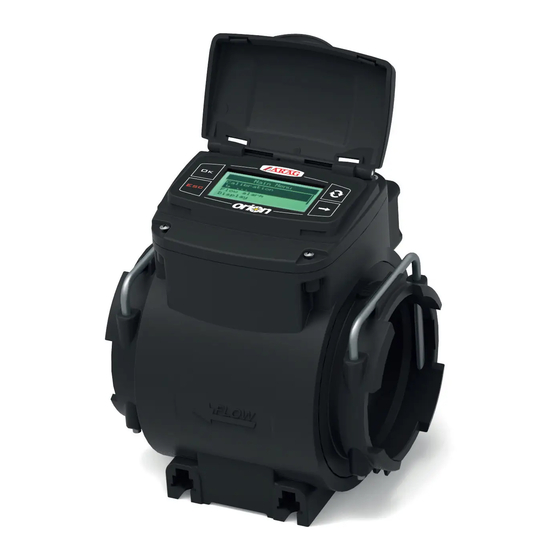

Page 3: Product Description
CanBus (A-net) outputs. FREQ The connecting cables must be ordered separately (refer to ARAG General Catalog). ORION X must be connected with two T9 fork fittings and relevant O-rings. Connectors must be inserted with special care in order not to... -
Page 4: Positioning
Upstream and downstream the flowmeter it is recommended to install two pipe straight lines whose length is at least 10 times the inner diameter of OrionX (75mm x 10 = 750 mm). Install the flowmeter far from the elements that could cause turbulence inside the pipe (valves, bends, bottlenecks, etc.). -
Page 5: Connections, Cables And Pin Outs
THE CONNECTING CABLES MUST BE ORDERED SEPARATELY. HYDRAULIC CONNECTIONS For the connection to the system, use T9 fittings with fork coupling (Ref. ARAG General catalog). Avoid bottlenecks or twists before the fittings and on pipes. For the connections, use pipes and fittings duly dimensioned for system operating pressure (MAX 5 bar). -
Page 6: Preliminary Setup For Use
“Technical Specifications” table. Outside this range, the flowmeter may provide incorrect data, thus misleading the operator or the automatic system. ARAG can not be held responsible for any damage caused to persons, animals or things from the incorrect or unintended use of the flowmeter or its parts. -
Page 7: Structure Of The Setting Menu (Orion X Visualflow)
ORION X VISUALFLOW) STRUCTURE OF THE SETTING MENU ( (1): Item available only if the “Volume Counter” operating mode has been selected. (2): Item available only if the “Filling Check” operating mode has been selected. - sensor: the part of the flowmeter carrying out the liquid reading and generating the output in frequency and CANBUS (it is present both in ORION X and ORION X VISUALFLOW versions) - display: available only in the ORION X VISUALFLOW version, it communicates with sensor electronics and allows displaying / editing the flowmeter parameters. - Page 8 Menu Description Sensor > Maintenance > Cleaning status Sens Function Enabling/Disabling the cleaning of sensor reading heads. Alarms > Min. flowrate Minimum flowrate value under which the relevant alarm is activated Alarms > Max. flowrate Maximum flowrate value above which the relevant alarm is activated Options >...
-
Page 9: Use For Flowrate Measurement
Use for flowrate measurement Start liquid flow in the system. The display will start showing the increasing value of the measured fluid quantity and instant flowrate. Press the key several times to view a value in extended mode until it is displayed on the central part. -
Page 10: Use For Tank Filling Function
Use for tank filling function - top part: item Start refers to the key on the side allowing user to start the procedure (key - central part: the value is the set filling quantity (in liters). On the side, the symbol is displayed;... -
Page 11: Maintenance
High flowrate! Check the set values. threshold. shows an error "WARNING! WRONG V.x.x.x! Contact an ARAG authorized Service Center to Obsolete firmware version. LED ON Upgrade OrionX to the check whether the firmware has to be updated. V x.x.x Firmware Version"... -
Page 12: Technical Data
TECHNICAL DATA DIMENSIONS PERFORMANCE Measuring range ........... 50÷2500 l/min - 13÷660 GPM Accuracy ..............+/- 1% of the measured value, 250 to 2500 l/min Maximum pressure ..........5 bar - 72 PSI Liquid minimum conductivity ......... 300 uS/cm Pressure drop at maximum flowrate ...... 0.3 bar - 44 psi No liquid detection .......... -
Page 13: Physical Features
PHYSICAL FEATURES Nominal passage ..........DN75 Weight ..............906 ÷ 1670 g (according to the type) Flange ..............T9 Coupling / Clamp Coupling 3” Full Port MATERIALS Electrodes ............. Stainless steel Aisi 316 Rings ..............Stainless steel Aisi 316 Body ..............fiber glass reinforced PA 6 Pipe ............... -
Page 14: Guarantee Terms
GUARANTEE TERMS ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production pro- cess, will be repaired or replaced free of charge at the nearest Assistance Center operating at the moment the request for intervention is made. - Page 15 Notes...
- Page 16 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the internet address www.aragnet.com Via Palladio, 5/A 42048 RUBIERA (Reggio Emilia) - ITALY Tel. +39 0522 622011 Fax +39 0522 628944 www.aragnet.com...
