- Page 1 digi CELL POWERED VERSION 4628405 4628506 4628707 Software rel. 1.0X INSTALLATION, USE AND MAINTENANCE...
- Page 2 This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for future reference; ARAG reserves the right to modify the specifications and instructions...
-
Page 3: Table Of Contents
CONTENTS 1 Product description ................................4 Intended use................................4 2 Flowmeter assembly ................................. 4 Monitor rotation ................................5 Dimensions (mm) ............................... 6 Hydraulic connections ..............................6 2.3.1 Hydraulic connection for brass/fork connections ....................... 6 Power supply ................................7 2.4.1 Battery replacement ..............................7 3 Controls in the menu ................................. -
Page 4: Product Description

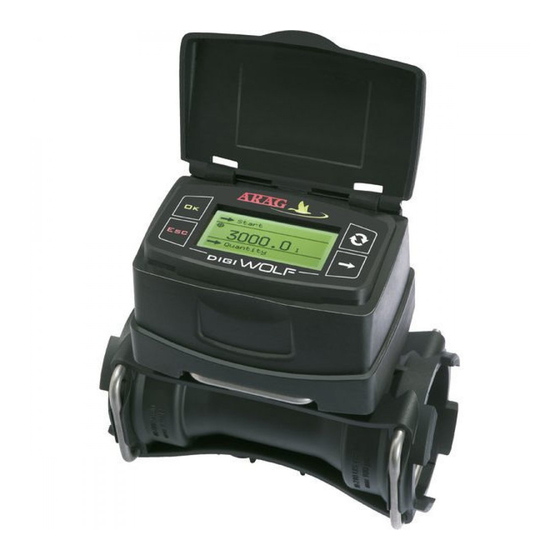

INTRODUCTION PRODUCT DESCRIPTION DigiWolf is a battery powered paddle flowmeter capable of measuring the rate of a fluid in a hydraulic circuit, and it can display the results of these measurements. Intended use This device is designed to work on agricultural machinery for crop spraying applications. The machine is designed and built in compliance with EN ISO 14982 standard (Electromagnetic compatibility - Forestry and farming machines), harmonized with 2004/108/EC Directive. -
Page 5: Monitor Rotation
INSTALLATION Monitor rotation In case of vertical assembly, to simplify the use of the DigiWolf it is possible to rotate the monitor by 90° with respect to the body (Fig. 3). Fig. 3 1) Remove the fork from the monitor using a screwdriver. 2) Remove the monitor from the flowmeter body. -
Page 6: Dimensions (Mm)
Avoid bends and constrictions before connections and on tubes. Use ARAG connections with their suitable OR with MALE CONNECTIONS [T connections - General Catalogue (Tab. 2)]. The tubes must be able to stand a pressure of at least twice the max. operation pressure of the flowmeter (Tab. 2) CONSIDERING THE OPERATION PRESSURES WITHIN THE SYSTEM. -
Page 7: Power Supply
Do not try to recharge the batteries. ARAG is not liable for damage to the equipment, persons, animals or things caused by failure to observe the above instructions. Do not dispose of exhausted batteries in the environment. Dispose of in a suitable container. -
Page 8: Controls In The Menu
SETUP CONTROlS IN THE mENU SwITCH ON The display turns on automatically at liquid passage. If you need to switch on the device to check or modify data, press 0.0 l DigiWolf switches on and displays the figure shown. Press the key to see the succession of different values written in full (central part 0.0 l/min of the display). -
Page 9: Menu Structure
SETUP mENU STRUCTURE Calibration Auto calibration Setup menu Man. calibration Par. 4.1.1 Calibration Calibration Flowrate alarms Display Auto calibration Man. calibration Par. 4.1.2 Flowrate alarms Min flow alarm Setup menu Max flow alarm Par. 4.2 Calibration Flowrate alarms Flowrate alarms Display Min flow alarm Switch on... -
Page 10: Preliminary Setup For Use
SETUP PRElImINARY SETUP FOR USE For a correct display of data regarding treatment, some preliminary set ups are necessary when installing DigiWolf on farming machines. Calibration Rate reading may not be correct due to different system configurations (tubes, valve, etc.). Therefore, we recommend to make a spray test;... -
Page 11: Manual Calibration
SETUP 4.1.2 Manual calibration To set the flowrate constant manually, calculate and set the correct constant using the following formula: [amount measured by device] x [constant indicated on flowmeter body] [actually delivered quantity] 1) Access Manual calibration menu (Setup menu > Calibration > Man. calibration). Calibration Auto calibration In Calibration menu, selecting Manual calibration, under the item the curren-... -
Page 12: Flowrate Alarms
SETUP Flowrate alarms Set the minimum and maximum values beyond which the display must show an alarm message. 1) Access Flowrate alarms menu (Setup menu > Flowrate alarms). Flowrate alarms Min. and max. flowrate alarms setting is done in the same way. Min flow alarm 6.00/min Under the selected item, the currently set value will be displayed. -
Page 13: Energy Saving
SETUP Energy saving DigiWolf allows the setting of some parameters in order to prolong battery life: - Backlight shut-off: it is possible to set a time in seconds after which the backlight will turn off automatically if no key is pressed. - Display shut-off: it is possible to set a time in minutes after which the display will turn off automatically if no key is pressed and there is no liquid flow. -
Page 14: Units Of Measurement
SETUP 4.5.2 Units of measurement Set units of measurement for flowrate values and volume read by the device. 4.5.2.1 Rate units of measurement Access instant rate units of measurement menu (Setup menu > Options > Units of measurem. > Flowrate). Units of measurem. -
Page 15: Test
SETUP Test In this menu is it possible to see some information and run a device operation test: - Firmware version: the display shows the firmware version installed on the device. - Sensor frequency: in the presence of flow passage, the display shows in real time the frequency of the signal from the sensor reading the flowrate. - Battery voltage: the display shows the voltage level of the batteries in the device. -
Page 16: Use
- To avoid damaging the flowmeter, do not exceed the maximum rate except for short periods. ARAG can not be held responsible for damage caused to persons, animals or things from the incorrect or unintended use of Digiwolf or its parts. -
Page 17: Cleaning And Repair
MAINTENANCE ClEANING AND REPAIR - At the end of each treatment, run clean water through the tubes. - If necessary, periodically clean or replace the flowmeter paddle (Par. 6.2). Periodically clean the paddle anyway. Do not use metal or abrasive objects to clean the paddle. Do not use solvents or fuel to clean the case outer surface. -
Page 18: Paddle Cleaning And Replacement
MAINTENANCE Paddle cleaning and replacement lock unlock Fig. 43 Fig. 44 Fig. 45 1) Remove the fork from the monitor using a screwdriver. 2) Remove the monitor from the flowmeter body. 3) Unscrew the ring nut in a counter clockwise direction and remove the sensor housing block from the flowmeter body. 4) With half a rotation, remove the paddle group from the sensor housing block in a counter clockwise direction. -
Page 19: Or Replacement
1) Remove the fork from the ring nut using a screwdriver. Fig. 47 2) Remove the ring nut. - OR replacement: Replace the ORs (code G10051V - ARAG spare parts catalogue). 3) Refit the sensor housing block ensuring that the fork is correctly inserted in the ring nut. Fig. 48... -
Page 20: Technical Data
TECHNICAL DATA Data Min. Max. Default Notes Calibration Manual calibration 50,000 The alarm can be deactivated Min. flowrate alarm 99999.9 l/min. setting the value "OFF" Flowrate alarms The alarm can be deactivated Max. flowrate alarm 999999.9 l/min. setting the value "OFF" Brightness 100% Display... - Page 21 Notes...
-
Page 22: Guarantee Terms
GUARANTEE TERmS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 day (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Centre operating at the moment the request for intervention is made. - Page 23 C o n f o r m i t y D e c l a r a t i o n ARAG s.r.l. Via Palladio, 5/A 42048 Rubiera (RE) - Italy P.IVA 01801480359 Dichiara che il prodotto descrizione: Flussometro a palette...
- Page 24 Only use original ARAG accessories and spare parts, to maintain safety conditions foreseen by the constructor. Always refer to the ARAG spare parts catalogue. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...
