9. tHErMaL ProtEctIonS

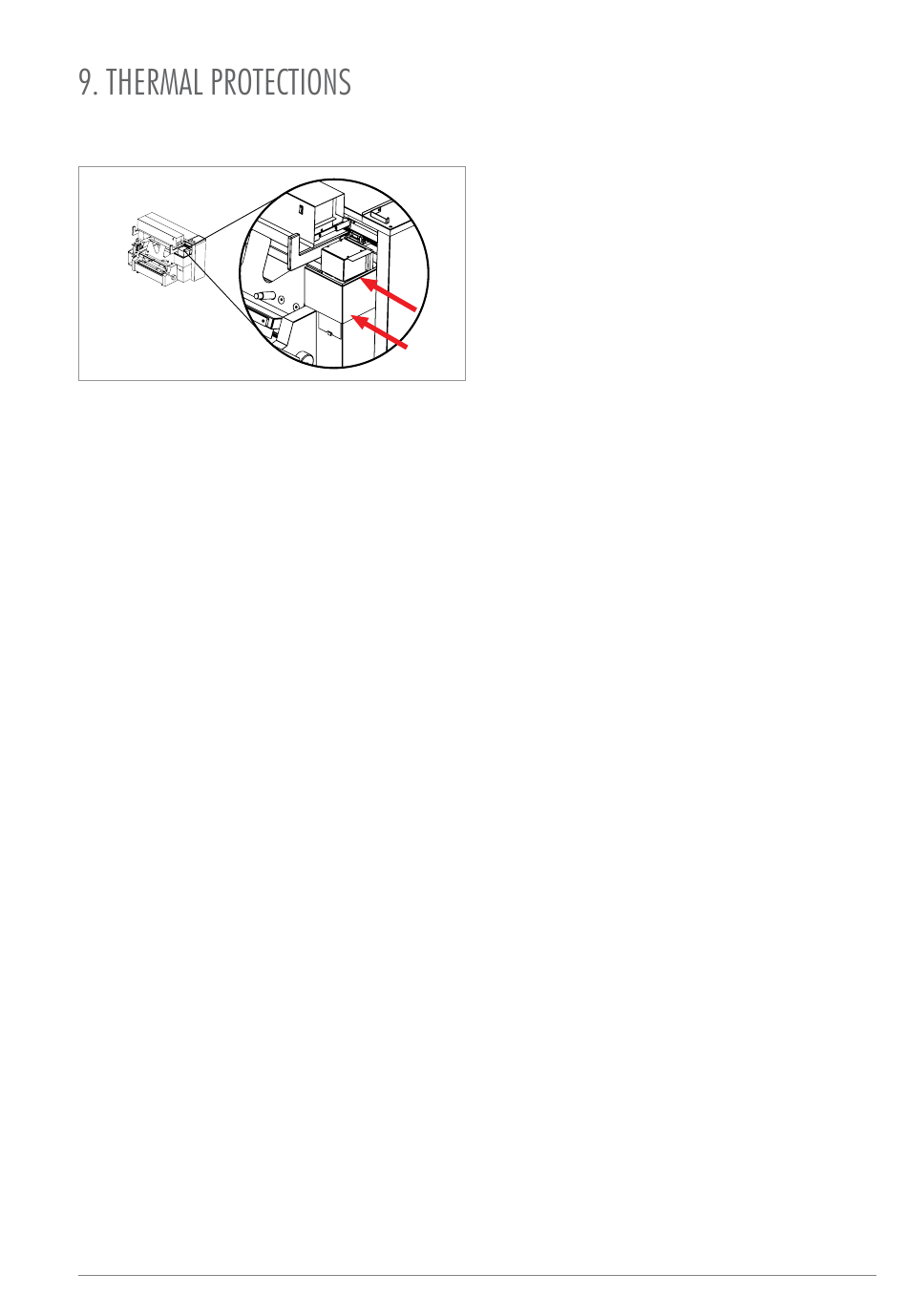

Figure 9-1 thermal casing and heat shield
DRAFT
tHerMal casIng
• the machine is delivered with a separate
• only touch or move the thermal casing covers
• the casing cover is designed to protect the user
• the thermal casing must be removed to open

Heat sHIeld

• the machine is delivered with a separate front
• the purpose of the front heat shield is to protect
• the front heat shield should always be installed
Fastbind PUREVa Xt UsER manUal | v 1.0 | © maping Co 2014
14
thermal casing cover for the glue cartridge.
by the handles. all other surfaces are very hot.
from the hot surfaces inside the glue cartridge/
heating dock
the glue tank cap or when installing or removing
the glue cartridge
heat shield.
the user from hot parts and hot glue drops.
with the following exceptions:
o when the heat shield needs to be removed
temporarily to install or remove the glue
cartridge or to remove or add drop trays
