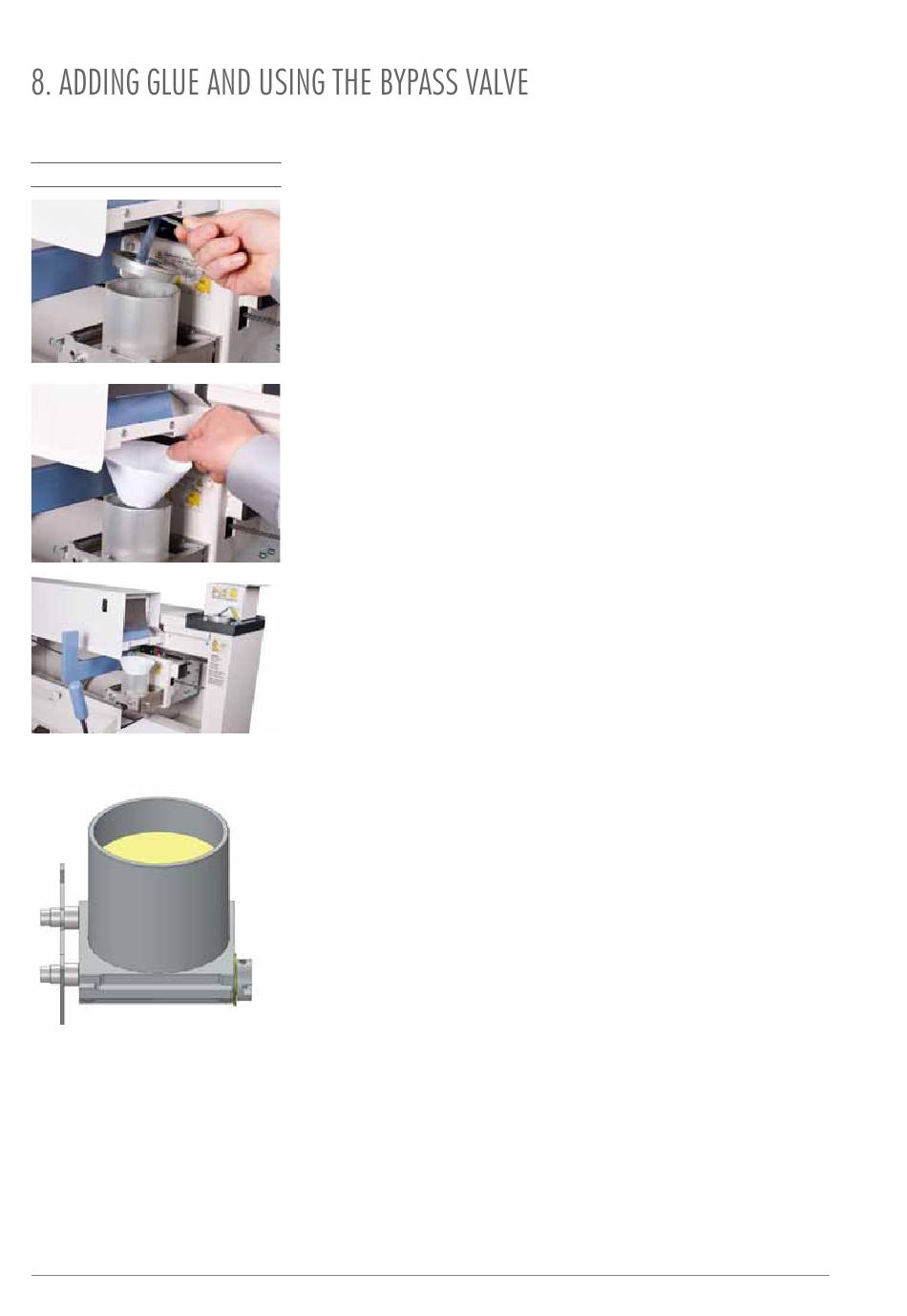

8. addInG GLuE and uSInG bYPaSS VaLVE
adding glue
DRAFT
• !! IMportant!! ensure that the fume extraction device is
connected and switched on
• lift the thermal case cover and place it in the designated area.
o warnIng!
▪ do not toucH any Hot surFace at any tIMe or
you rIsk InJury
▪ use only the glue cap handle to move the glue cap.
• Move the heating dock sideways under the fume extractor bypass
vent using the applicator handle , and open the vent
• remove the cap from the cartridge with the cartridge cap hook
and place the cap on storage tray.
o warnIng!
▪ the glue cartridge cap is hot! do not toucH any
Hot surFace at any tIMe or you rIsk InJury
o warnIng!
▪ Hot pur glue emits fumes which can be harmful if
inhaled. before removing the cap, ensure that
- the externally connected fume extractor is on and
operating
- and the glue cartridge is securely connected in the
heating dock, positioned under the bypass vent, which
must be in the open position.
• Install the filling funnel on top of the glue cartridge.
o warnIng!
▪ the glue cartridge is hot! do not toucH any Hot
surFace at any tIMe or you rIsk InJury
• Add more glue, maximum filling level 2/3 of the cartridge height,
see the picture.
o warnIng! do not oVerFIll
▪ risk of injury !
▪ risk of machine failure!
• Remove the filling tunnel
• replace the cap on the glue cartridge, using the cap tool.
• Move the heating dock back to home position
• replace thermal casing covers
• close the vent
• wait a minimum 10 minutes before resuming normal operations
