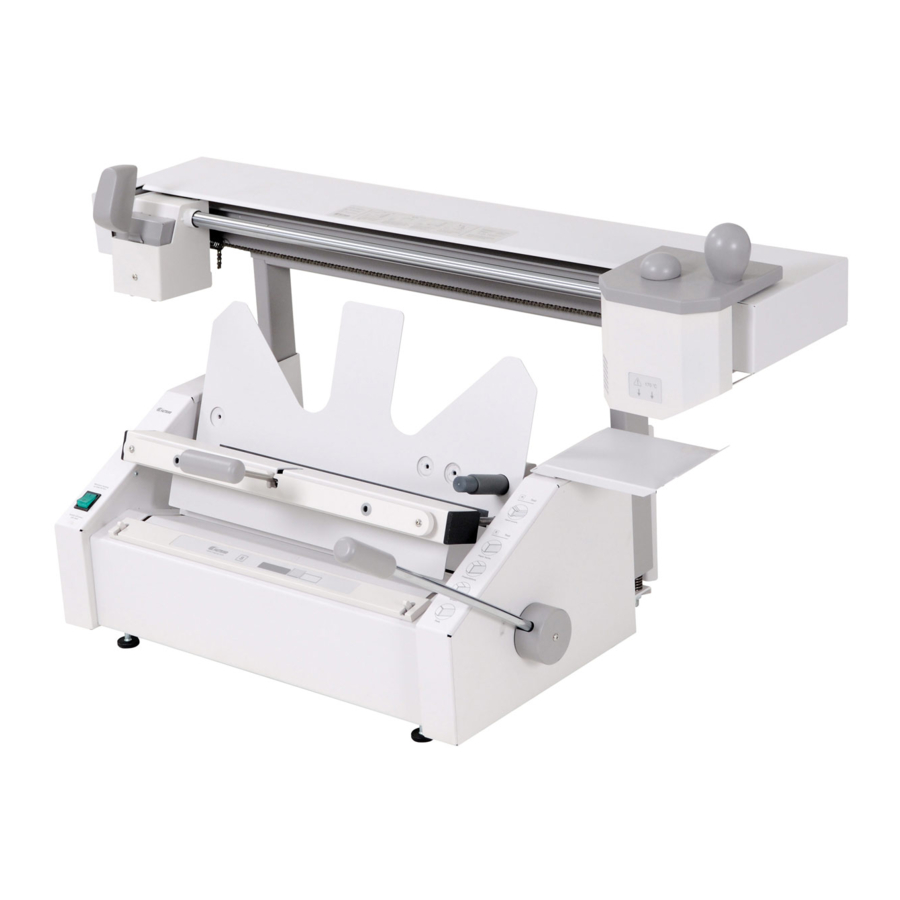

ELITE XT - HOW TO INCREASE CLAMPING FORCE
INSTRUCTIONS

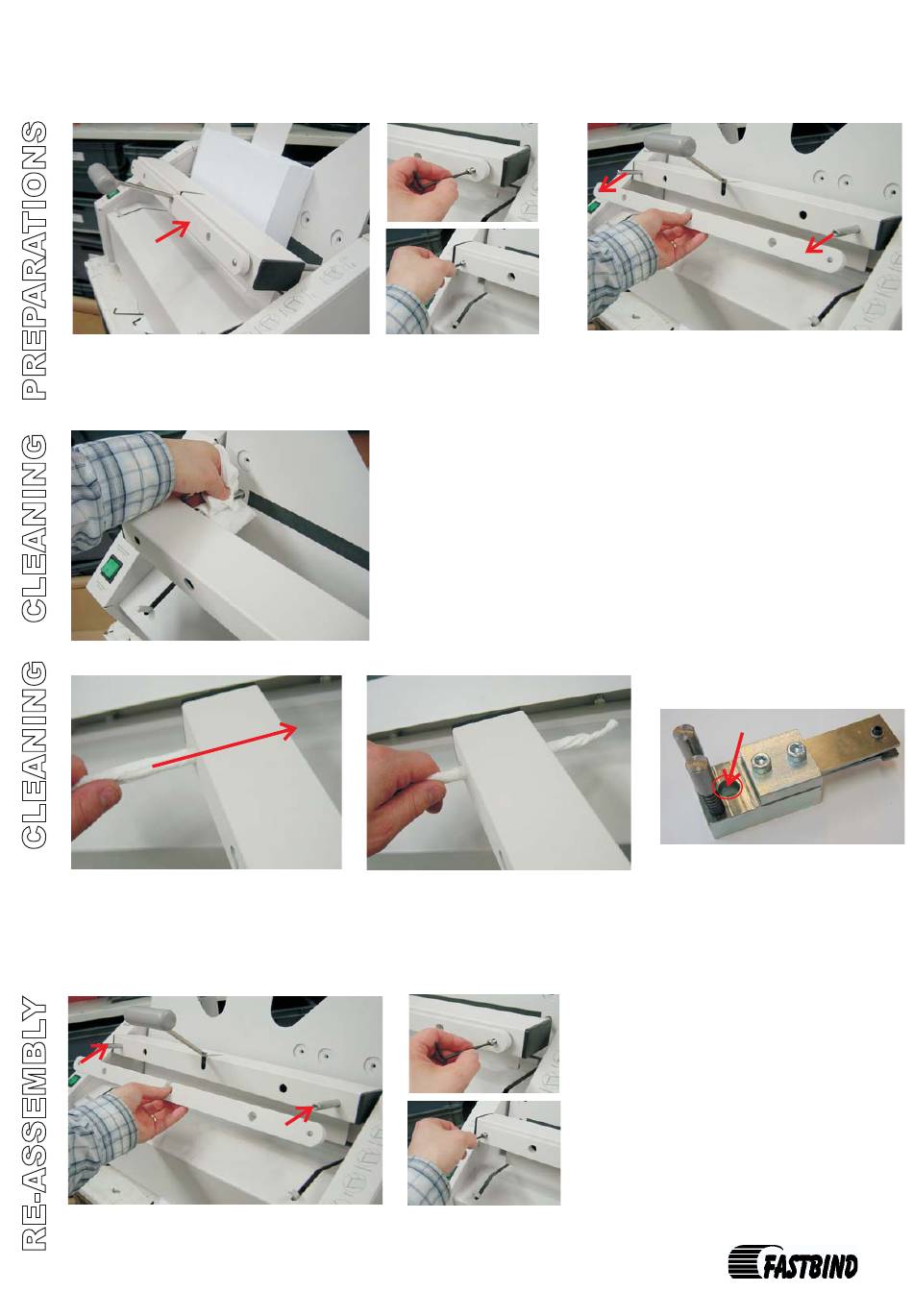

1) REMOVE SUPPORT rod. Open to screws with hexagonal key.
3)
CLEAN BOTH LOCKING UNITS (inside the clamp)
and lubricants. Clamp works the best with none or VERY little
amount of oil. Use solvent if necessary.
4) ATTACH SUPPORT ROD and fasten screws.
2)
CLEAN GUIDE RODS
Remove clamp from guides if necessary.
Clamp works optimally with VERY little amount
of oil. Use solvent for cleaning if necessary.
from oil
Page 1 of 3
from oil or lubricants.
Locking unit
(Inside the clamp)
Area to be cleaned is
shown here: precision
hole.
