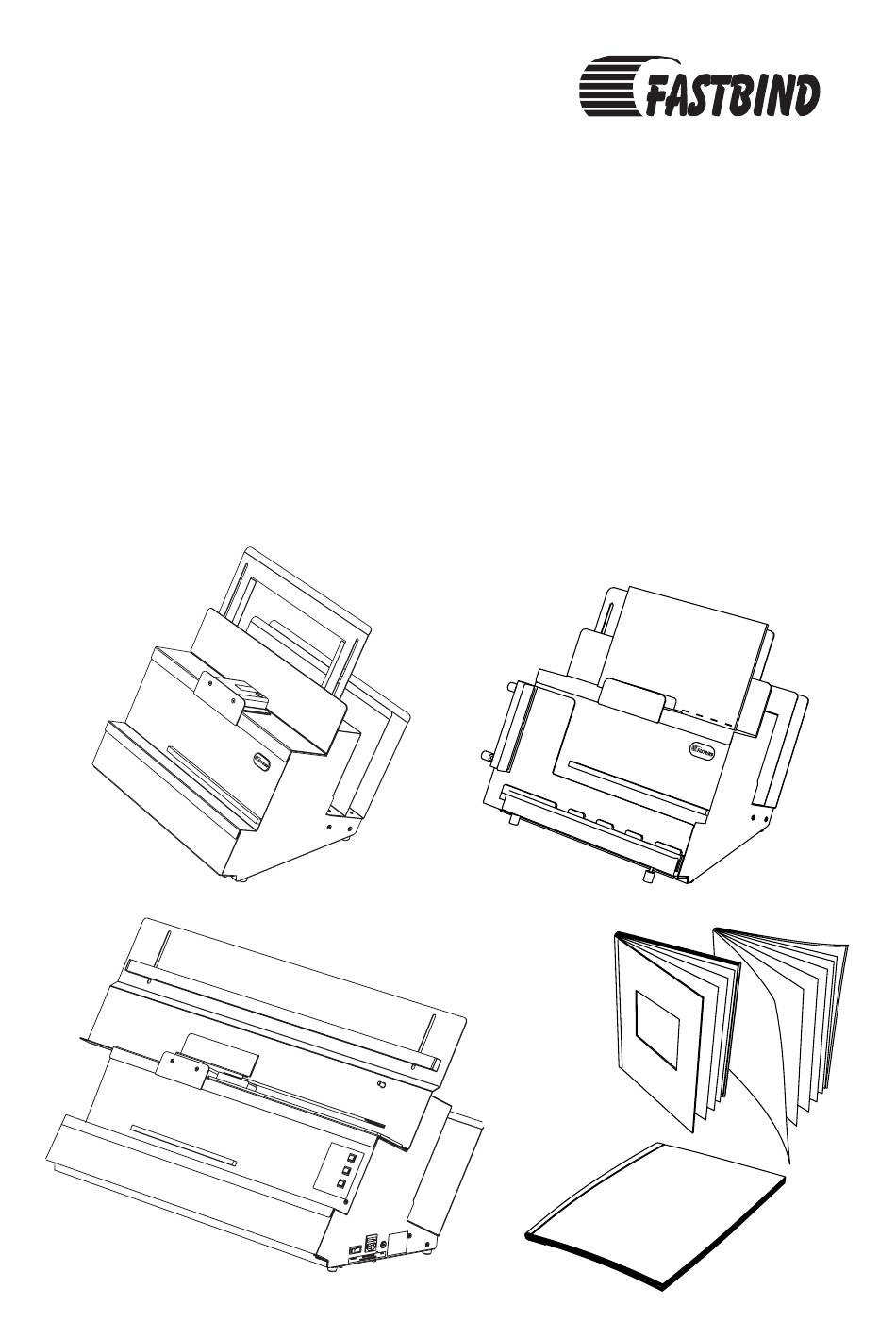

- Page 1 Versatile Binding Machine BooXTer Uno BooXTer Duo BooXTer Trio USER MANUAL...
- Page 2 FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 3: Table Of Contents
11. HOW TO ADJUST THE COVERING UNIT 12. HOW TO MOUNT THE HARD COVER 13. HOW TO MOUNT THE SOFT COVER 14. TROUBLESHOOTING 15. INTELLECTUAL PROPERTY RIGHTS AND WARRANTY 14. DECLARATION OF CONFORMITY FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 4 FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 5: Introduction
You can bind books with photo paper and coated stock as easily as normal copy paper. The result is always a strong, square and clean bind. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 6: Specifications
Package dimensions (W x D x H) 109 x 58 x 62 cm / 42.6 x 22.7 x 24.4 inches Weight Net 26 kg / 57 lbs Approvals CE 1) One No. 10 cassette included 2) Maximum thickness depends on paper material properties FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 7: Main Parts And Controls
1. Fixed side guide 2. Adjustable side guide 3. Adjustment screws 4. Adjustable bottom guide 5. Adjustment screws 6. Fixed bottom guide 7. Cover setter back support FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 8 14. AC IN connector and main fuse 15. Foot pedal connector 16. Type plate and serial number 17. Screws (shelf) 18. Supply shelf 19. Thumb screws Side view, front FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 9: Installation
- turn the supply shelf around and fasten it with screws Back view COVER SETTER ACCESSORY (BOOXTER UNO AND TRIO) Fasten cover setter with two screws using allen key. BooXTer Uno BooXTer Trio FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 10 4. INSTALLATION STAPLE CASSETTE INSTALLATION & REMOVAL Pull the safety cover out. Press the cassette from the sides and insert/remove. Replace safety cover. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 11: Supplies
Fastbind Fotomount end sheets refers to different product. BooXTer Uno/Duo/Trio HARD COVERS Hard covers are available in different sizes, with and without window. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 12: Safety
Use only original Fastbind accessories and spare parts approved by the manufacturer to ensure that the unit can be operated safely. For service and maintenance, contact your Fastbind authorized service outlet. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 13: Good To Know
Handle the stapling head gently; do not remove the pre-bent staple. This could cause permanent damage to the cassette. Before transportation, remove the cassette from the machine and store it separately. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 14: How To Bind Your Book (Booxter Uno/Duo)
Place a strip of suitable length in the position deck and align it in front of the paper block. Make sure the silicon paper is visible and the glue-free area is on the bottom. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 15 IF you finalize binding by cutting! Move the block and repeat stapling at regular intervals. Repeat the stapling in the opposite direction. Your block is now bound. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 16: How To Bind Your Book (Booxter Trio)
Place a strip of suitable length in the position deck and align it in front of the paper block. Make sure the silicon paper is visible and the glue-free area is on the bottom. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 17 - Unscrew paper guide to remove it. STOP - Push carriage from left side to turn it away. (PEDAL) - Now you can use wider formats. A4 / LTR) FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 18: How To Wrap The Strip
Wrap the strip firmly around the spine against the back cover. To finish the wrapping, press out any possible air bubbles away and your document is ready. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 19: How To Adjust The Covering Unit
Keep the front edge of the hard cover against fixed side guide and turn thumb screws to move stapled block until it touches the cover spine (see the detail picture). View from top FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 20: How To Mount The Hard Cover
Place the stapled paper block on the adjustable bottom guide, and slide it against the adjustable left guide. Peel the silicon paper half way. Leave silicon paper half-way attached Fold the silicon paper. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 21 Press the cover against the adhesive. Turn the book around. Repeat steps 3-6. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
- Page 22 Peel the silicon paper all the way off. Flip the book around and peel off the silicon paper from the other side. Press the cover against the adhesive. Your book is ready. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 23: How To Mount The Soft Cover
4. 230 mm = A + C + 1 mm +B (opening crease) Crease the soft cover from picture side. Lower down the adjustable bottom guide to create a right angle where the soft cover is level. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... - Page 24 Press the book from the spine to hold it and peel the silicon paper all the way off. To finish the wrapping, press the possible air bubbles away. Your soft cover book is now ready. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
-
Page 25: Troubleshooting
Machine does not fit in the box (transportation). - Supply shelf has to be turned around. See the installation chapter. Cannot jog the pages. - Check that paper guide is installed. FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 26: Intellectual Property Rights And Warranty
Maping Co CONTACT INFORMATION Kuusiniemi 10, FIN-02710 Espoo, FINLAND Tel. +358 9 562 6022, Fax +358 9 562 6215 Email: support@maping.com FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010... -
Page 27: Declaration Of Conformity
IEC 61000-4-5 IEC 61000-4-6 Manufacturer: Maping Co Kuusiniemi 10, FIN-02710 Espoo FINLAND Tel. +358 9 562 6022 Fax: +358 9 562 6215 Espoo 12.7.2010 Lauri Huotari, Managing Director FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010...
