Fastbind Secura, Elite, Optima, Ultra
SERVICE BULLETIN
This bulletin describes how to adjust clamp holding
capability (locking units) in Fastbind Secura, Elite,
Optima and Ultra.
Symptoms: clamp yielding and pages drop down
when glue applied or clamp not holding well. If too
tight, clamp difficult to move along guide rods.

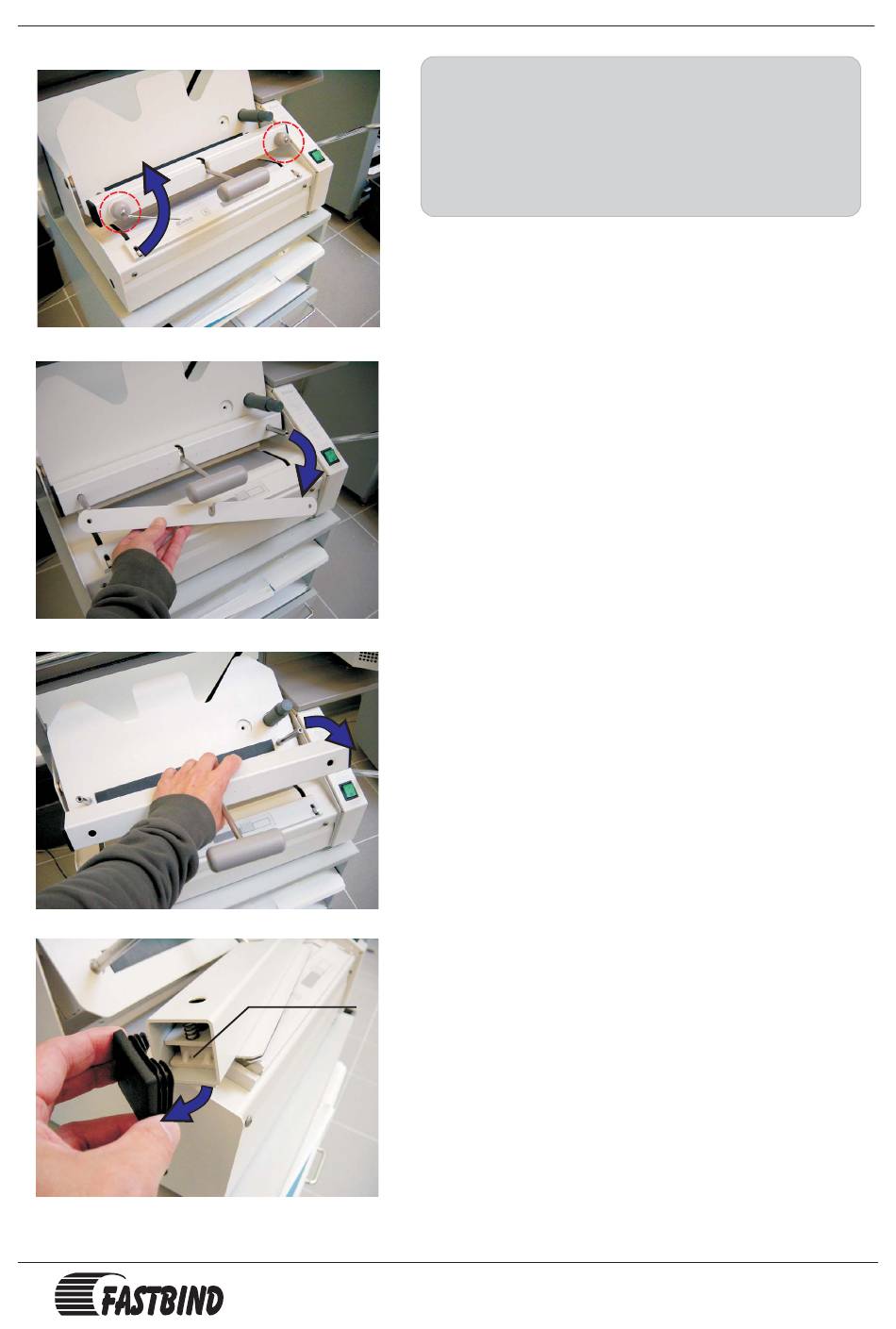

To access adjustment screws, clamp have to be
opened.
1. Open screws and remove knobs
2. Remove guide support bar by pulling it off
3. Pull the clamp off
4. Remove end caps from both sides to get access to
locking units (one on each side)
Locking unit
15.6.2009
TIGHTENING CLAMP
www.maping.com
Advertisement
Table of Contents
Related Manuals for Fastbind Secura
Summary of Contents for Fastbind Secura
- Page 1 Fastbind Secura, Elite, Optima, Ultra SERVICE BULLETIN This bulletin describes how to adjust clamp holding capability (locking units) in Fastbind Secura, Elite, Optima and Ultra. Symptoms: clamp yielding and pages drop down when glue applied or clamp not holding well. If too tight, clamp difficult to move along guide rods.
- Page 2 Fastbind Secura, Elite, Optima, Ultra SERVICE BULLETIN 5. Pull both locking units out 6. Check condition of holes on both sides. Clean if glue residue or dirt is visible. Red arc points functionally important areas. Adjusting tightness: turn hex key:...
- Page 3 Fastbind Secura, Elite, Optima, Ultra SERVICE BULLETIN 9. Re-assembling clamp: Turn clamp upside down so that the handle points to you. Note the position of eccentric cams inside the clamp. 10. Slide locking unit with spring into the clamp pipe.
- Page 4 Fastbind Secura, Elite, Optima, Ultra SERVICE BULLETIN Clamp holds OK Clamp yields from left - papers are against bottom plate - papers above the plate - re-tighten the clamp 15.6.2009 TIGHTENING CLAMP www.maping.com...
