EMG ZW Set Installation Information

INSTALLATION INFORMATION

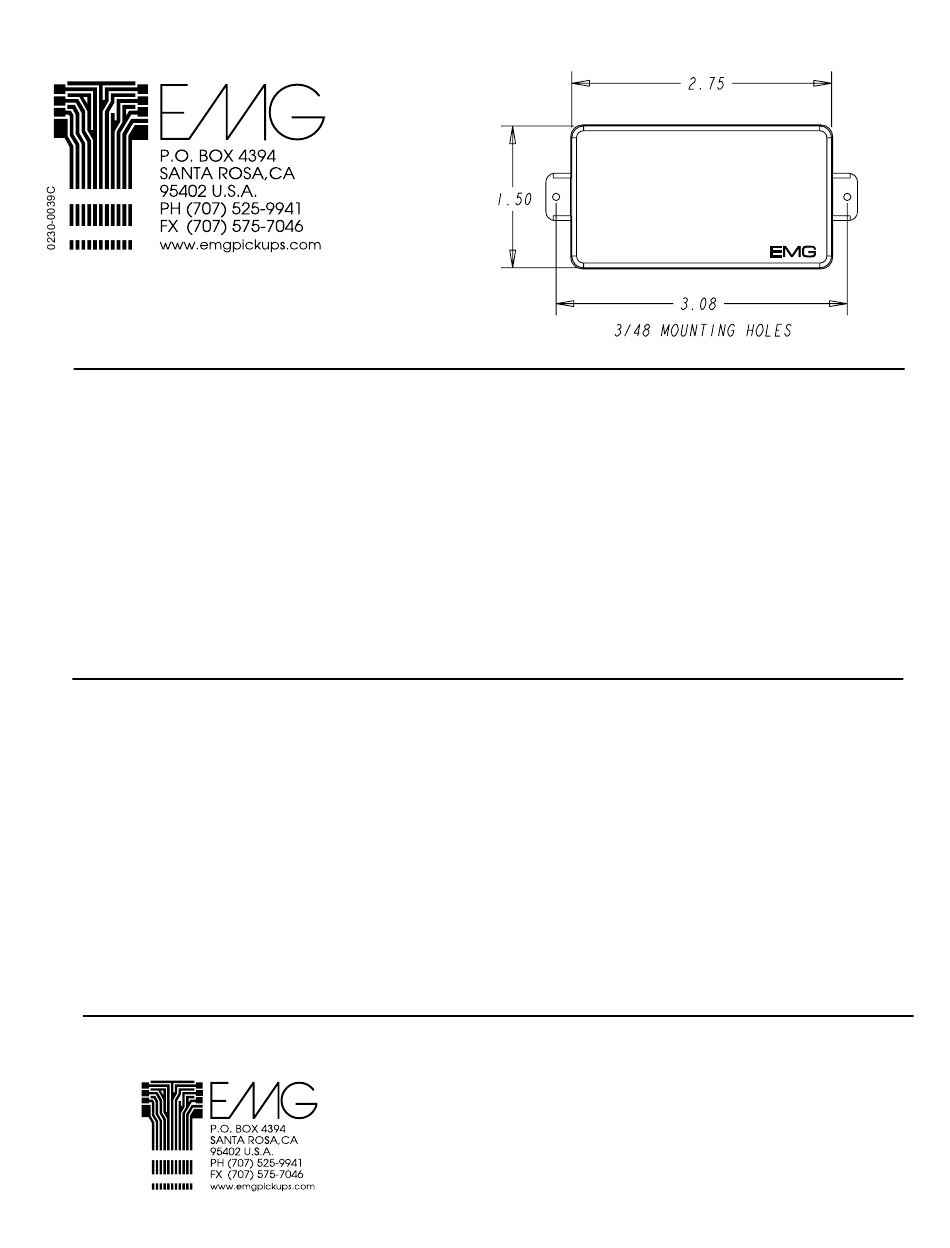

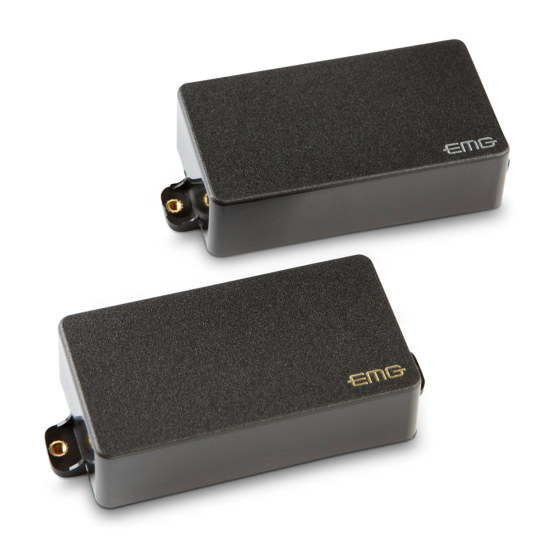

EMG Model: EMG-ZW
SPECIFICATIONS:
Preferred Pickup Placement
L o g o C l o r o
Magnet Type
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise@ 60Hz
Output Impedance (Kohm)
Current@ 9V (Microamps) (System)
Battery Life (Hours) (System)
Maximum Supply (Volts DC)
Note:
Magnet Type: A (Alnico)
C/S (Ceramic/Steel)
IMPORTANT INSTALLATION NOTES:
1) Only one battery is required for the pickups,
and any active accessories such as the SPC,
RPC, EXG, AB, PA-2, and Pi-2.
2) Use an Alkaline or Lithium battery for longest life.
3) The controls included with EMG Systems are 25K
Ohm, Audio Taper. This value of control is required
for the system to work correctly.
4) When installing EMG Active Pickups, DO NOT connect
the bridge ground wire. This wire is usually soldered
to a volume or tone control casing and goes to the
bridge. This wire grounds the strings and uses them
and your body as a shield against hum and buzz. It
also creates a shock hazard. EMG Pickups are
MODEL:
81 85
Bridge Neck
Silver Gold
C/S Alnico
2. 2.00 2.45
2.0 2.1
4.5 4.5
- 91 -89
10 10
160
1500
27
Warranty:
All EMG Pickups and accessories are warranted for a period of two years. This warranty
does not cover failure due to improper installation, abuse or damage. If upon examination the
pickup is determined to be defective, a replacement will be made at no charge. Warranty
replacement products are covered by this same warranty. This warranty covers only those
pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
shielded internally and DO NOT require string
grounding. This greatly reduces the possibility of
reverse polarity shock from microphones and other
equipment
5) EMG Active Pickups have very little magnetism
compared to passive pickups. We recommend
you adjust the pickups as close to the strings as
possible. Sustain and string movement will not be
inhibited by close adjustment.
6) If your installation is different from the diagrams in
these instructions or you need additional diagrams
visit our website: emgpickups.com for a complete
listing of available diagrams.
© Copyright EMG Inc. 2007
Updated 1/10/07
