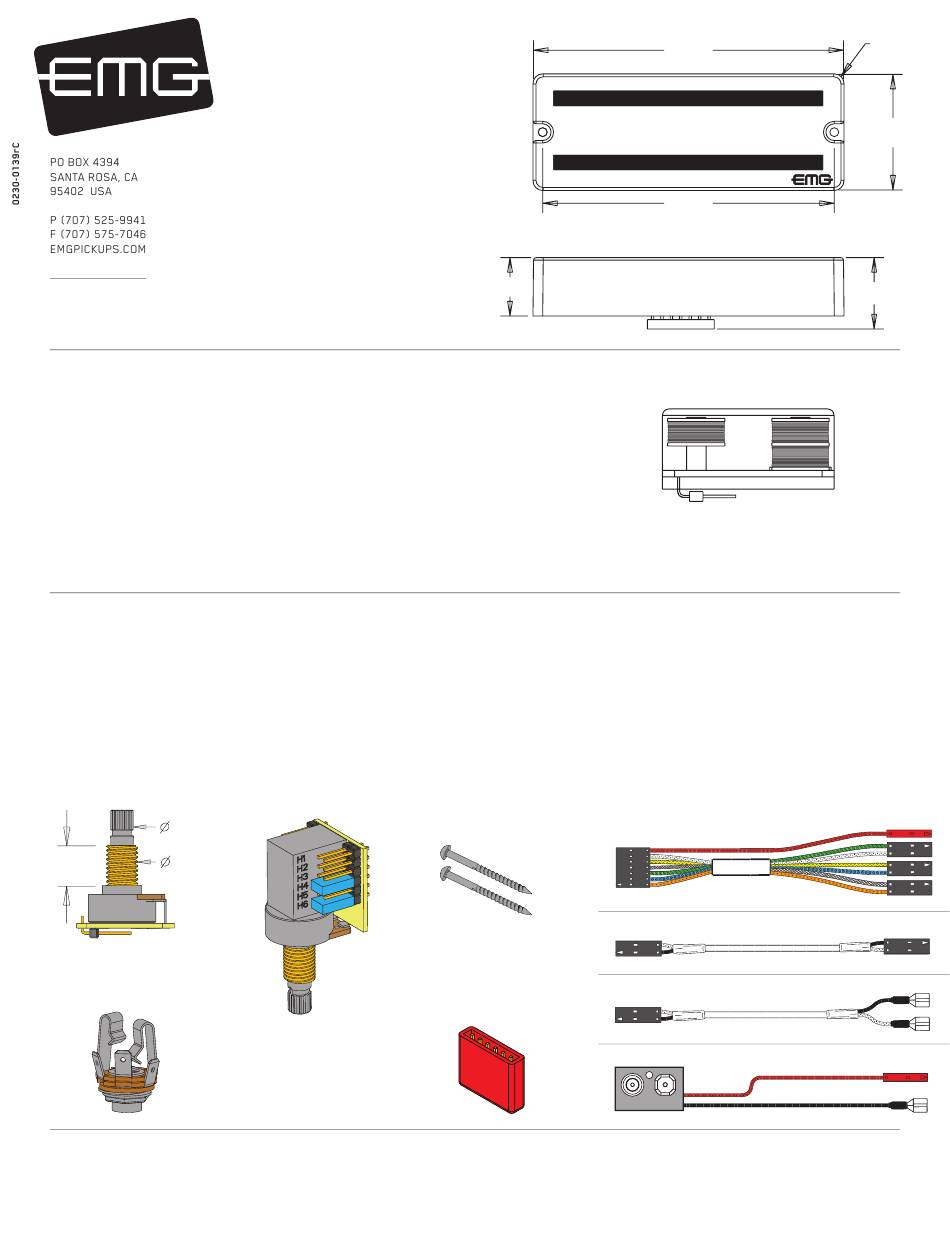

INSTALLATION INFORMATION
EMG MODEL: 40-TW
SPECIFICATIONS:
Logo Color
Magnet Type*
Resonant Frequency (KHz)
Output Voltage (Finger, Thumb)
Output Voltage (Thump)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
* Magnet Type CS (Ceramic and Steel)
Installation notes:
The EMG-40-TW has a variety of ways it can be wired into a bass. The diagrams included are limited to the most popular because of space.
The additon of the plug-on PC Board on the Push-Pull Pot adds further flexibility as you will see in the diagrams. We suggest you look fully at the
installation diagrams included in this sheet along with the B245 Pickup Buss data sheet included in this package before beginning your installation.
The Push-Pull Pot allows you 2 options as a volume control as well as 2 other options using the pot as a tone control. If you don't see a diagram that
fits your instrument directly, or you want to do something completely different, contact our technical department and we'll create a diagram you can
follow for your installation. Certain limitations apply...
Included with each pickup:
1 TONE CONTROL (25K)
.235
(6)
SPLIT
.390
.310
(8)
(10)
STEREO OUTPUT
JACK
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
MODEL:
40-TW
Single-Coil
Copper
C/S
5.40
1.00
3.00
-107
10
160
1500
27
1 TW P/P SWITCH
W/POT (25K)
ADJUSTMENT SCREWS
MAXIMUM RECOMMENDED STRING WIDTH 3.00" (76.2)
.125 (3.17) DIA. MOUNTING HOLES
.750 (19)
Dual-Coil
2.50
2.00
4.50
-109
10
In Dual-coil mode, coils C1 and C2 are active.
In Single-coil mode, coils C2 andC3 are active.
TW PICKUP CABLE 15" (38cm)
2 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY
BUSS
BATTERY CABLE 7" (18cm)
- 9V +
4.000
(101.6)
3.750
(95.2)
EMG-40-TW (SIDE VIEW)
C1 C2
C3
R .125
(3.17) TYP
1.500
(38.1)
.880 (22.3)
Advertisement
Table of Contents
Related Manuals for EMG 40-TW
Summary of Contents for EMG 40-TW
- Page 1 Installation notes: The EMG-40-TW has a variety of ways it can be wired into a bass. The diagrams included are limited to the most popular because of space. The additon of the plug-on PC Board on the Push-Pull Pot adds further flexibility as you will see in the diagrams. We suggest you look fully at the installation diagrams included in this sheet along with the B245 Pickup Buss data sheet included in this package before beginning your installation.
- Page 2 ORANGE HUMBUCKING ON: DOWN POSITION SHIELD The Push-Pull Switch included with the EMG-TW allows you to choose between SINGLE COIL ON: UP POSITION two internal pickups of the EMG-TW, single-coil and dual-coil. The Push-Pull Pot has two seperate sections: The Switch and the pot, described below.
- Page 3 Pickup Buss, (H1 or H2) 4) Install the EMG Volume and Tone Controls and tighten them in. 4) Install the EMG Volume and Tone Controls and tighten them in. 5) Then install the pickups keeping any excess cable under the pickup...
- Page 4 BRIDGE PICKUP If your instrument has a selection switch: Shown at the right is the EMG B245 Pickup Buss which is used for instruments that have 2 pickups and a 3 position selection switch. If you have a selection switch and want your installation to remain solderless, you’ll need a B245 Buss.
