XR-3 TS2 Module Operation Manual
XR-3
Multi-LNB Systems

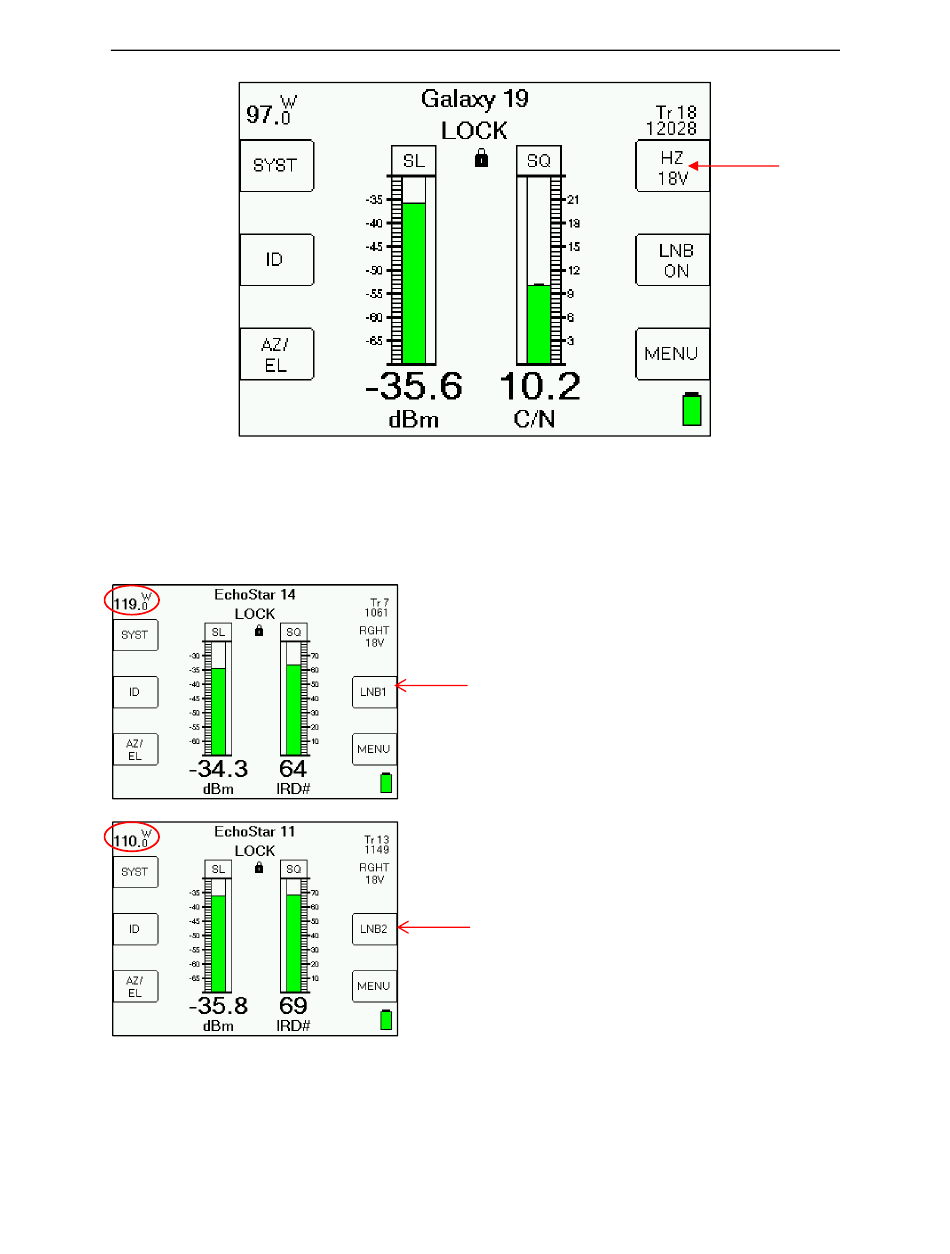

When the selected LNB system supports multiple LNBs or multi-head LNBFs via the switch
setting, the LNB ON/OFF button also controls the switch setting. Upon pressing the LNB power
soft-key, the meter sends a switch command to toggle to the next feed horn and the satellite is
automatically changed to the one normally used for that port.
Page 8 of 66
