XR-3 TS2 Module Operation Manual XR-3
The LNB system also defines a default switch type, so this selection is also normally skipped.
However, you may override the default switch type if desired.

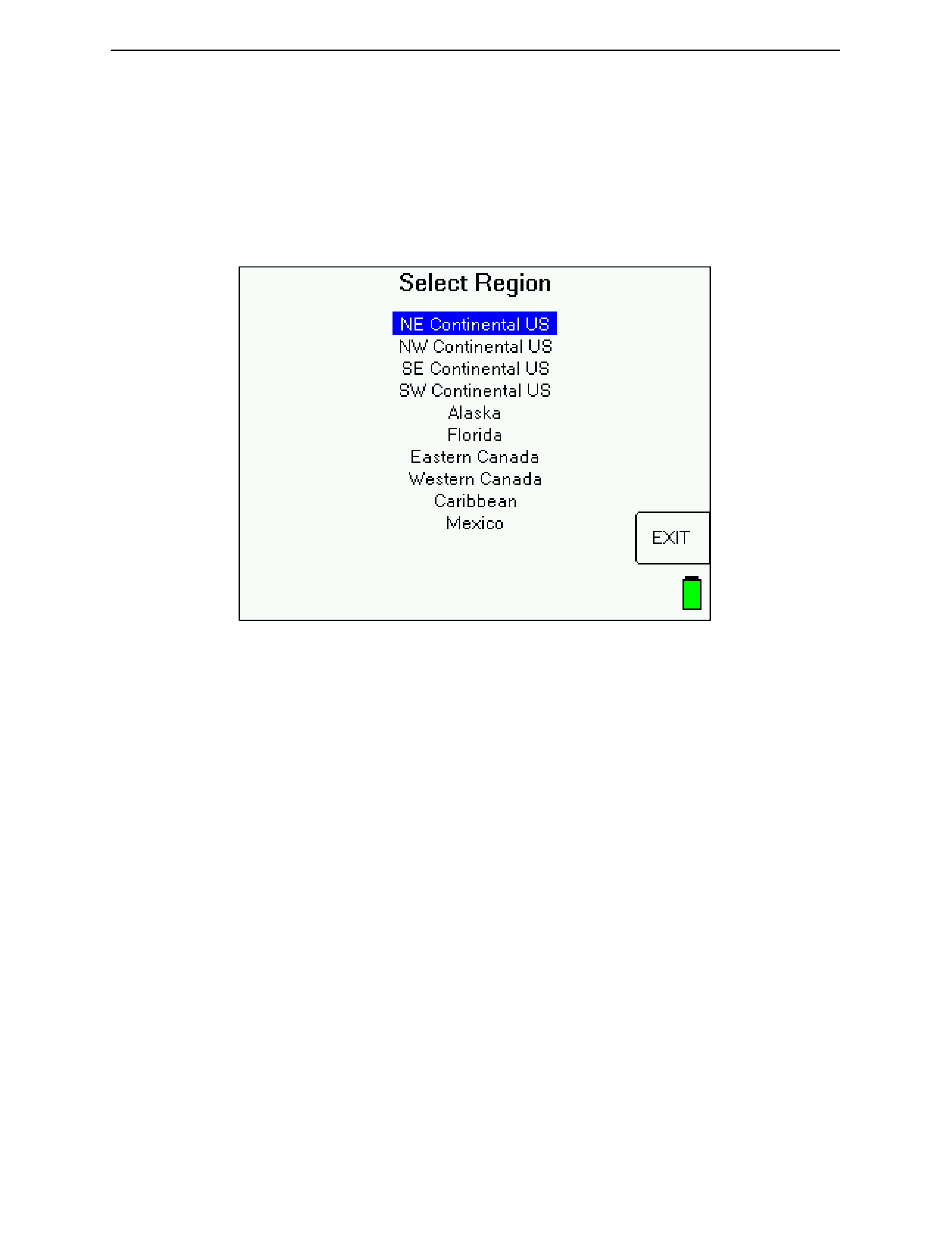

Regions

When the unit is shipped from the factory, it will have the latest information for North America
(except for the Hawaii region, which is found in the NE Pacific Field Guide) loaded into it. If you
are using the XR-3 outside of North America, you must download a different Field Guide from our
website. See the Updating chapter for details.
You must select a region within the Field Guide that better identifies the area where you will be
using the meter. If you are not sure of which region you are in, it probably doesn't matter
because there is significant overlap in the regions. For example, the NE Continental US region
extends as far south as South Carolina and the SE Continental US region extends as far north as
New Jersey.
The region selection is necessary because transponders are pointed only at certain parts of the
globe and the XR-3 will use just the transponders that are pointed at your selected region.

Services

The service selection groups the LNB/antenna systems into small sets of choices. The available
services may change with Field Guide updates.
Page 14 of 66
