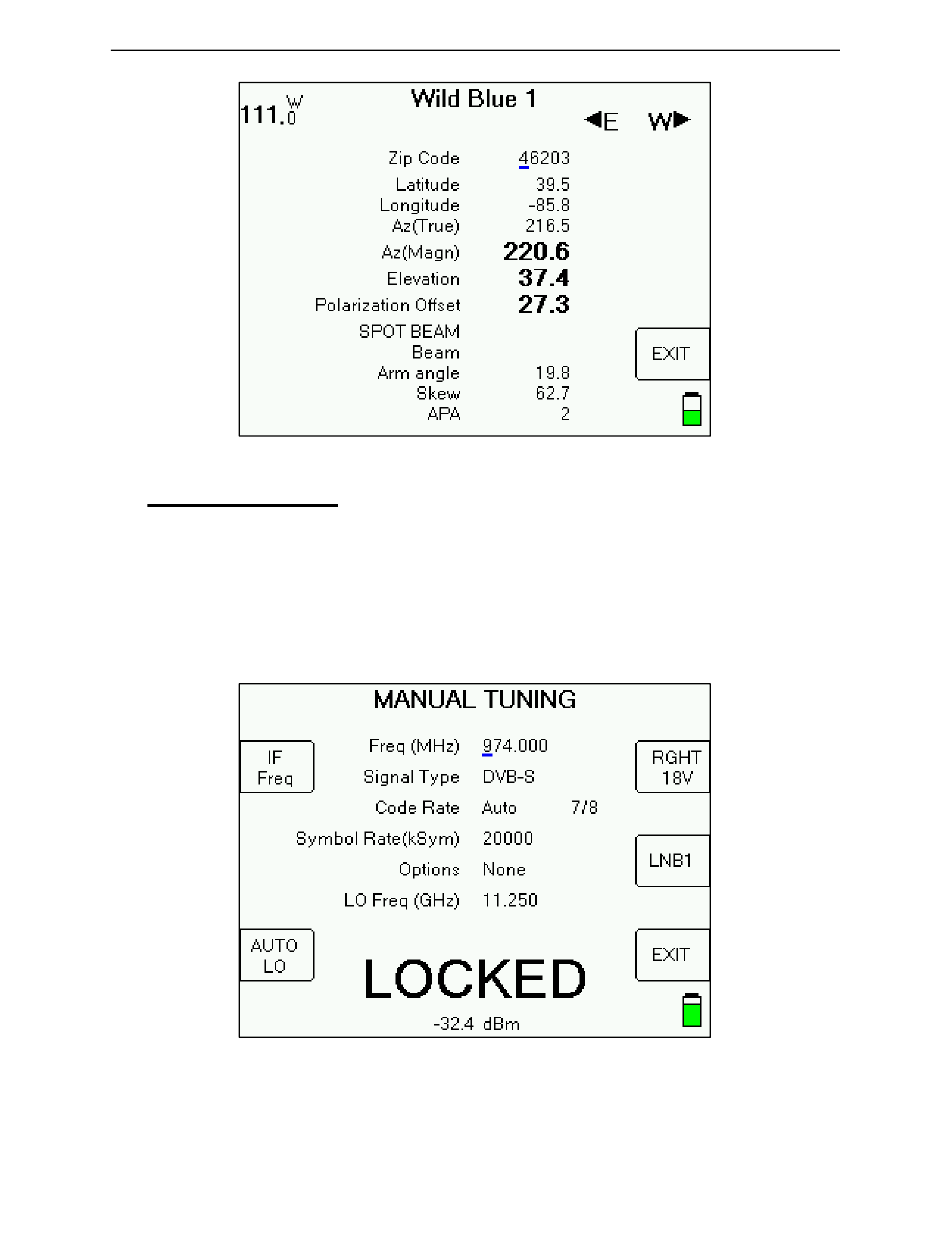

8. Manual Tuning

The Manual Tuning Screen may be useful when looking for a signal that has not yet been added
to our database and loaded into the instrument or for temporary feed transponders that aren't
always active. You can manually enter the tuning parameters. The screen will display the
locking status at the bottom. The parameter changes will be kept when you return to the Run
Screen but not saved when powering off or changing to other satellites or transponders. If you
need to permanently save a transponder to the XR-3's database, then use the Custom
Transponder feature.
