XR-3 TS2 Module Operation Manual
Allows voltage supplied by IDU / IRD to power the LNB extending the battery life of meter

However, the meter itself is always powered by its internal battery or by the external AC to DC
switching power supply while connected to AC power.
Note: In order to prevent damage to the meter's circuitry, do NOT input more than 30 volts to the
XR-3's TS2 module.

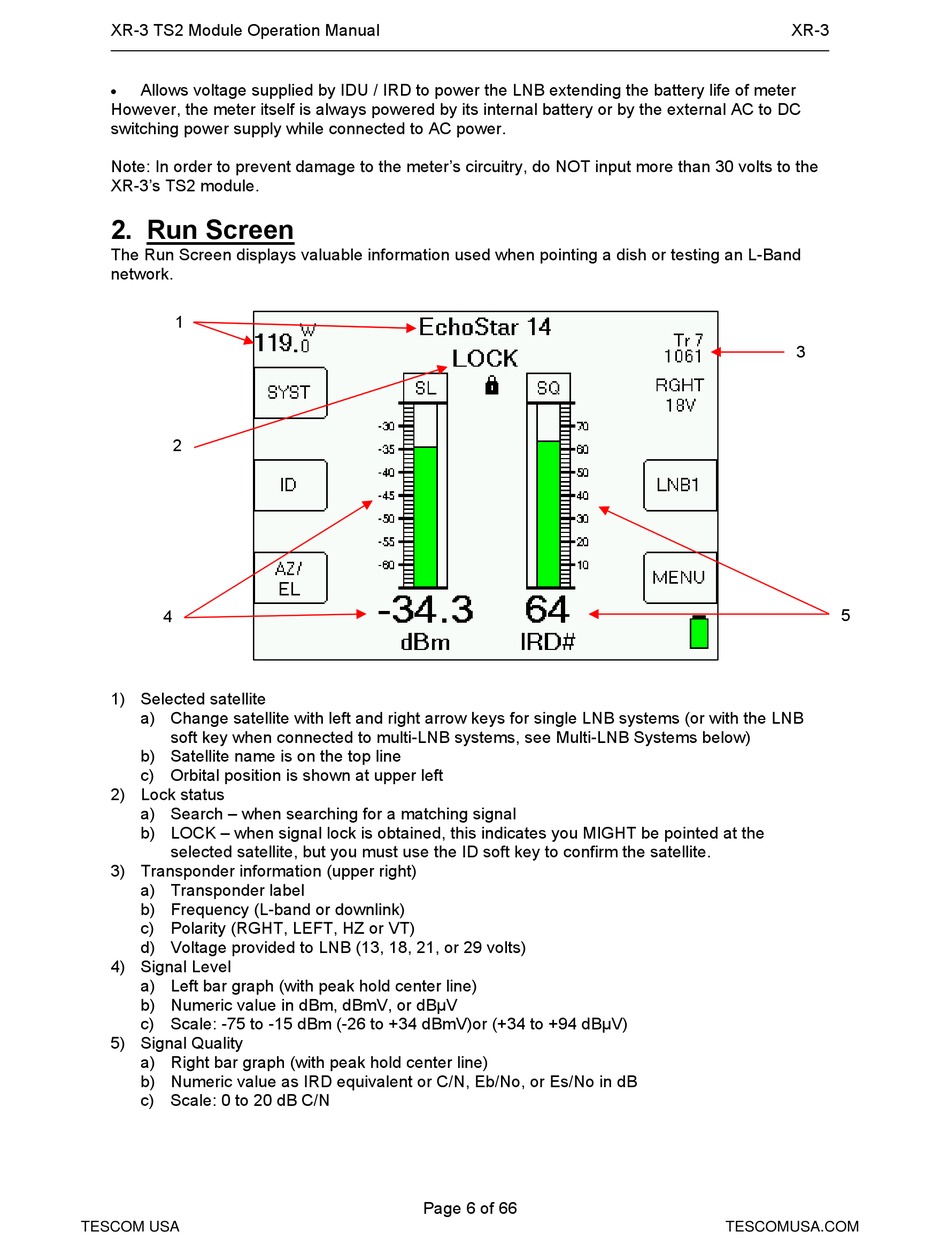

2. Run Screen

The Run Screen displays valuable information used when pointing a dish or testing an L-Band
network.
1
2
4
1) Selected satellite
a) Change satellite with left and right arrow keys for single LNB systems (or with the LNB
soft key when connected to multi-LNB systems, see Multi-LNB Systems below)
b) Satellite name is on the top line
c) Orbital position is shown at upper left
2) Lock status
a) Search – when searching for a matching signal
b) LOCK – when signal lock is obtained, this indicates you MIGHT be pointed at the
selected satellite, but you must use the ID soft key to confirm the satellite.
3) Transponder information (upper right)
a) Transponder label
b) Frequency (L-band or downlink)
c) Polarity (RGHT, LEFT, HZ or VT)
d) Voltage provided to LNB (13, 18, 21, or 29 volts)
4) Signal Level
a) Left bar graph (with peak hold center line)
b) Numeric value in dBm, dBmV, or dBµV
c) Scale: -75 to -15 dBm (-26 to +34 dBmV)or (+34 to +94 dBµV)
5) Signal Quality
a) Right bar graph (with peak hold center line)
b) Numeric value as IRD equivalent or C/N, Eb/No, or Es/No in dB
c) Scale: 0 to 20 dB C/N
