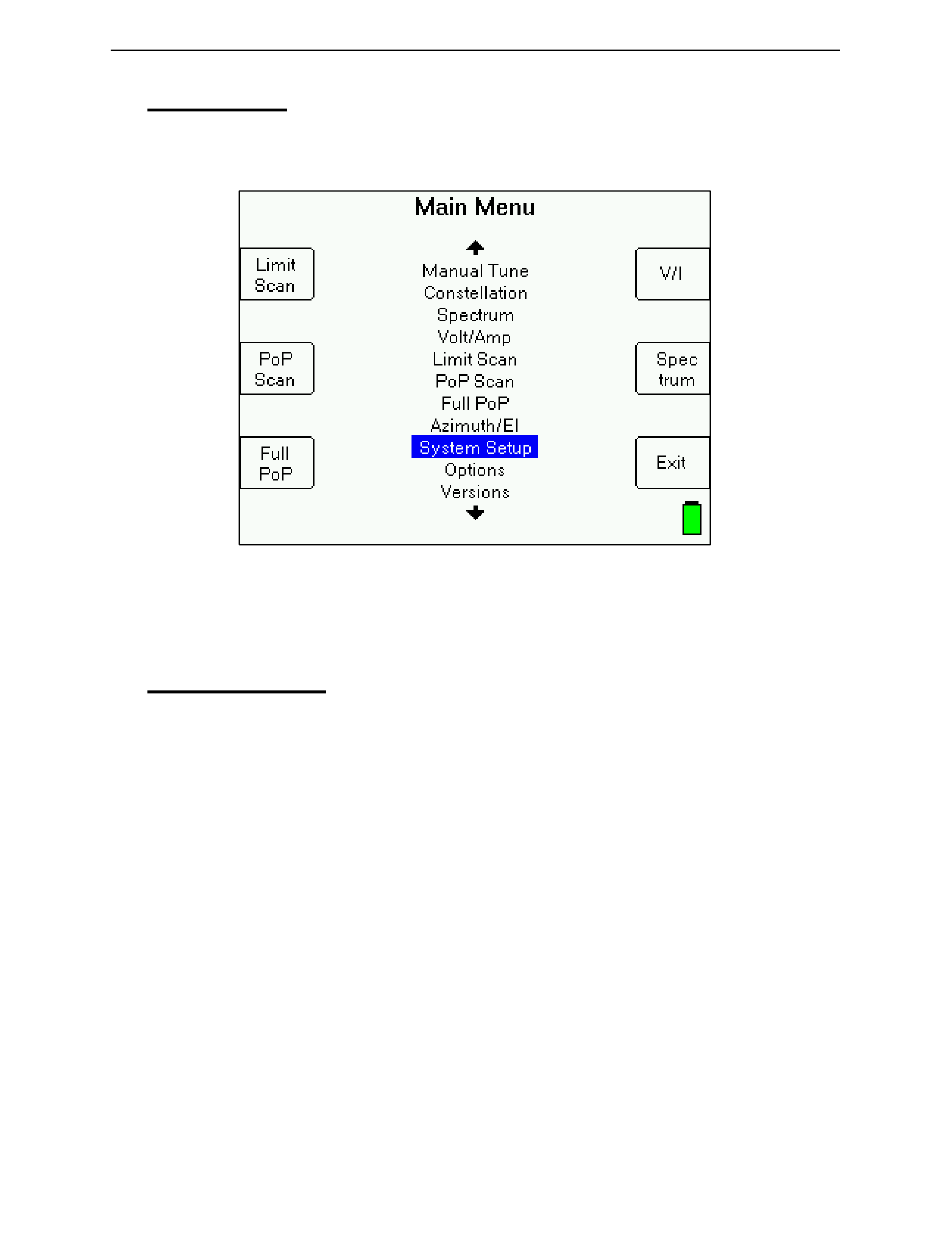

3. Main Menu

The MENU button takes you to a menu of all of the XR-3 screens. Some of these screens are
also available via soft keys from the Run Screen.
All of the functions are available on the central menu using the up/down and Enter keys. Some
functions are also available via soft keys as a shortcut. "Exit" takes you back to the Run Screen.
The functions are described in the sections that follow.

4. System Setup

You must use this screen to specify the type of system you are connected to and where you are.
This step is essential: the XR-3 calculates all frequencies based on this information and
displays only the transponders that can actually be received by the selected system in the
selected location.
To enter the System Setup, press the SYST soft-key from the Run screen or use your up/down
arrow keys to select 'System Setup' from the Main Menu and then press Enter.
