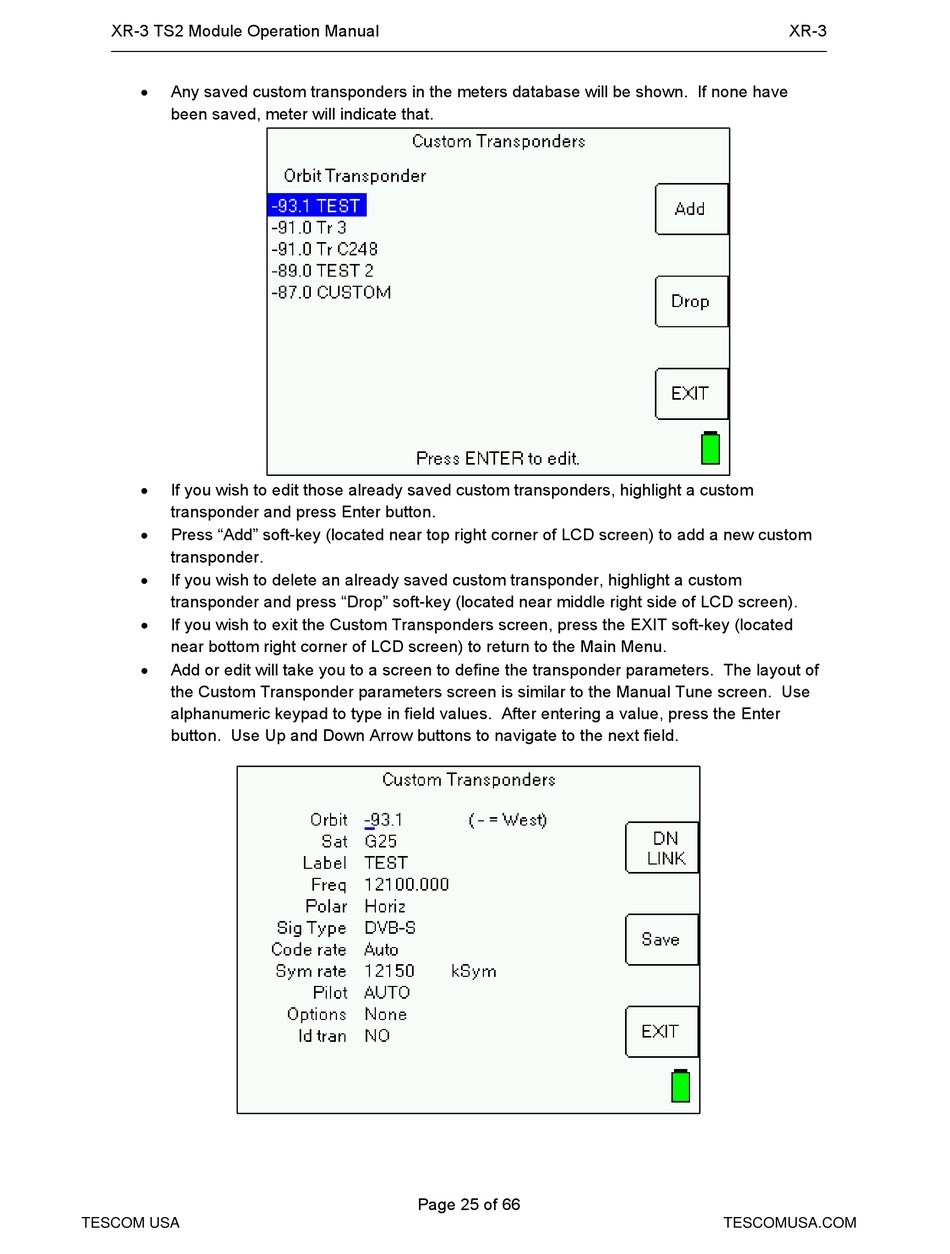

Any saved custom transponders in the meters database will be shown. If none have
been saved, meter will indicate that.

If you wish to edit those already saved custom transponders, highlight a custom
transponder and press Enter button.

Press "Add" soft-key (located near top right corner of LCD screen) to add a new custom
transponder.

If you wish to delete an already saved custom transponder, highlight a custom
transponder and press "Drop" soft-key (located near middle right side of LCD screen).

If you wish to exit the Custom Transponders screen, press the EXIT soft-key (located
near bottom right corner of LCD screen) to return to the Main Menu.

Add or edit will take you to a screen to define the transponder parameters. The layout of
the Custom Transponder parameters screen is similar to the Manual Tune screen. Use
alphanumeric keypad to type in field values. After entering a value, press the Enter
button. Use Up and Down Arrow buttons to navigate to the next field.
