John Lewis

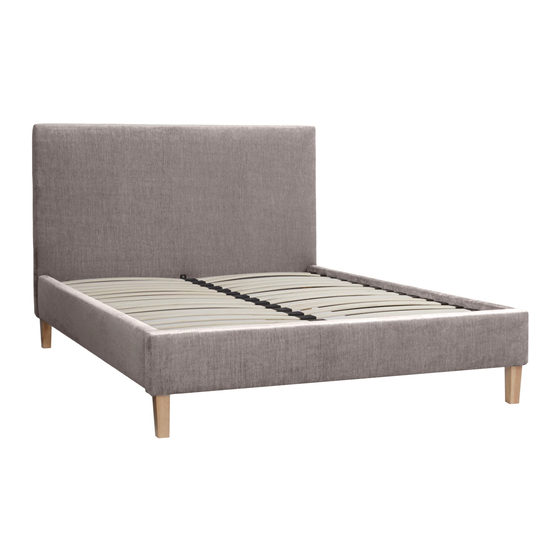

Thank you for purchasing this Emily bed. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN
LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 40 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you require any additional information or have any issues with this product please call the
John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com
Emily Bed
1/6
For product support or spare parts please call
the John Lewis Helpline;
E: mail@fwgroup-uk.com
King
T: 01244 689949
Advertisement
Related Manuals for John Lewis Emily Bed
Summary of Contents for John Lewis Emily Bed
- Page 1 John Lewis Emily Bed King Thank you for purchasing this Emily bed. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. For product support or spare parts please call the John Lewis Helpline;...
- Page 2 Fittings and parts checklist M4 Allen Key x 1 M6 X 25mm Bolt x 2 Wide Centre Caps x 8 M5 Allen Key x 1 Wide Side Caps x 16 Centre Plastic Caps x 8 Side Plastic Caps x 16 Headboard x 1 Footboard x 1 Side Rails x 2...
- Page 3 Step by step assembly instructions Step One Place Wooden Legs (7) into the holes in the underside of the Headboard (1) and Footboard (2) as per diagram below and twist into place so they are fully secured. Wooden Leg Pre-inserted Nut Head/Foot Board (7) x 4...
- Page 4 Step Three Insert Centre Rail (6) into the brackets in the centre of the Headboard (1) and Footboard (2). Push down fully and secure in place using M6 x 25mm bolt (E). Tighten bolt with Allen Key M4 (A). You can now tighten the bolts at the Side Rails from previous step (Step Two) so all fastenings are now tightened.
- Page 5 Step Four With the curved side facing upwards, insert 2 slats into a centre cap then into 2 side caps on either end(x16). (Please note the Wide Slats must be inserted with the Wide Centre Caps (F) and Wide Side Caps (G)). Repeat this process for all slats. Note: Please see the Diagram 1 below to arrange the slat with the correct system).
-
Page 6: Care And Maintenance
Care and Maintenance This Emily bed should be cleaned using a soft damp cloth and dried immediately. Do not use a very wet cloth or allow any liquid contact for a long period of time as this can permanently damage the surface.
