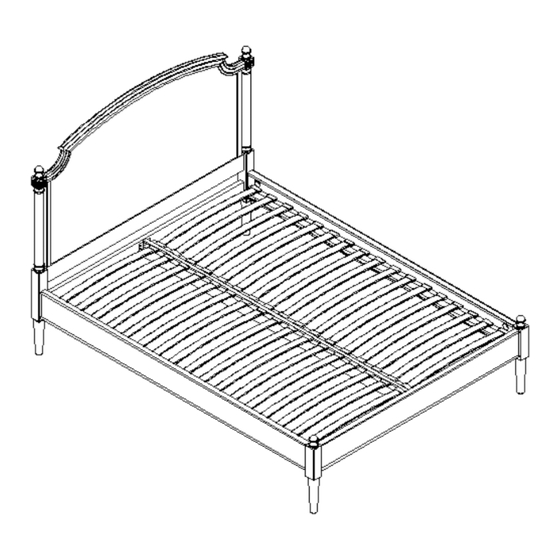

Summary of Contents for John Lewis Etienne Louis HE bed 150cm bedstead
Page 1
Necessary Tools Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the local John Lewis branch or our Customer Service Team.
Page 2
Fittings and parts checklist Headboard X1 Nut Washer X 8 Nut & Bolt(6*40) Footboard X1 Side Rail X2 Plastic Cap X 68 Centre Rail X1 Spanner X 1 Centre Rail Slat X 34 Support 16mm Screw(4*16) Bolt X 8 X 12...
Page 3
Step by step assembly instructions Step One 1. Screw the 8 bolts(A) into the headboard(1) and footboard(2), and tighten by hand. 2. Attach the centre rail supports (F) to the bottom rail of the headboard and footboard, secure using 12 16mm screws(G). Step Two 1.
Page 4
Step Three 1. Locate the centre rail (4) onto the centre rail supports. Secure using two nut & bolt (C), one each end. Step Four 1. Push fit two plastic caps (D) onto either end of the slat (5). Push fit the slat into the pre-drilled pilot holes in the side rail and centre rail.
John Lewis Etienne Range Care and Maintenance Wood Furniture The Etienne range has been sourced by John Lewis from the finest American Oak and each piece has been carefully constructed to ensure it will give you years of pleasure. The natural charactericstics of this oak range may include small cracks, knots, blemishes and grain pattern variations which all add to the natural charm and beauty of this furniture product. Each piece is unique, and for this reason no two pieces within the range will perfectly match, however there will be harmony between all the pieces you may have purchased. How to care for your wood furniture Try to avoid prolonged exposure to direct sunlight as this may alter the colour and the tone of your furniture over time. Any spillages that do happen should be wiped up immediately with a clean dry lint free cloth to avoid marking the surface of the furniture. Safety Instructions General warnings: Never drag furniture when moving it, always lift it. Periodically check all fixings to ensure none have come loose and re‐tighten where necessary. Please take care when handling or moving the furniture as careless handling may cause damage or injury. Furniture can be dangerous if incorrectly installed. Assembly should be carried out by a competent person. No liability will be accepted for damage or injury caused by incorrectly insalled or assembled furniture. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE ...
This manual is also suitable for:
Etienne louis he bed 180cm bedsteadEtienne louis le bed 150cm bedsteadEtienne louis le bed 180cm bedstead
